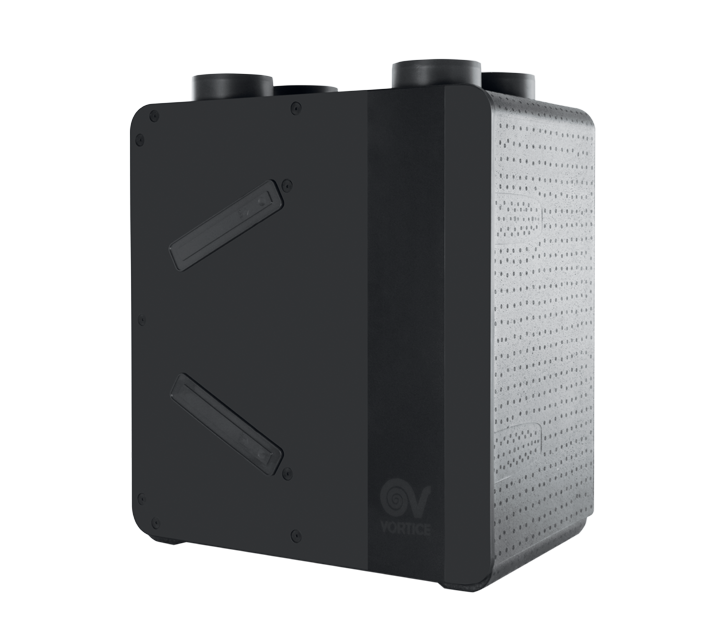

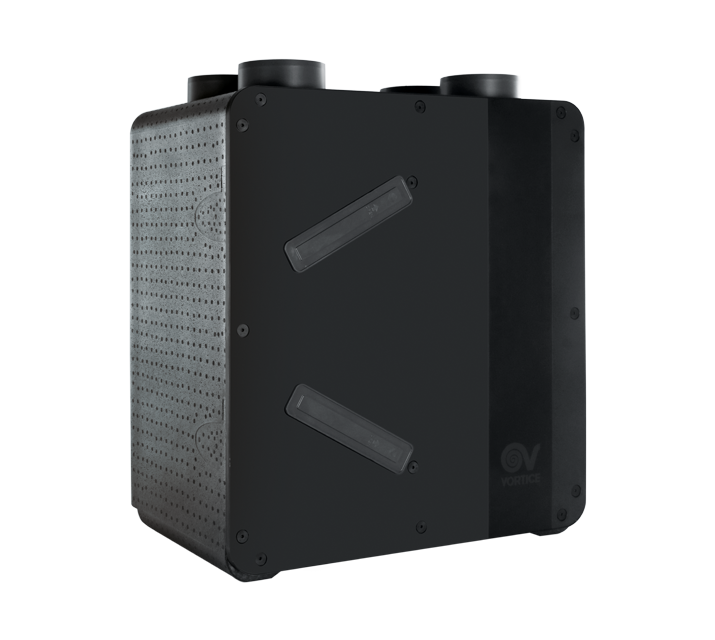

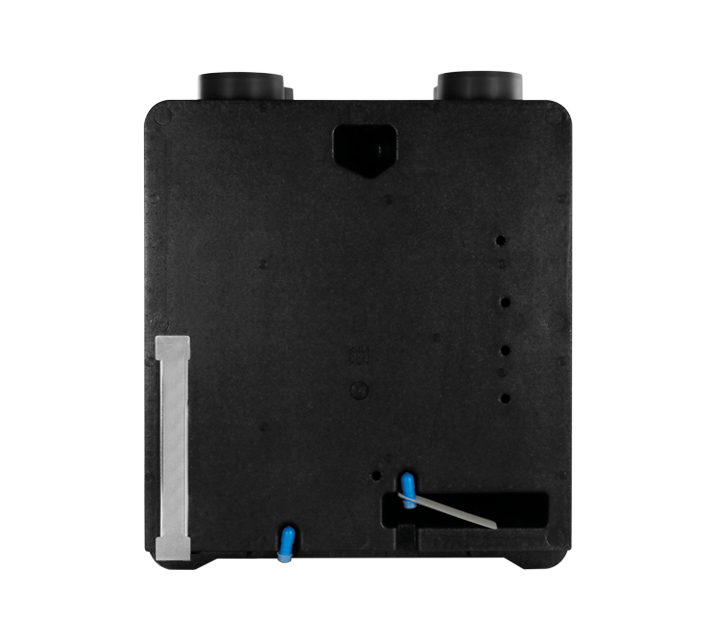

VORT HR 350 AVEL

• Plastic (PPE) fire-resistant enclosure (DIN EN 13501). Brackets for wall-mounted installation supplied as standard.
• Front panel made of plastic resin, integrating covers for filters direct access.
• Round duct connection ports, nominal diameter 150 mm.
• 2 EC (brushless) motors, external rotor, with shaft turning in ball bearings to grant a “maintenance free” functioning, each coupled to a backward curved centrifugal impeller; 2 speeds, independently adjustable at the installation.
• High efficiency counter-flow heat exchanger in PS resin.
• Automatic frost-protection to prevent icing on the heat exchanger.
• Automatic, 100% filtered, mechanic by-pass, granting people comfort in the rooms in mid-season or when the outside temperature does not require the action of the heat exchanger.
• Wired control panel with LCD display, which allows:
• to switch on / off the unit;
• the first set-up;
• to set the speed;
• to set the weekly timer;
• to show time and room temperature;
• to monitor the correct product operation (any faults are shown on the display);
• to show the filters status.
• 2 M5 filters (F7 filter for air supply duct available as optional), easy access for periodic maintenance.
• Condense water tray with discharge pipes.
• Possibility of connection to environmental external sensors (available as optional), for automatic functioning control.
