Description
Energy label
Technical Data Sheet
-
Filter class on extractISOCoarse 65%
-
Filter class on supplyePM10 50%
-
Frequency (Hz)50/60
-
Insulation classI°
-
IPX2
-
Max absorbed current (A)1,35
-
Max absorbed power (W)190
-
Nominal diameter (mm)125
-
Voltage (V)220-240
-
Weight (Kg)15
-
Breakout sound power LWA [dB(A)]52,8
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]32,3
-

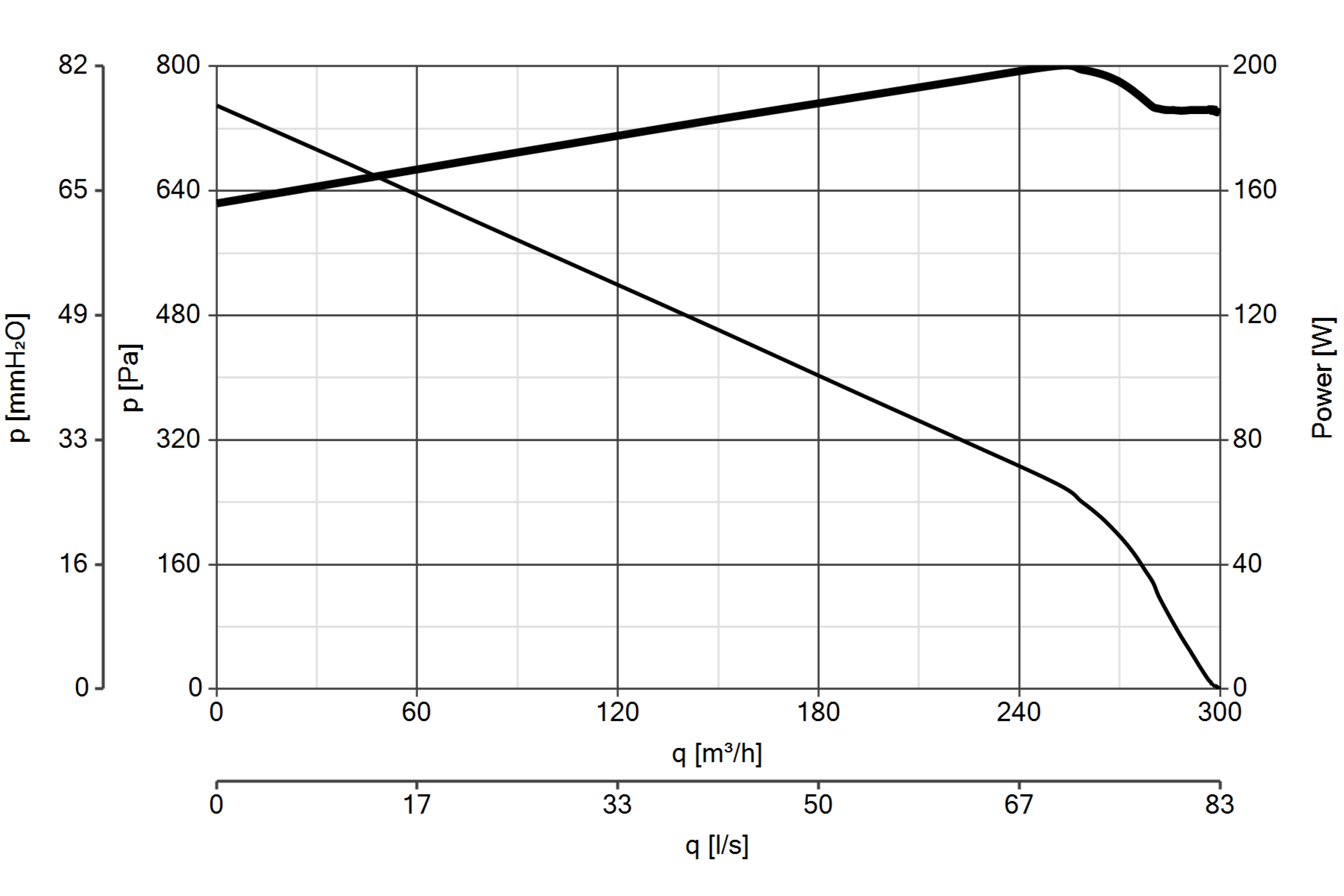

Max airflow (l/s)83
-
Max airflow (m³/h)300
-
Max pressure (mmH2O)75
-
Max pressure (Pa)735
-
Max thermal efficiency (%)92,5
-
Sound power at exhaust inlet LWA [dB(A)]46,8
-
Sound power at supply outlet LWA [dB(A)]64,9
-
Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]26,3
-
Sound pressure at 3m at Max speed at supply side Lp [dB (A)]44,4
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)600
-
Size B (mm)812
-
Size C (mm)317
-
Size D (mm)80
-
Size E (mm)450
-
Size F (mm)125
-
Size G (mm)74
-
Size H (mm)74
-
Size I (mm)104
-
Size L (mm)172
-
Size M (mm)165
-
Size N (mm)Ø 125
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

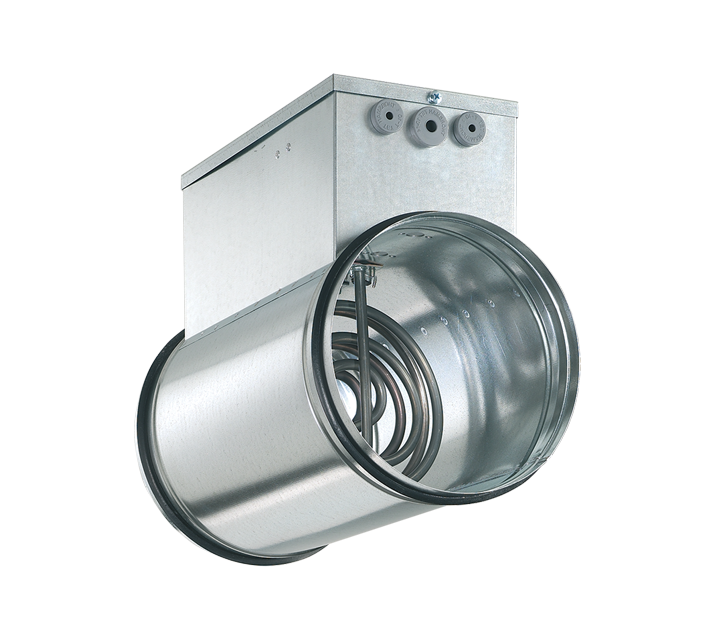

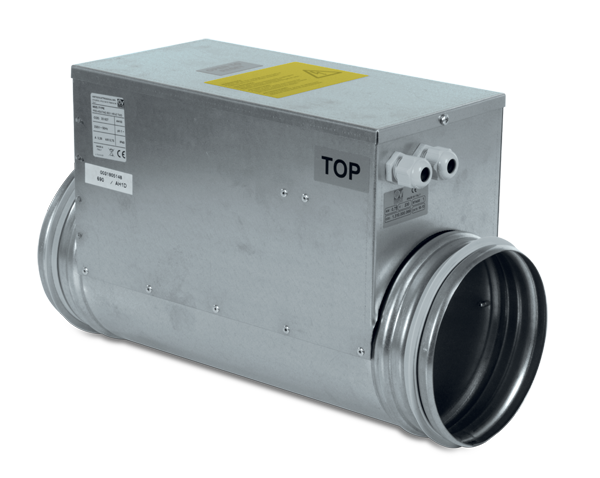

Accessories
Discover accessories related to the product

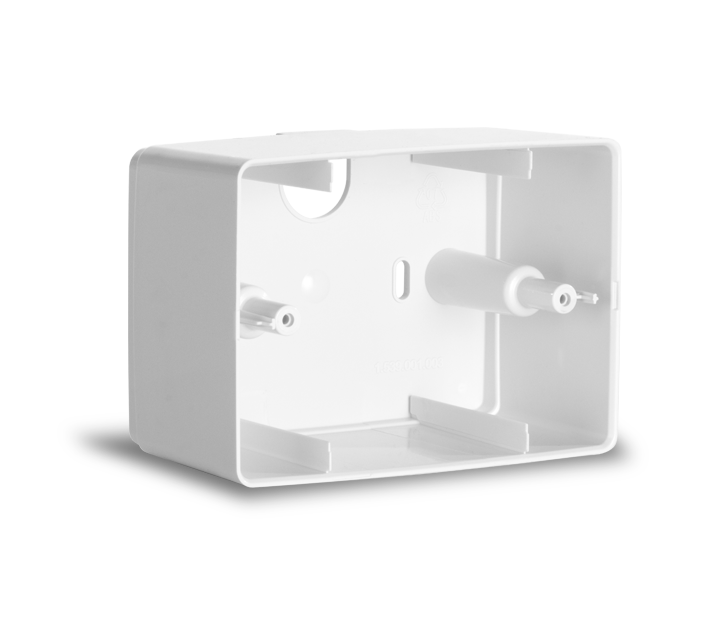

CB LCD R
Remote control panel with LCD display for flush mounting in wall box code 22732.
