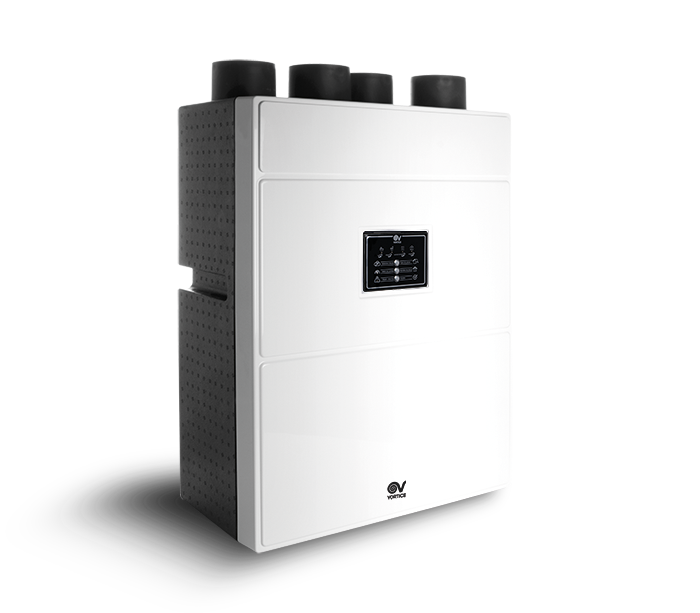

VORT HR 300 NETI H

Description

• Plastic (PPE) enclosure.
• Aesthetic front panel made of plastic resin, glossy finish.
• Round duct connection ports, nominal diameter 125 mm.
• 2 EC (brushless) motors with shaft turning in ball bearings, each coupled to a forward curved centrifugal impeller; 3 speeds, independently adjustable at the installation.
• Enthalpy heat exchanger
• Automatic by-pass for free-cooling (manual activation allowed as alternative).
• 1 ePM10 50% (M5) filter on supply air and 1 ISO Coarse 65% (G4) filter on extract air. The filters occlusion status and so the maintenance need is shown on the control panel.
• Control panel, on the front cover, allowing:
• the product configuration at the installation,
• the manual setting of the operating mode,
• the automatic operation settings and the correct functioning monitoring,
• the system diagnostic,
• the constant filters status monitoring and the relative maintenance / replacement needs,
• firmware updates.
• Bracket for wall-mounted installation supplied as standard.

Read full descriptionClose description

Certifications

Energy label

Filter class on extract

ISOCoarse 65%
Filter class on supply

ePM10 50%
Frequency (Hz)

50/60
Insulation class

I°
IP

X2
Max absorbed current (A)

1,35
Max absorbed power (W)

190
Nominal diameter (mm)

125

Voltage (V)

220-240
Weight (Kg)

14,7
Breakout sound power LWA at Max speed [dB (A)]

61,8

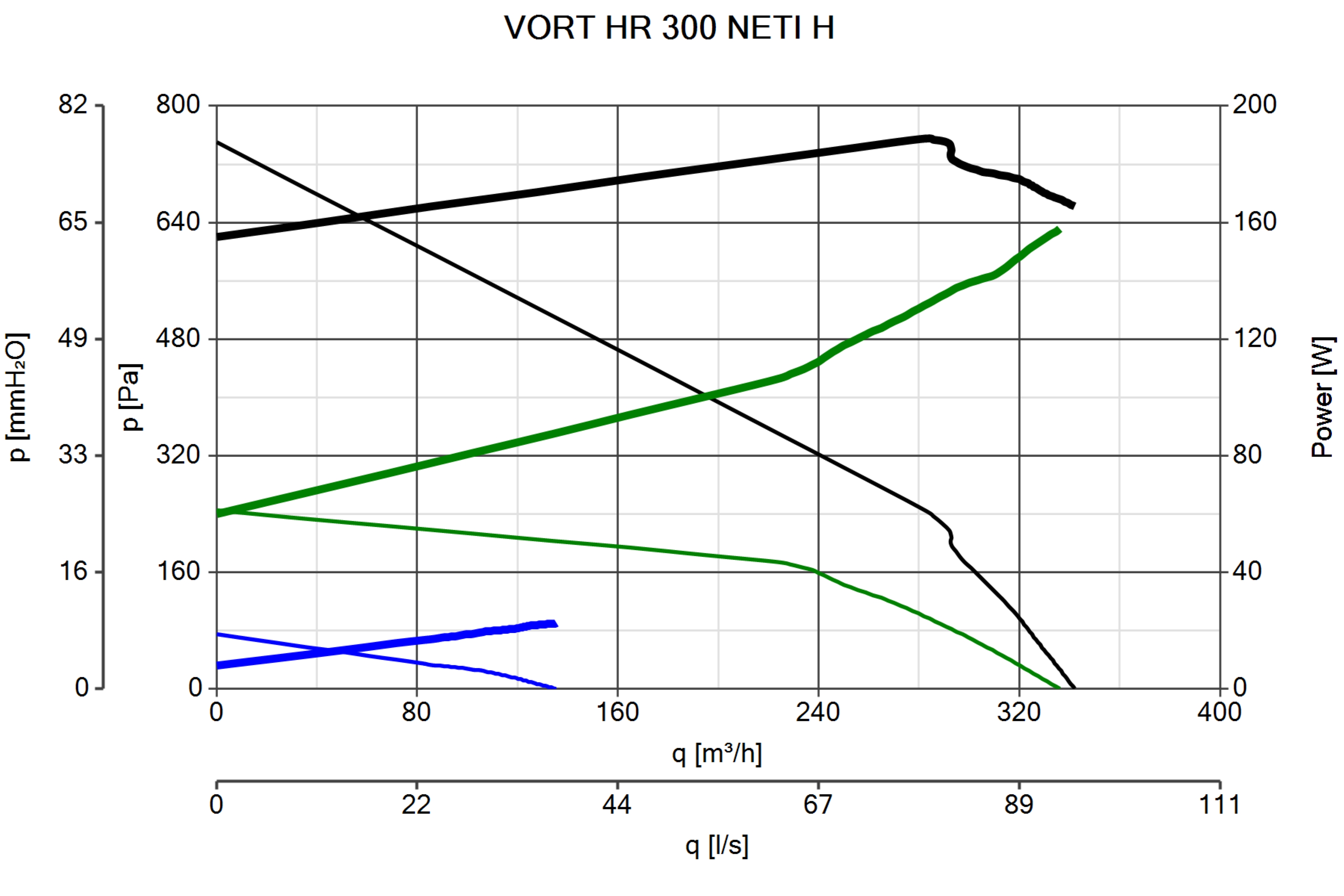

Max airflow (l/s)

95
Max airflow (m³/h)

342
Max pressure (Pa)

750
Max thermal efficiency (%)

77,1
Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]

26,3

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
