Description

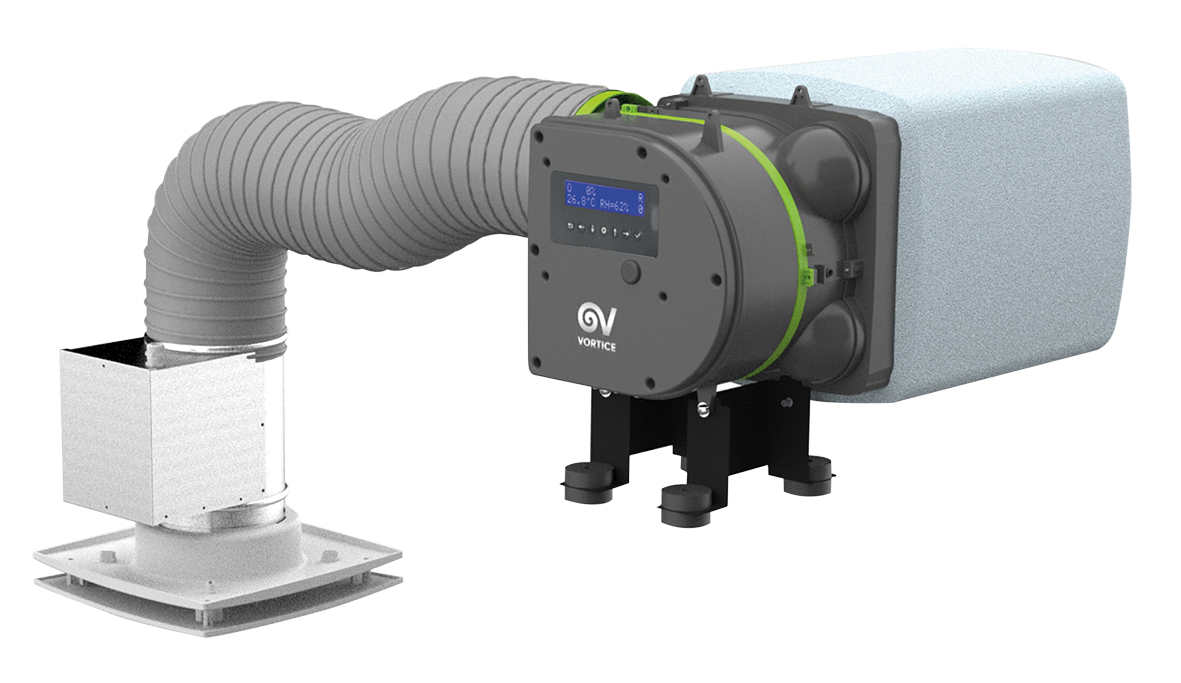

Positive input ventilation system aimed at continuously supply fresh, filtered air from the loft to the underneath dwelling up to 150 m2. Fresh air entering through an aerodynamically optimized air diffuser prevents mold growth caused by high humidity levels, so preserving the integrity of the building and ensuring the comfort of the occupants.
VORT PIV QUADRO RF highly efficient EC motorfan assures low energy consumptions. A long lasting (up to 7 years) ISO Coarse 65% (G4) retains the impurities in the supplied air.
An on-board control panel with a LCD display and a set of buttons allows the unit setting at installation and shows the filter remaining life, while a data logger recaps the total operation time.
A wireless controller, wall mounted and compatible with recessed installation, allows the unit proper settings.
VORT PIV QUADRO RF highly efficient EC motorfan assures low energy consumptions. A long lasting (up to 7 years) ISO Coarse 65% (G4) retains the impurities in the supplied air.
An on-board control panel with a LCD display and a set of buttons allows the unit setting at installation and shows the filter remaining life, while a data logger recaps the total operation time.
A wireless controller, wall mounted and compatible with recessed installation, allows the unit proper settings.
Certifications
-
CE
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Filter classG4
-
Frequency (Hz)50/60
-
Insulation classI°
-
IPX2
-
Max absorbed current (A)0,25
-
Max absorbed power (W)27
-
Potenza assorbita (W) - Vset1_Boost5,5
-
Potenza assorbita (W) - Vset1_Normal2,9
-
Potenza assorbita (W) - Vset2_Boost7,2
-
Potenza assorbita (W) - Vset2_Normal3,9
-
Potenza assorbita (W) - Vset3_Boost10
-
Potenza assorbita (W) - Vset3_Normal5,1
-
Potenza assorbita (W) - Vset4_Boost13,3
-
Potenza assorbita (W) - Vset4_Normal6,7
-
Potenza assorbita (W) - Vset5_Boost18,2
-
Potenza assorbita (W) - Vset5_Normal8,8
-
Potenza assorbita (W) - Vset6_Boost25,3
-
Potenza assorbita (W) - Vset6_Normal10,5
-
Potenza assorbita (W) - Vset7_Boost27
-
Potenza assorbita (W) - Vset7_Normal12,8
-
Voltage (V)220-240
-
Weight (Kg)6,3
-
Portata (l/s) - Vset1_ Boost25
-
Portata (l/s) - Vset1_Normal13
-
Portata (l/s) - Vset2_ Boost33
-
Portata (l/s) - Vset2_Normal19
-
Portata (l/s) - Vset3_ Boost42
-
Portata (l/s) - Vset3_Normal25
-
Portata (l/s) - Vset4_ Boost50
-
Portata (l/s) - Vset4_Normal31
-
Portata (l/s) - Vset5_ Boost58
-
Portata (l/s) - Vset5_Normal37
-
Portata (l/s) - Vset6_ Boost70
-
Portata (l/s) - Vset6_Normal43
-
Portata (l/s) - Vset7_ Boost74
-
Portata (l/s) - Vset7_Normal49
-
Portata (m3/h) - Vset1_Boost90
-
Portata (m3/h) - Vset1_Normal46,8
-
Portata (m3/h) - Vset2_Boost118,8
-
Portata (m3/h) - Vset2_Normal68,4
-
Portata (m3/h) - Vset3_Boost151,2
-
Portata (m3/h) - Vset3_Normal90
-
Portata (m3/h) - Vset4_Boost180
-
Portata (m3/h) - Vset4_Normal111,6
-
Portata (m3/h) - Vset5_Boost208,8
-
Portata (m3/h) - Vset5_Normal133,2
-
Portata (m3/h) - Vset6_Boost252
-
Portata (m3/h) - Vset6_Normal154,8
-
Portata (m3/h) - Vset7_Boost266,4
-
Portata (m3/h) - Vset7_Normal176,4
-
Potenza sonora Lw [dB (A)] - OUTLET - Vset1_Normal28,6
-
Pressione sonora Lp [dB (A)] 3m - OUTLET - Vset1_Normal11,1
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

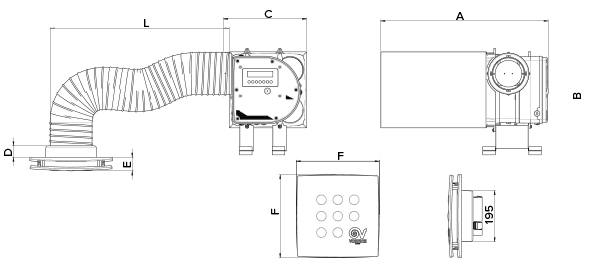

Size A (mm)631
-
Size B (mm)318
-
Size B1 (mm)407
-
Size C (mm)326
-
Size D (mm)44
-
Size E (mm)53
-
Size F (mm)317
-
Size L (mm)3000
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
ELECTRIC HEATER 500 PIV
Electric heater specifically designed for VORT PIV QUADRO.
Equipped with an adjustable bulb thermostat that stops the heater operation when the temperature exceeds the preset valu...
WDG-PH PLUS-C 6X63
PE distribution plenum, with 6 standard outlet nozzles (85 mm diameter) and 1 outlet nozzle (125 mm diameter). Adjustment diaphragms and 3 caps included in the kit.
WDG-P PLUS-C 8X63
PE distribution plenum, with 8 standard outlet nozzles (85 mm diameter) and 1 outlet nozzle (100-125 mm diameter). Adjustment diaphragms and 4 caps included in the kit.
ADJUSTABLE BRACKETS KIT VORT PIV QUADRO
Adjustable brackets kit for VORT PIV QUADRO.
FTR EPM1 55% G4-F7 PIV QUADRO
Bag filter for VORT PIV QUADRO composed of an ISO Coarse 60% class membrane (G4) combined with an ePM2.5 70% class membrane (F7).
NOX FILTER PIV
Cylindrical filter capable of retaining nitrogen oxides present in the external air.
