Description
Electric heater specifically designed for VORT PIV QUADRO.
Equipped with an adjustable bulb thermostat that stops the heater operation when the temperature exceeds the preset value. This model is equipped with an additional safety thermostat with manual reset (using a special key) which stops the heater in case of overheating.
Protection of the electrical connection box: IP40.
Maximum power consumption: 500 W.
Equipped with an adjustable bulb thermostat that stops the heater operation when the temperature exceeds the preset value. This model is equipped with an additional safety thermostat with manual reset (using a special key) which stops the heater in case of overheating.
Protection of the electrical connection box: IP40.
Maximum power consumption: 500 W.
Technical Data Sheet
-
Frequency (Hz)50/60
-
IP40
-
Max absorbed current (A)2,2
-
Max absorbed power (W)500
-
Voltage (V)220-240
-
Weight (Kg)2,4
-

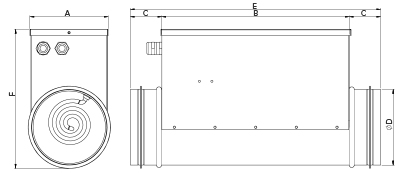

Size A (mm)161
-
Size B (mm)300
-
Size C (mm)50
-
Size D (mm)Ø 156
-
Size E (mm)400
-
Size F (mm)245
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
