Description

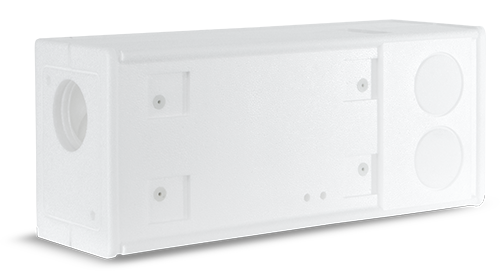

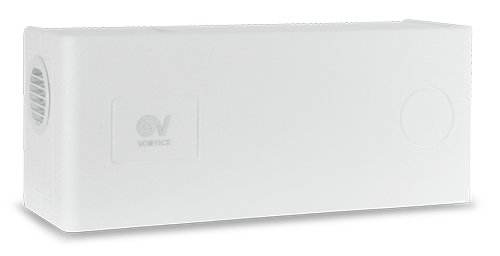

Positive input ventilation system aimed at continuously supply fresh, filtered outdoor air to the dwelling. Fresh air entering through an aerodynamically optimized front or left spigot (or both, if needed) prevents mold growth caused by high humidity levels, so preserving the integrity of the building and ensuring the comfort of the occupants.
VORT PIV W LH RF highly efficient EC motorfan assures low energy consumptions.
A washable ISO Coarse 40% (G3) retains the impurities in the supplied air. An on-board control panel with a LCD display and a set of buttons allows the unit setting at installation and shows the filter remaining life, while a data logger recaps the total operation time.
An integrated pre-heater prevents annoying cold air supply.
A wireless RF controller, snapped into the casing or positioned on any flat surface, allows the unit proper settings.
Read full descriptionClose description

Certifications

  • CE CE
  • UKCA UKCA

Technical Data Sheet

  • Filter class
    ISOCoarse 30%
  • Frequency (Hz)
    50-60
  • Insulation class
  • IP
    X2
  • Max absorbed current (A)
    2,4
  • Max absorbed power (W)
    520,00
  • Max fan absorbed current (A)
    0,19
  • Potenza assorbita (W) - Vset1_Boost
    9,30
  • Potenza assorbita (W) - Vset1_Normal
    6,80
  • Potenza assorbita (W) - Vset2_Boost
    13,20
  • Potenza assorbita (W) - Vset2_Normal
    9,30
  • Potenza assorbita (W) - Vset3_Boost
    17,00
  • Potenza assorbita (W) - Vset3_Normal
    13,20
  • Potenza assorbita (W) - Vset4_Boost
    20,00
  • Potenza assorbita (W) - Vset4_Normal
    17,00
  • Potenza Assorbita Heater (W)
    500,00
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,5
  • Portata (l/s) - Vset1_ Boost
    19
  • Portata (l/s) - Vset1_Normal
    13
  • Portata (l/s) - Vset2_ Boost
    25
  • Portata (l/s) - Vset2_Normal
    19
  • Portata (l/s) - Vset3_ Boost
    25
  • Portata (l/s) - Vset3_Normal
    31
  • Portata (l/s) - Vset4_ Boost
    36
  • Portata (l/s) - Vset4_Normal
    31
  • Portata (m3/h) - Vset1_Boost
    68,4
  • Portata (m3/h) - Vset1_Normal
    46,8
  • Portata (m3/h) - Vset2_Boost
    90
  • Portata (m3/h) - Vset2_Normal
    68,4
  • Portata (m3/h) - Vset3_Boost
    111,6
  • Portata (m3/h) - Vset3_Normal
    90
  • Portata (m3/h) - Vset4_Boost
    133,2
  • Portata (m3/h) - Vset4_Normal
    111,6
  • Potenza sonora Lw [dB (A)] - OUTLET - Vset1_Normal
    40,1
  • Pressione sonora Lp [dB (A)] 3m - OUTLET - Vset1_Normal
    19,6


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

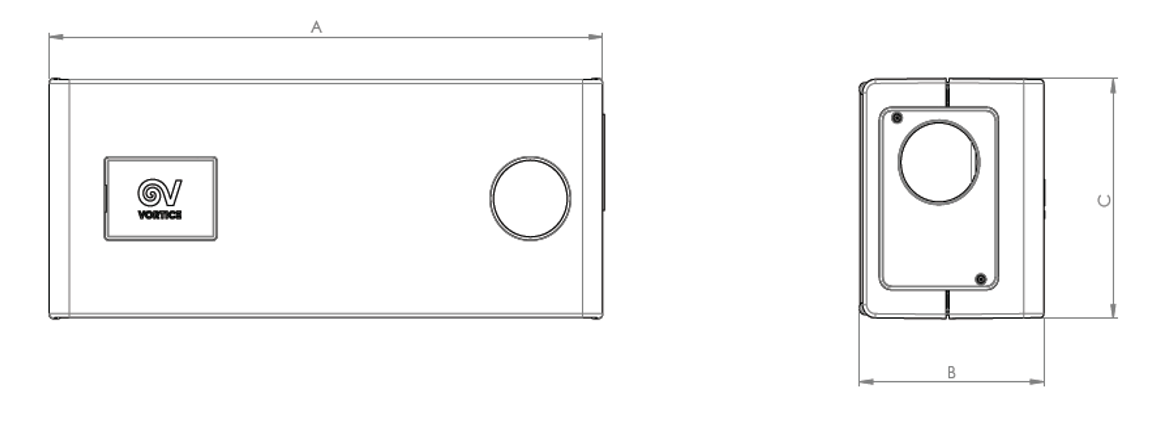

  • Size A (mm)
    690
  • Size B (mm)
    229
  • Size C (mm)
    290
quota

Accessories

Discover accessories related to the product

FTR G4 PIV W
FTR G4 PIV W
ISO Coarse 60% (G4) class filter. Dimensions: 235x115x5 mm.
FTR EPM2.5 70% F7 PIV W
FTR EPM2.5 70% F7 PIV W
ePM2.5 70% (F7) class filter for VORT PIV W.
