Code 12484

VORT HR W-ALL 100 DF W

Accessorio_1

Description

Read full descriptionClose description

Technical Data Sheet

  • Filter class on extract
    G4
  • Filter class on supply
    ePM1 60%
  • Frequency (Hz)
    50/60
  • IP
    22
  • Max ambient temperature for continuous operation (°C)
    40
  • Min continuous operation room temperature (°C)
    -5
  • Motor class
    B
  • Number of phases (Ph)
    1
  • Number of speeds
    5
  • Potenza assorbita (W) - Vset1_Normal
    8
  • Potenza assorbita (W) - Vset2_Normal
    11
  • Potenza assorbita (W) - Vset3_Normal
    16
  • Potenza assorbita (W) - Vset4_Normal
    31
  • Potenza assorbita (W) - Vset5_Boost
    48
  • Range of nominal voltages (V)
    220-240
  • Weight (Kg)
    17

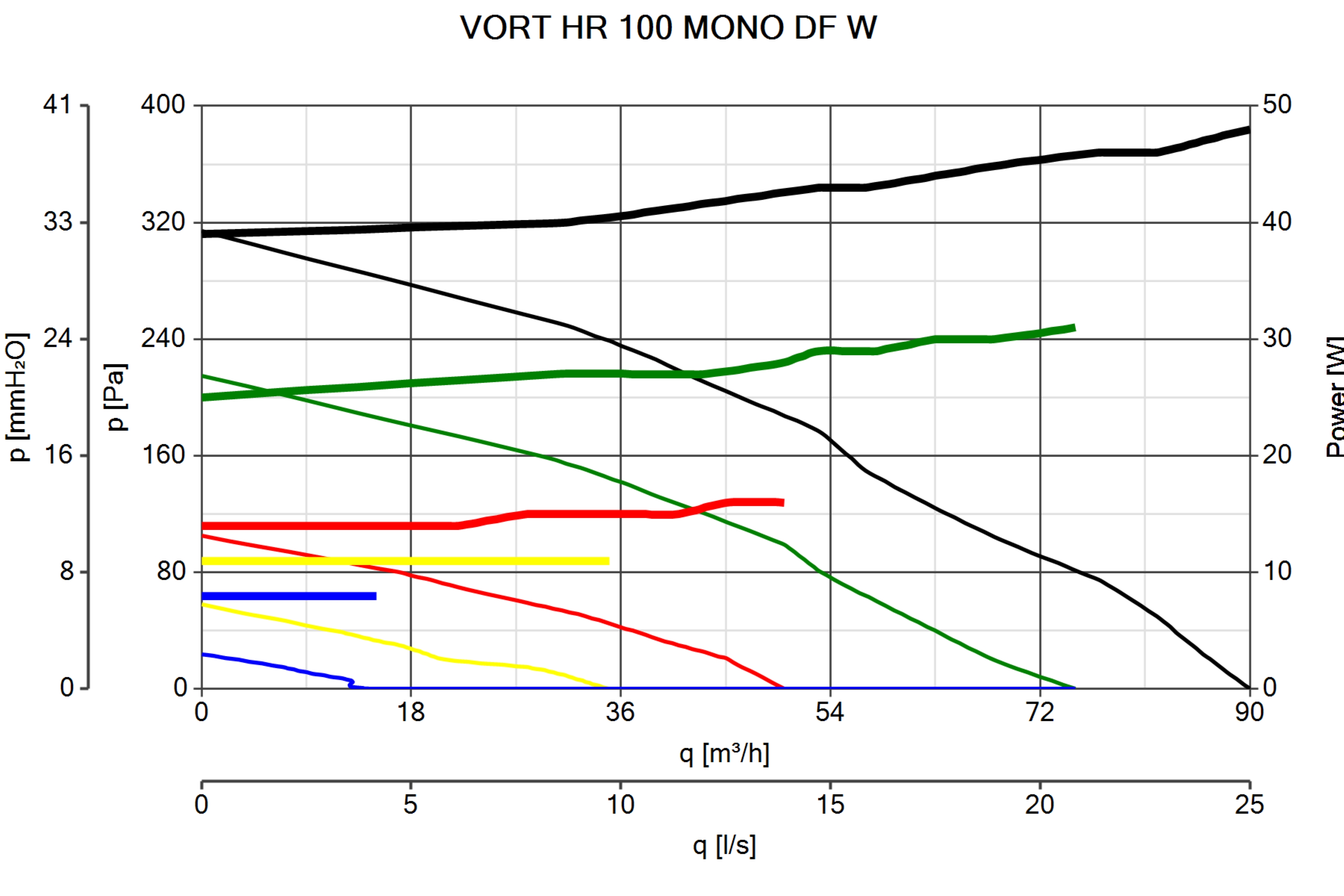

  • Airflow (m3/h) - Boost mode
    90
  • Airflow (m3/h) - High Performance mode
    75
  • Airflow (m3/h) - Performance mode
    50
  • Airflow (m3/h) - Quiet mode
    35
  • Portata (m3/h) - Super Quiet
    15
  • Potenza sonora Lw [dB(A)] - Super Quiet
    24
  • Pressione (Pa) – Super Quiet
    24
  • Pressure (Pa) – Boost mode
    314
  • Pressure (Pa) – High Performance mode
    215
  • Pressure (Pa) – Performance mode
    105
  • Pressure (Pa) – Quiet mode
    58
  • Sound power LWA [dB (A)] – Boost mode
    57
  • Sound power LWA [dB(A)] – High Performance mode
    52
  • Sound power LWA [dB(A)] – Performance mode
    43
  • Sound power LWA [dB(A)] – Quiet mode
    36
  • Sound pressure at 3m Lp [dB (A)] – Quiet mode
    19
  • Sound pressure at 3m Lp [dB (A)] 3m – Boost mode
    40
  • Sound pressure at 3m Lp [dB (A)] 3m – High Performance mode
    35
  • Sound pressure at 3m Lp [dB (A)] 3m – Performance mode
    26
  • Sound pressure Lp [dB (A)] 1m – Boost
    49
  • Sound pressure Lp [dB (A)] 1m – Hight performance
    44
  • Sound pressure Lp [dB (A)] 1m – performance
    35
  • Sound pressure Lp [dB (A)] 1m – Quiet
    28
  • Sound pressure Lp [dB (A)] 1m – Super Quiet
    16
  • Sound pressure Lp [dB (A)] 3m – Super Quiet
    <10

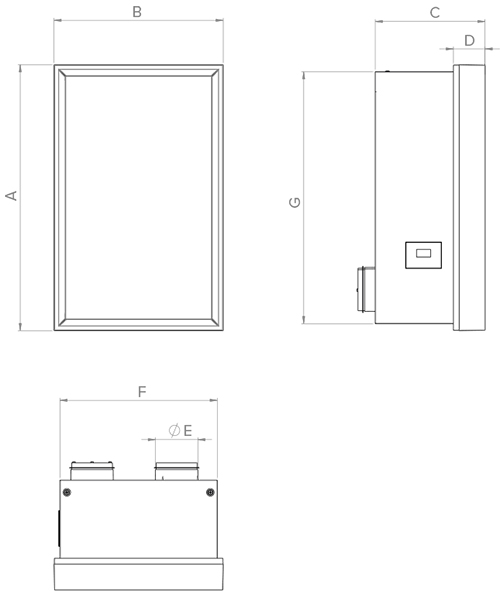

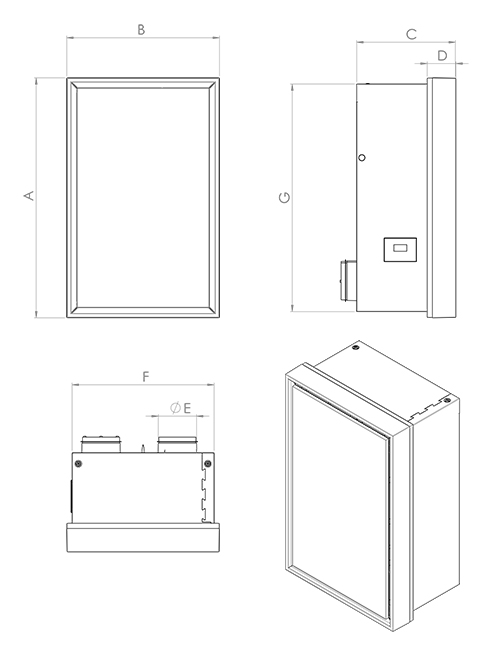

  • Size A (mm)
    605
  • Size B (mm)
    385
  • Size C (mm)
    250
  • Size D (mm)
    72
  • Size E (mm)
    Ø 97
  • Size F (mm)
    358
  • Size G (mm)
    573
