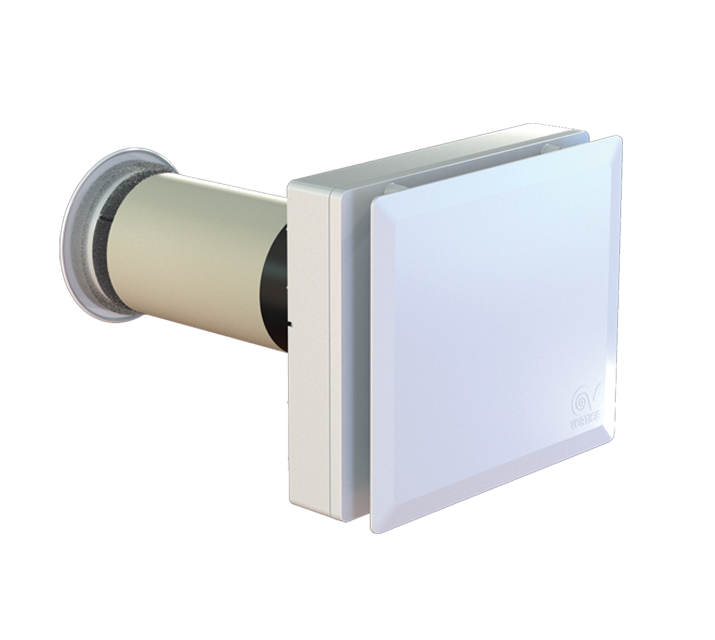

VORT HRW 30 MONO EVO HCS WiFi

Decentralized heat recovery unit, equipped with a Wi-Fi module able to put in communication all the installed machines. Particularly suitable for installation in residential and commercial premises of new buildings or those subject to renovation for energy efficiency. Ideal, as well as to ensure proper air exchange, also to prevent excess humidity in the room and mold growth on the walls.

• Shockproof and anti-UV plastic resin structure.
• Nominal diameter: 100 mm.
• Ceramic exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum airflow).
• Wi-Fi module capable of establishing the communication between products through a local “mesh” network, allowing a coordinated functioning and a correct indoor ventilation.
• High efficiency EC motor fan; five operating speeds, to maximize performance when needed, or to minimize noise and consumption.
• Integrated relative humidity probe.
• One-way remote control that allows to set parameters or to view useful product information. In detail:
• to switch on/off the machine,
• to select the operating mode (4 different choices),
• to set fan speed,
• to select the relative humidity threshold value that activates the Boost speed (three pre-defined levels that can be set at 50%, 65% and 80%),
• to activate “Night Mode”,
• to show filter status.
• Five different operating modes:
• Continuous ventilation with heat recovery: the product cyclically extracts and introduces air to and from the room, recovering the energy stored in the exchanger;
• Ventilation with air extraction only: stale air is extracted from the environment;
• Ventilation with air intake only: the product introduces fresh air into the environment;
• Automatic ventilation: the heat recovery unit automatically manages the airflows based on the relative humidity sensor readings;
• “Night” ventilation: when the light in the room goes down, the product automatically forces the fan to run at minimum speed, regardless of the relative humidity values detected.
• Two air filters, a 65% IsoCoarse and a pre-filter for dust, both easily removable for washing.
• Mechanical quick closing system of the air delivery integrated into the product chassis.
• External rubber grille, which can be installed from the outside using plugs or from the inside, through the hole in the wall.
• Insect mesh, which can be installed into the duct from inside.
