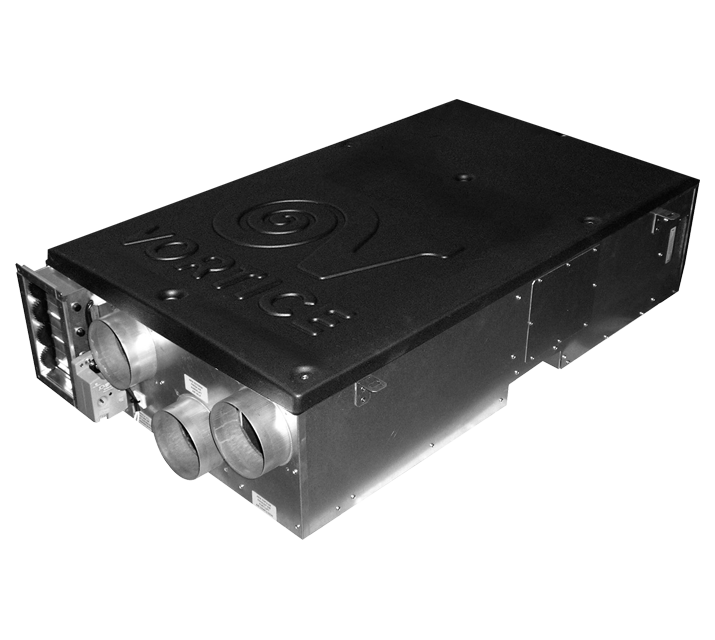

Description
• Zinc-coated pressed steel enclosure with removable panels.
• 2 x EC brushless motor with shafts turning in ball bearings, coupled to centrifugal impellers.
• Trimmer control allowing selection of speeds from 0 to Max in response to system pressure losses.
• Ventilation air flow between 80 m3/h and 125 m3/h.
Dehumidifying air flow between 130 m3/h and 250 m3/h.
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS)
• It contains fluorinated greenhouse gases.
• Compressor operating with HFC-R134a refrigerant
• Prewired for mechanical thermo-hygrostat (product code 22609)
• Dual water/air condenser
• Flow switch
• Three-way modulating valve

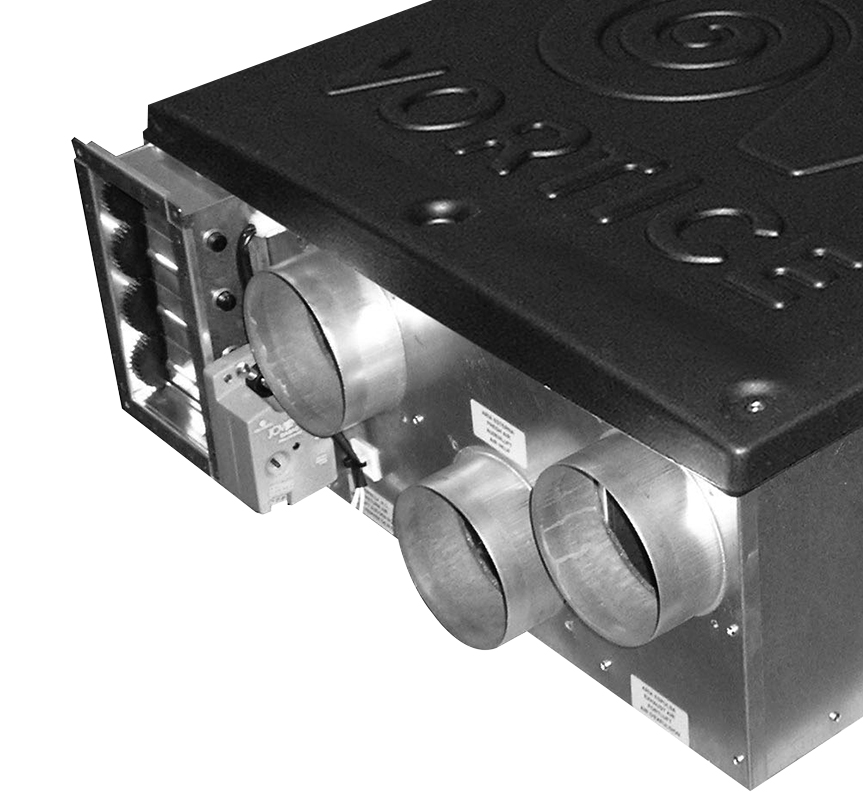

• Motorized recirculation damper
• Antifreeze protection
• 2 x G4 filters
• Electronic control unit with microprocessor and LCD display
Remote control panel RCP (code 22607) available as optional
• Hermetically sealed equipment.
• 2 x EC brushless motor with shafts turning in ball bearings, coupled to centrifugal impellers.
• Trimmer control allowing selection of speeds from 0 to Max in response to system pressure losses.
• Ventilation air flow between 80 m3/h and 125 m3/h.
Dehumidifying air flow between 130 m3/h and 250 m3/h.
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS)
• It contains fluorinated greenhouse gases.
• Compressor operating with HFC-R134a refrigerant
• Prewired for mechanical thermo-hygrostat (product code 22609)
• Dual water/air condenser
• Flow switch
• Three-way modulating valve
• Motorized recirculation damper
• Antifreeze protection
• 2 x G4 filters
• Electronic control unit with microprocessor and LCD display
Remote control panel RCP (code 22607) available as optional
• Hermetically sealed equipment.
Certifications
-
Download
CE
Technical Data Sheet
-
Absorbed power of extract fan (reg. Min /Nominal/Max) (W)11/22/43/
-
Absorbed power of supply fan (reg. Min /Nominal/Max) (W)10/30/86/
-
Compressor nominal absorbed power (W)340
-
Filter classM5
-
Frequency (Hz)50
-
Indoor total cooling capacity (W)1380
-
Insulation classI°
-
IPX2
-
Nominal diameter (mm)125
-
Refrigerant typeR134A
-
Sensible heat recovery in winter950
-
Voltage (V)230
-
Weight (Kg)60
-
Airflow in summer mode (m3/h)260
-
Airflow in winter mode (m3/h)80-130
-
Dehumidification capacity (l/24 hr)30,1
-
Nominal pressure drop of hydraulic circuit (kPa)15
-
Pressure of extract fan (Pa)50-140
-
Pressure of supply fan (Pa)50/140/
-
Sound power Lw [dB(A)]47
-
Sound pressure Lp [dB (A)] at 3 m39
-
Summer nominal efficiency (%)75
-
Water coil flow rate (reg. Min /Nominal/Max) (l/h)150/250/400/
-
Winter nominal efficiency (%)90
-
Supplier's name or trade markNA
-
Condensate drain pipe Ø C (mm)20
-

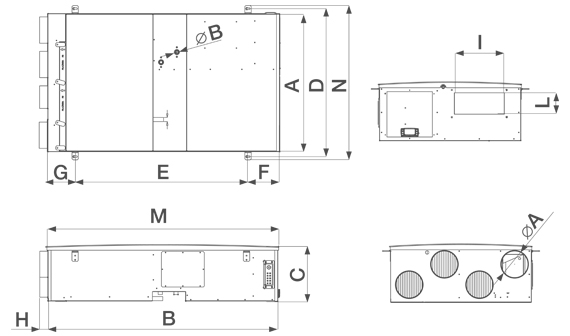

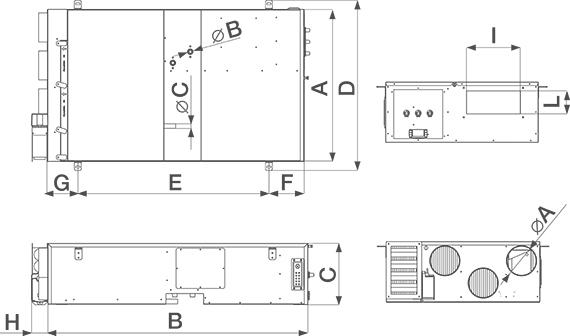

Size A (mm)662
-
Size B (mm)1104
-
Size C (mm)280
-
Size D (mm)702
-
Size E (mm)821
-
Size F (mm)152
-
Size G (mm)132
-
Size H (mm)38
-
Size I (mm)232
-
Size L (mm)99
-
Size M (mm)1118
-
Size N (mm)732
-
Vent diameter Ø A (mm)125
-
Water discharge pipe Ø B (mm)1/2"
