Description

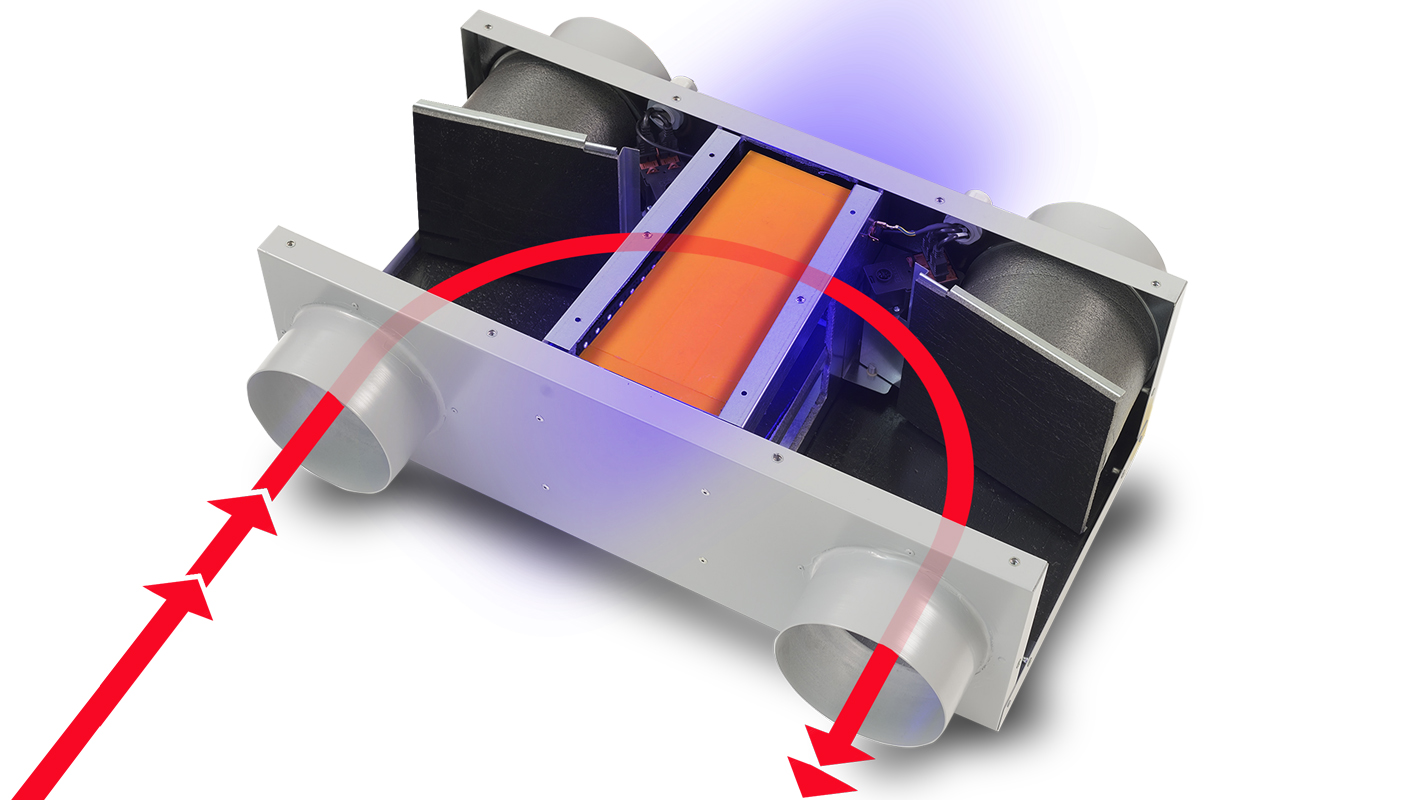

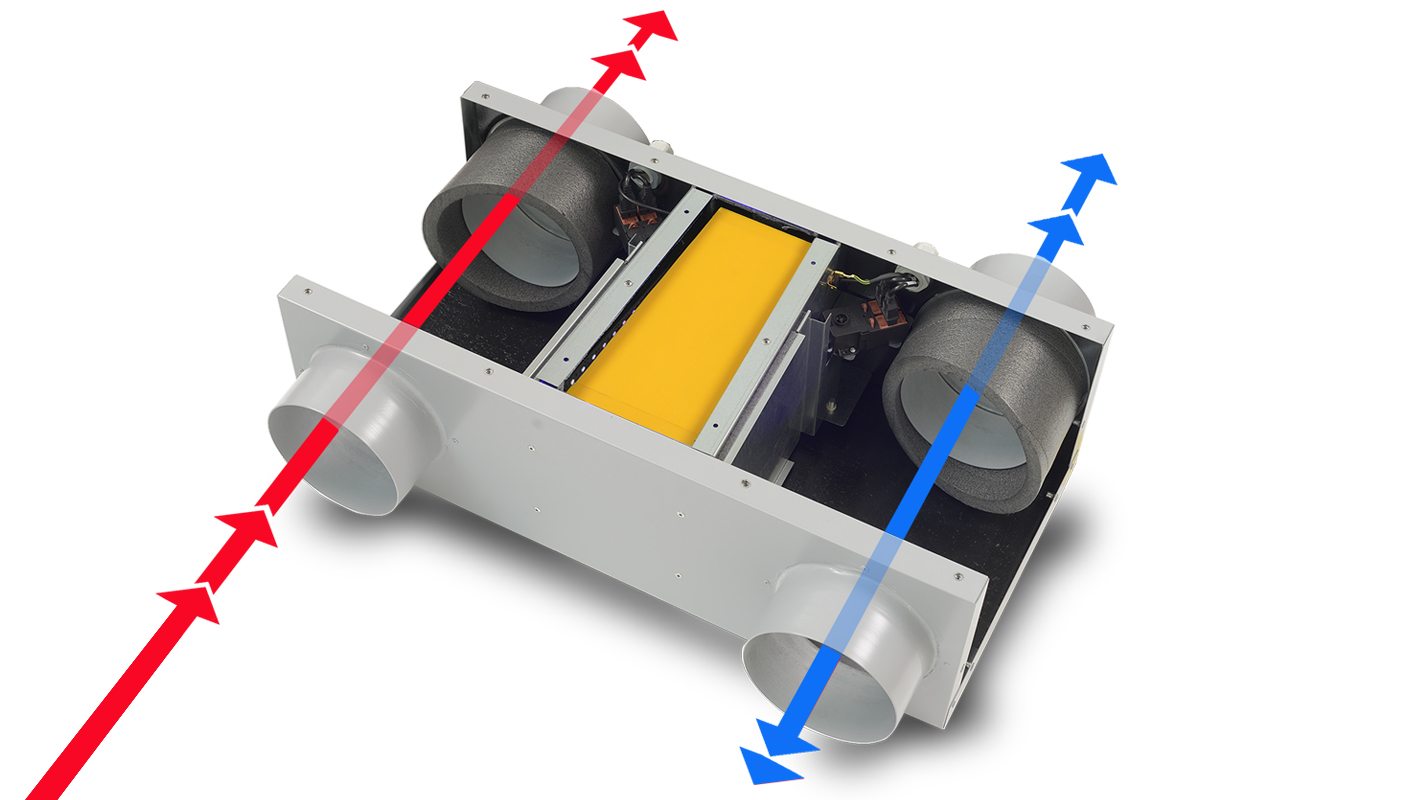

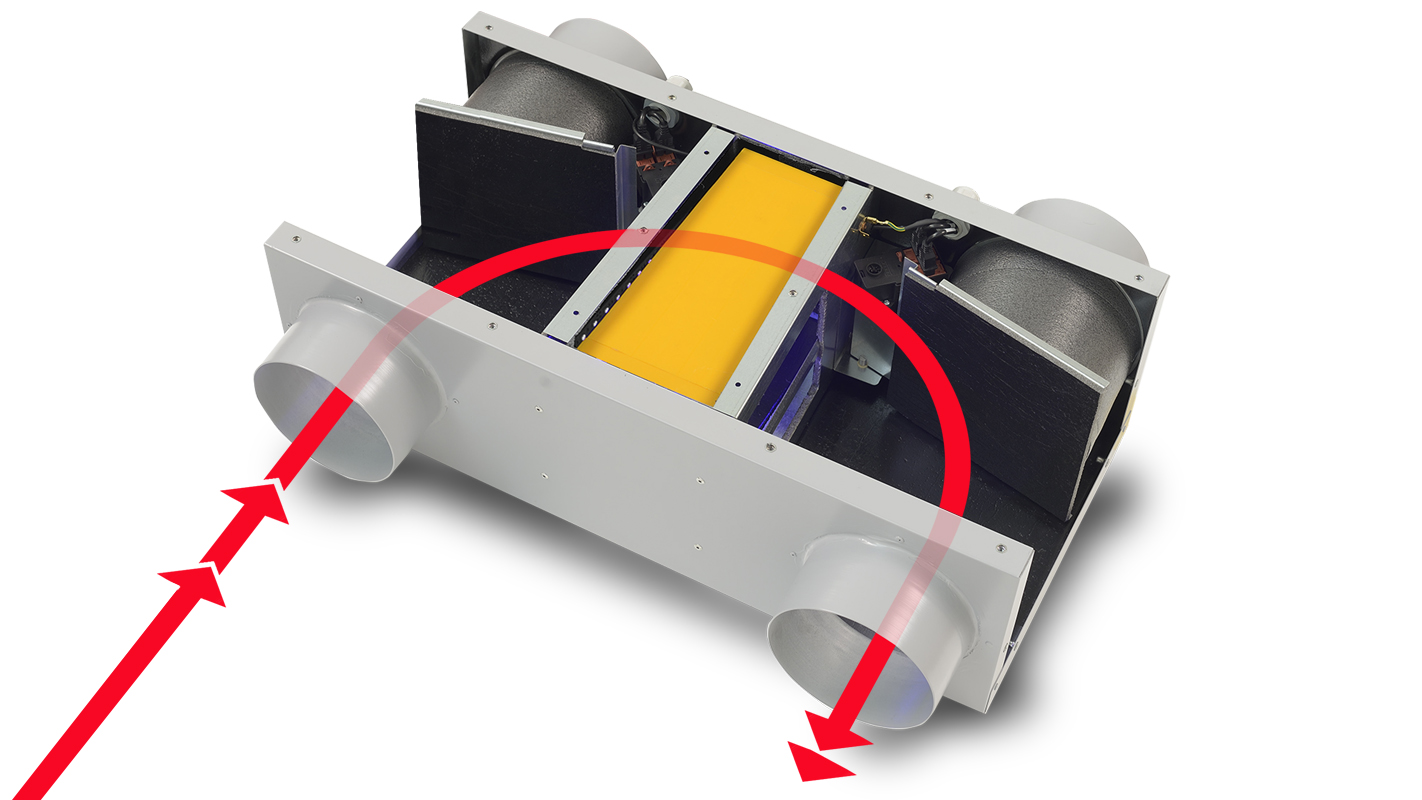

• When used as a traditional Heat Recovery Unit, recommended operating mode when the house is occupied, VORT HA PHANTOM 200 grants the effective, quiet, low cost indoor ventilation, reducing relative humidity and CO2 concentrations. When instead operated as air purifier, suggested running mode when the house is unoccupied thanks to its patented filtering system, VORT HA PHANTOM 200 dramatically reduces concentration of live bacteria, NOX, VOC and CO, at the same time halving usual operating costs. .
• VORT HA PHANTOM 200 BP is equipped with:

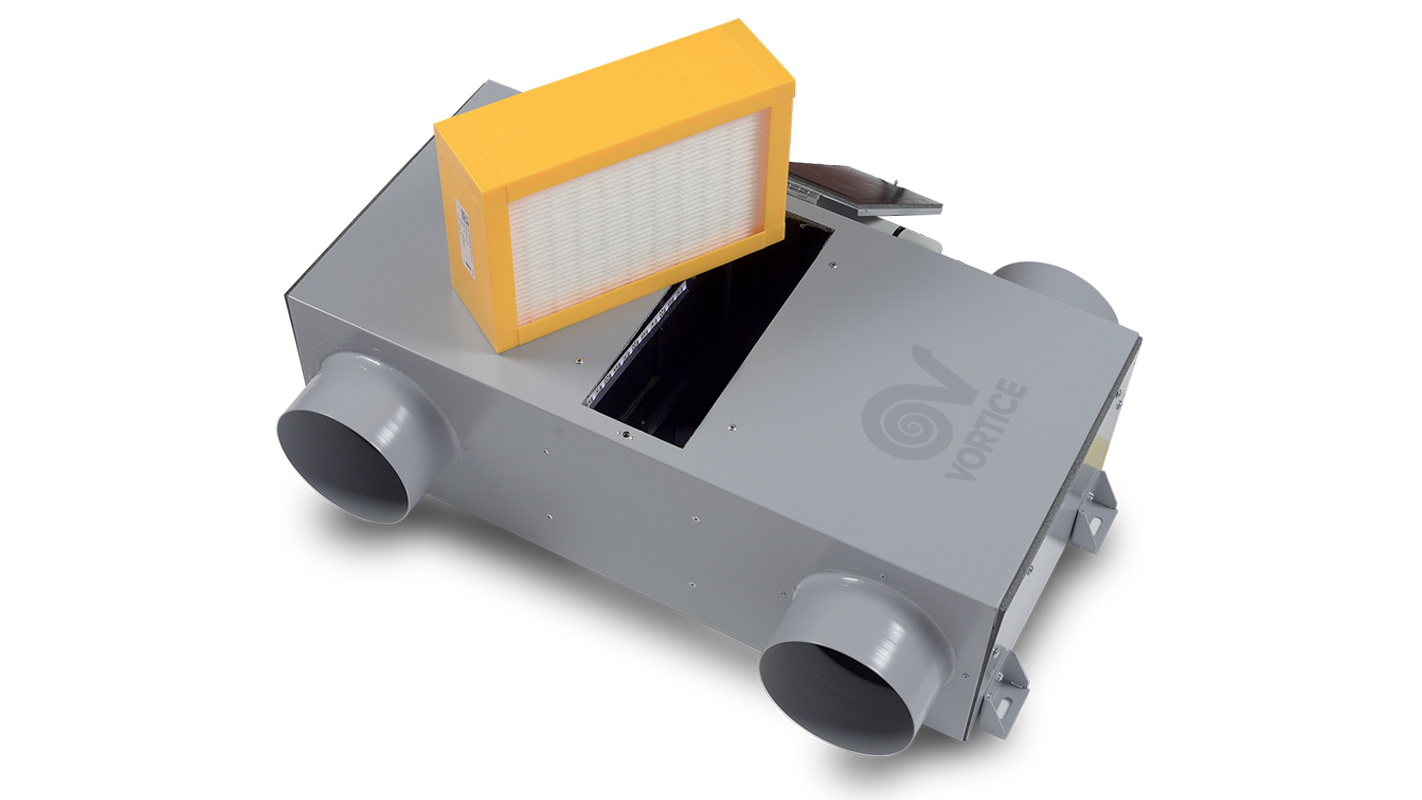

o 2 M5 filters effective against PM10 usually present in fresh outdoor air (the F7 filter, available as optional, on supply grants an even more effective action).
o A patented filter effective against bacteria, NOX, VOC and CO.
• Noise levels, consumptions and performances remain the same of stand alone VORT HRI PHANTOM 350 BP.

Read full descriptionClose description

Certifications

Energy label

Technical Data Sheet

Frequency (Hz)

50
Max absorbed current (A)

1,4
Max absorbed power (W)

165
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

150
Voltage (V)

230
Weight (Kg)

44
Breakout sound power LWA [dB(A)]

51,0
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

30,5

Max airflow (l/s)

97,0
Max airflow (m³/h)

350
Max pressure (mmH2O)

58,0
Max pressure (Pa)

568
Sound power at exhaust inlet LWA [dB(A)]

37,8
Sound power at supply outlet LWA [dB(A)]

37,2
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]

17,3
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]

16,7

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

A
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-38,0
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-77,0
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

-13,0
Declared type

UVR-B: bidirezionale
Type of drive

variatore di velocità: VSD
Type of heat recovery system HRS

a recupero
Thermal efficiency of heat recovery at reference airflow [%]

90,4
Max airflow [m3/h]

280
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

165,0
Sound power LWA [dB(A)]

51
Reference airflow [m3/s]

0,0544
Reference ? pressure [Pa]

70
SPI [W/(m3/h)]

0,35204
Control factor CTRL

0,85
Control type

amb. centralizzato
Max internal leakage rate [%]

8,7
Max external leakage rate [%]

5,2
Mixing rate

NA
Position and description of visual filter warning

Vedi libretto istruzioni
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

364
AHS temperate annual energy saved [kWh primary energy/y]

4641
AHS cold annual energy saved [kWh primary energy/y]

9078
AHS warm annual energy saved [kWh primary energy/y]

2098
