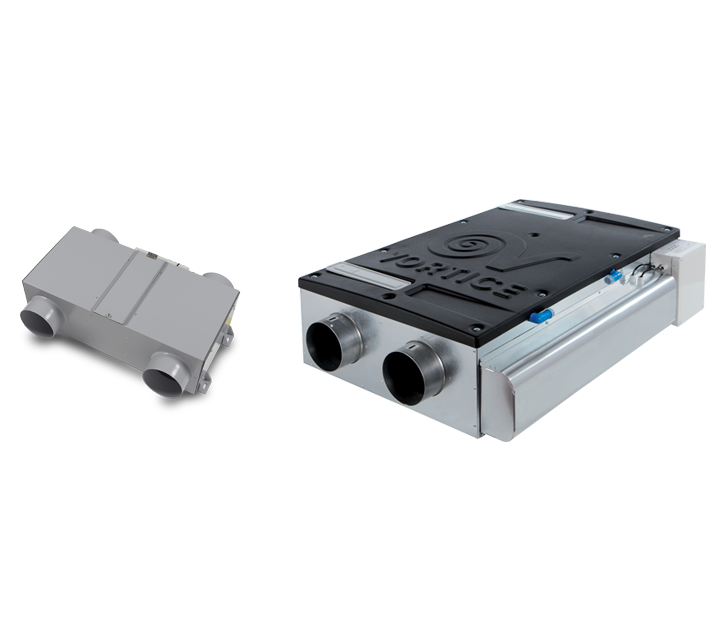

Description

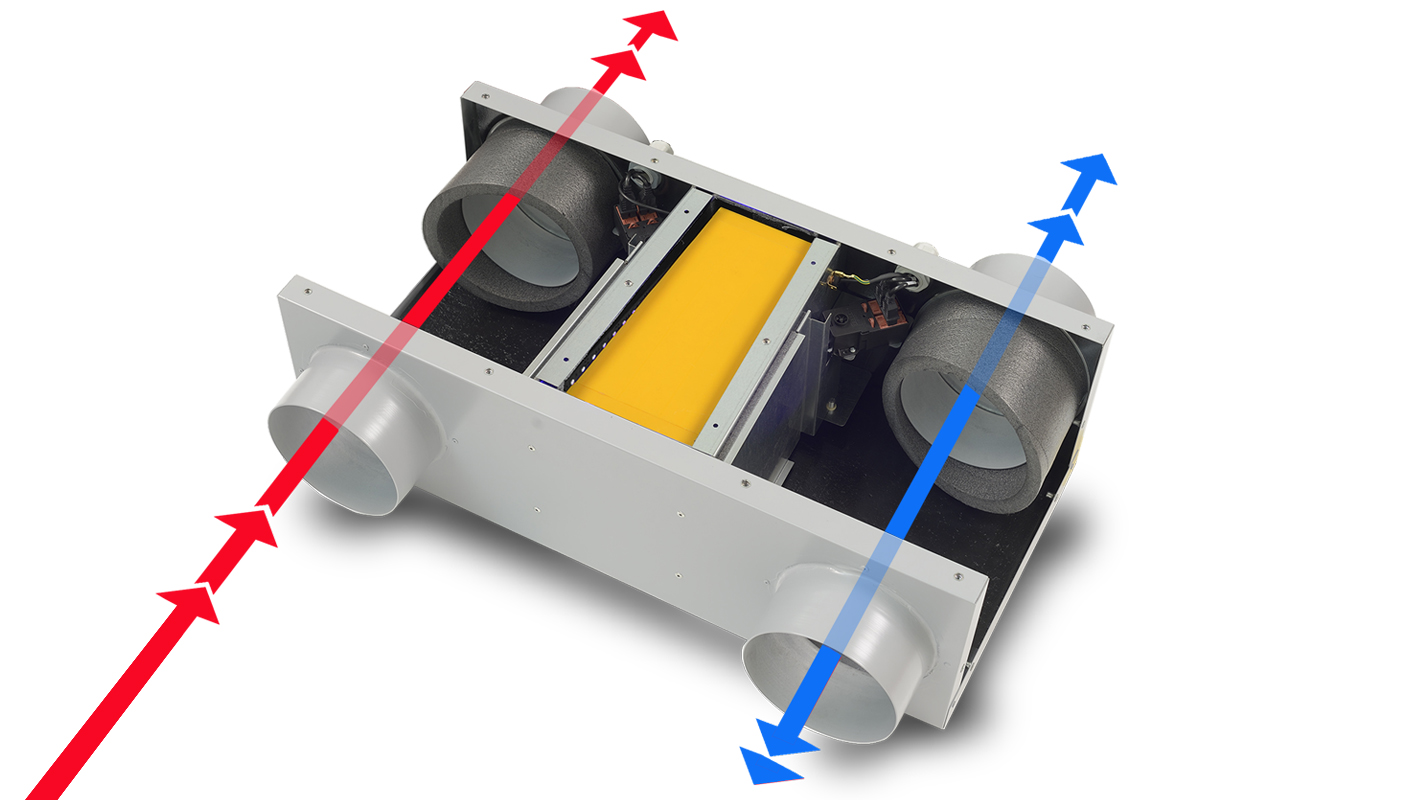

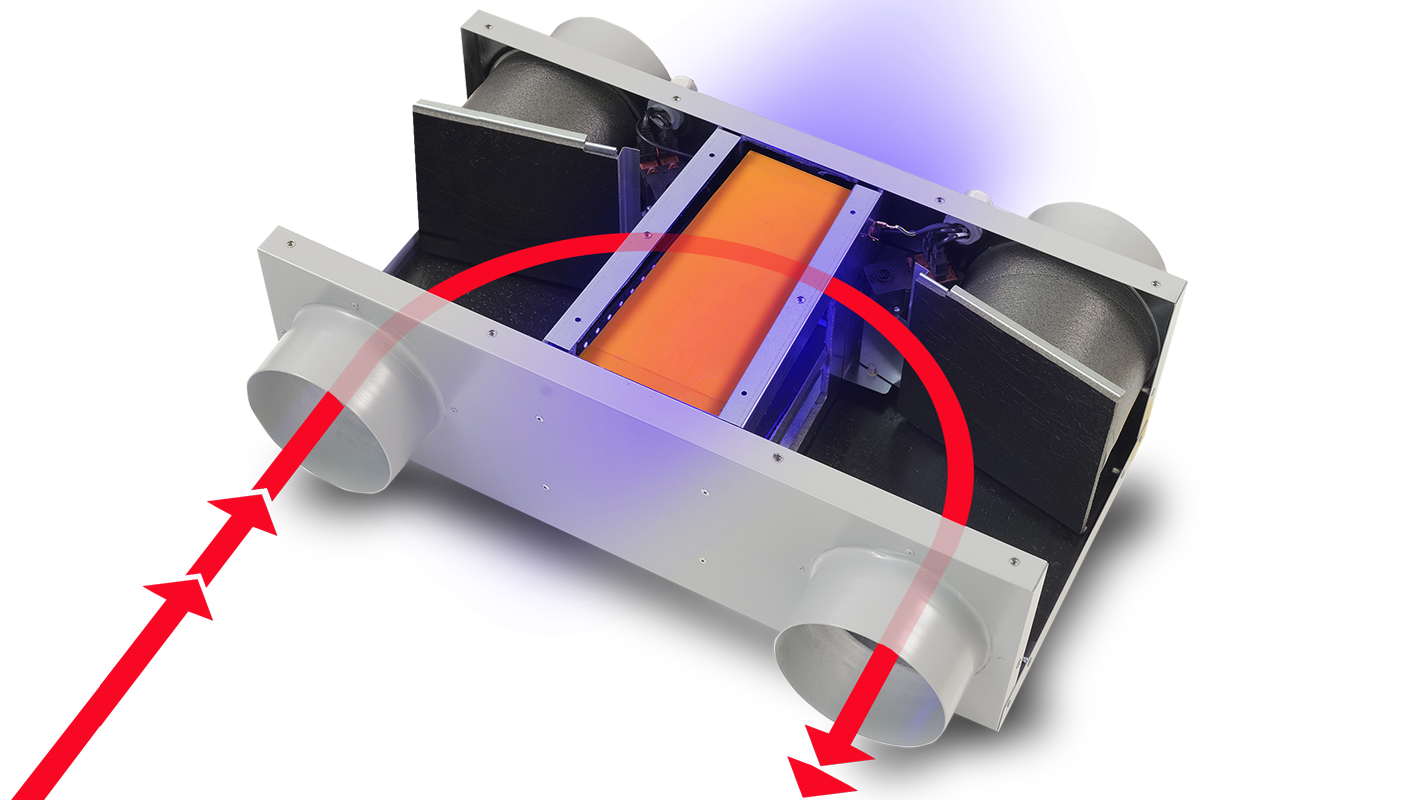

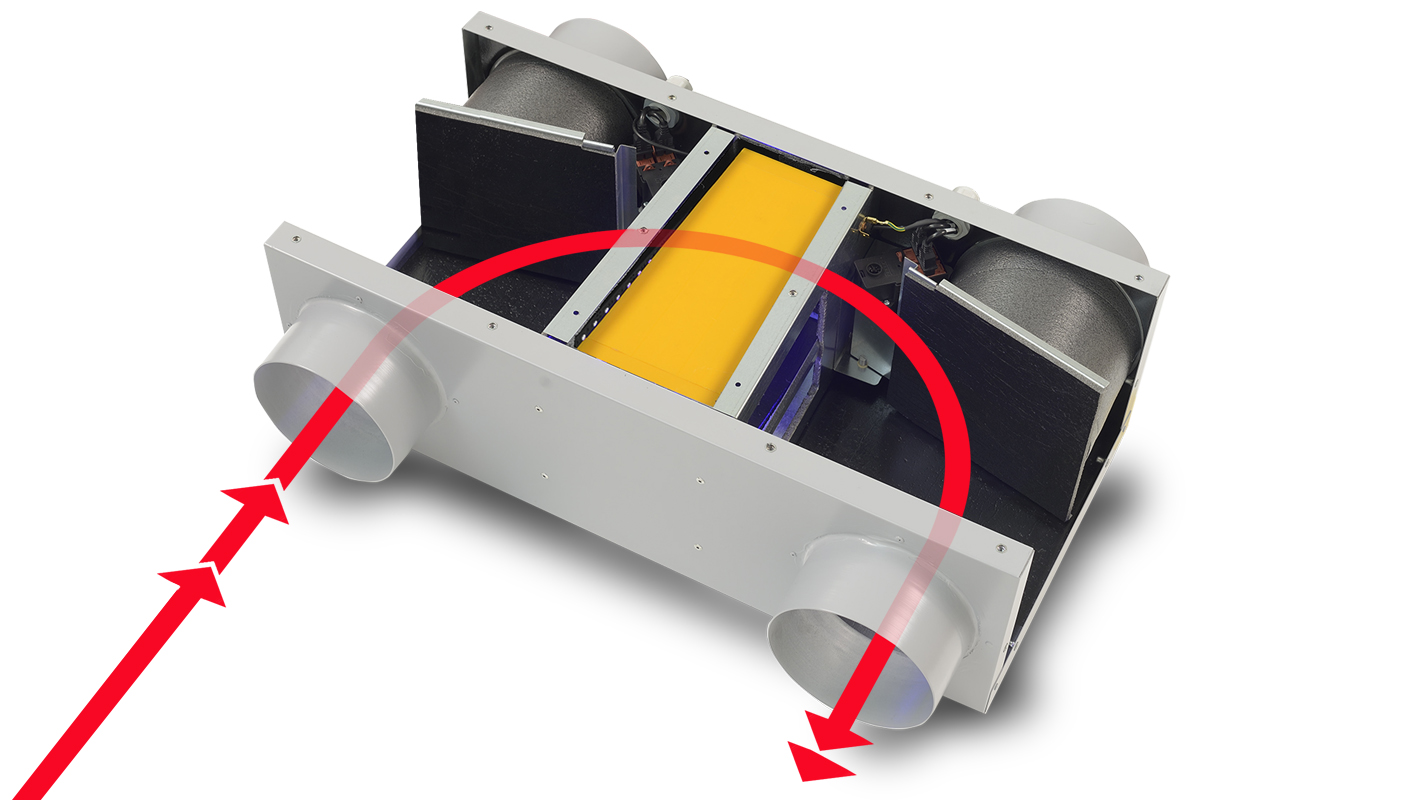

• When used as a traditional Heat Recovery Unit, recommended operating mode when the house is occupied, VORT HA PHANTOM 200 grants the effective, quiet, low cost indoor ventilation, reducing relative humidity and CO2 concentrations. When instead operated as air purifier, suggested running mode when the house is unoccupied, thanks to its patented filtering system, VORT HA PHANTOM 200 dramatically reduces concentration of live bacteria, NOX, VOC and CO, at the same time halving usual operating costs.
• VORT HA PHANTOM 200 BP is equipped with:

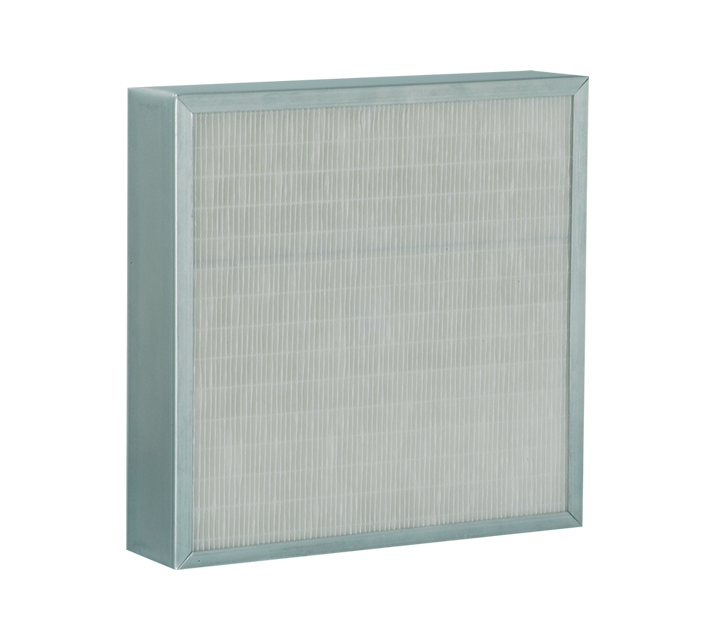

o 2 M5 filters effective against PM10 usually present in fresh outdoor air (the F7 filter, available as optional, on supply grants an even more effective action).

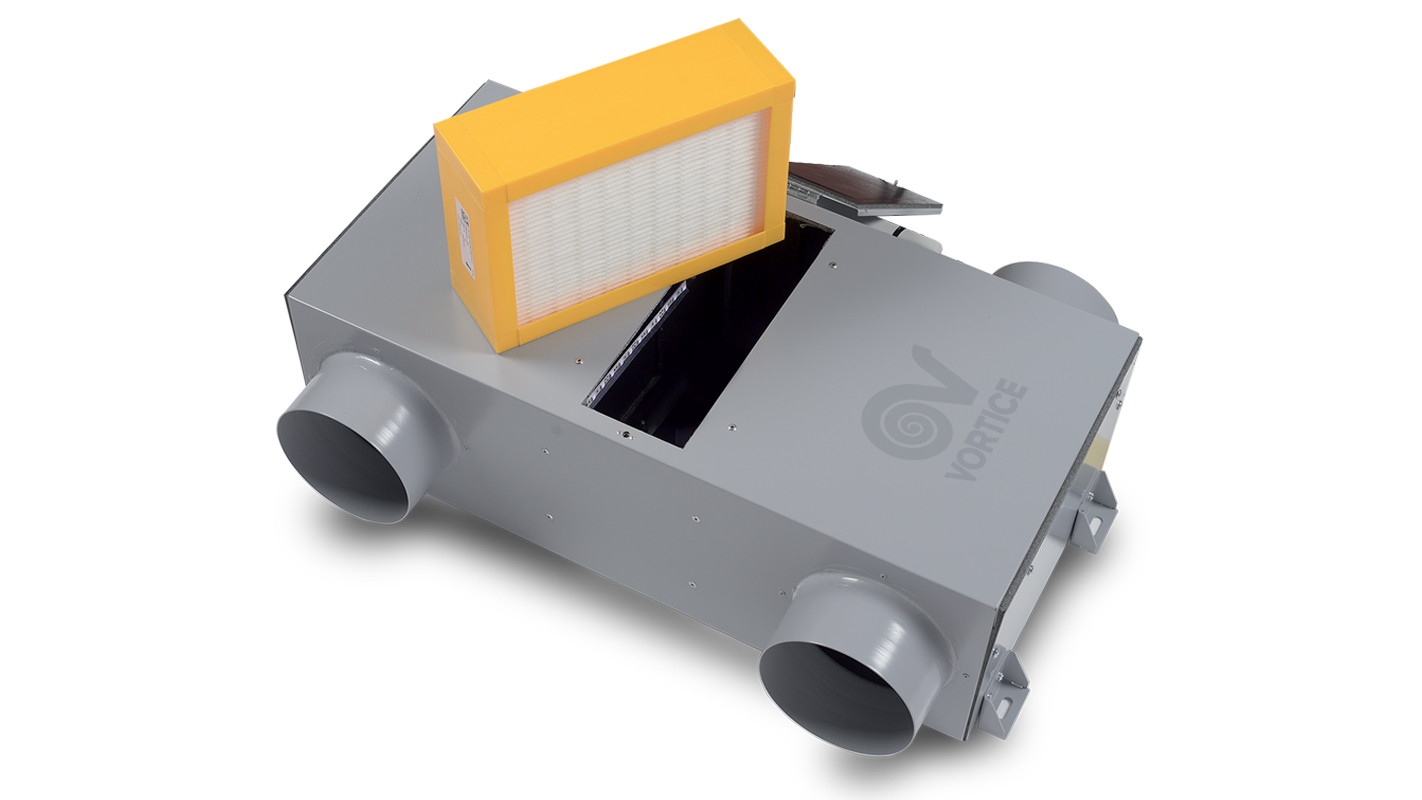

o A patented filter effective against bacteria, NOX, VOC and CO.
• Noise levels, consumptions and performances remain the same of stand alone VORT HRI PHANTOM 200 BP.
• VORT HA PHANTOM 200 BP is equipped with:
o 2 M5 filters effective against PM10 usually present in fresh outdoor air (the F7 filter, available as optional, on supply grants an even more effective action).
o A patented filter effective against bacteria, NOX, VOC and CO.
• Noise levels, consumptions and performances remain the same of stand alone VORT HRI PHANTOM 200 BP.
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)1,0
-
Max absorbed power (W)102
-
Max ambient temperature for continuous operation (°C)40
-
Nominal diameter (mm)125
-
Voltage (V)230
-
Weight (Kg)34
-
Breakout sound power LWA [dB(A)]43,1
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]22,6
-
Max airflow (l/s)57,2
-
Max airflow (m³/h)206
-
Max pressure (mmH2O)43,5
-
Max pressure (Pa)426
-
Sound power at exhaust inlet LWA [dB(A)]36,5
-
Sound power at supply outlet LWA [dB(A)]43,3
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]16,0
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]22,8
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-36,3
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-74,7
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-11,7
-
Declared typeUVR-B: bidirezionale
-
Type of drivevariatore di velocità: VSD
-
Type of heat recovery system HRSa recupero
-
Thermal efficiency of heat recovery at reference airflow [%]87,8
-
Max airflow [m3/h]163
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]100,0
-
Sound power LWA [dB(A)]43
-
Reference airflow [m3/s]0,0317
-
Reference ? pressure [Pa]50
-
SPI [W/(m3/h)]0,39474
-
Control factor CTRL0,85
-
Control typeamb. centralizzato
-
Max internal leakage rate [%]8,5
-
Max external leakage rate [%]8,5
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]402
-
AHS temperate annual energy saved [kWh primary energy/y]4570
-
AHS cold annual energy saved [kWh primary energy/y]8940
-
AHS warm annual energy saved [kWh primary energy/y]2067
-

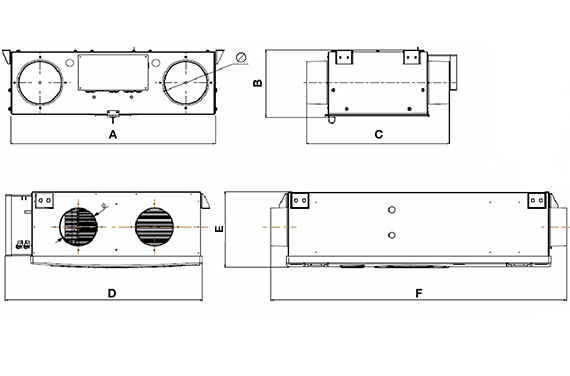

Size A (mm)714
-
Size B (mm)238
-
Size C (mm)499
-
Size D (mm)643
-
Size E (mm)248
-
Size F (mm)964
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

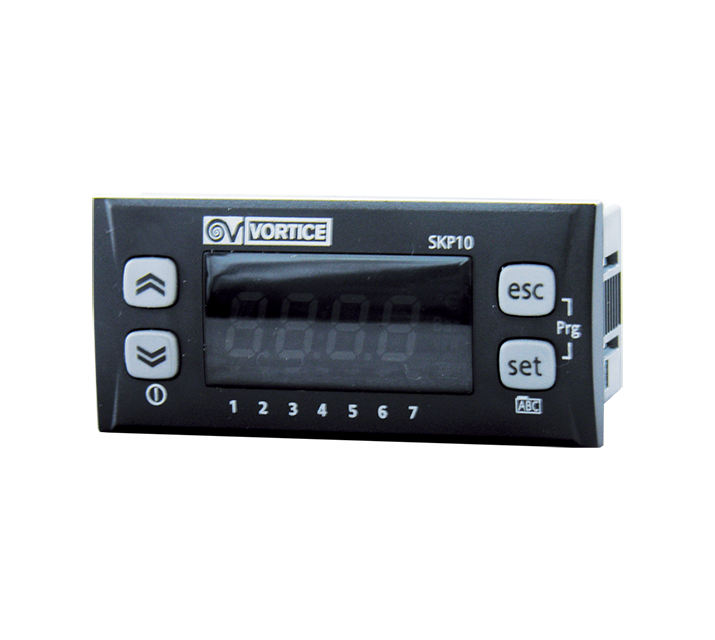

PANNELLO INSTALLATORE SKP10
Setting of machine parameters during initial installation procedures:
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...
ELECTRIC HEATER 500
Electric duct heater, intended for installation in covered spaces, with ambient temperature between -30°C +50°C, in free air, without dust, fluff and chemical impurities.
