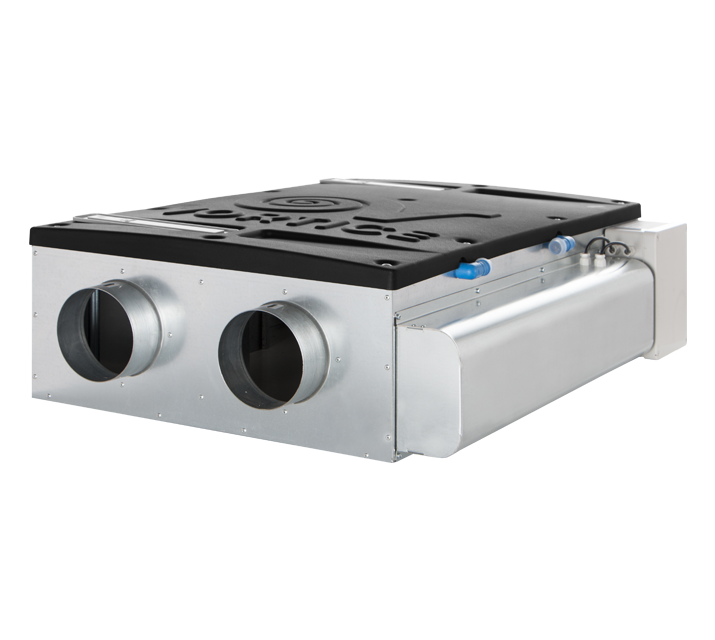

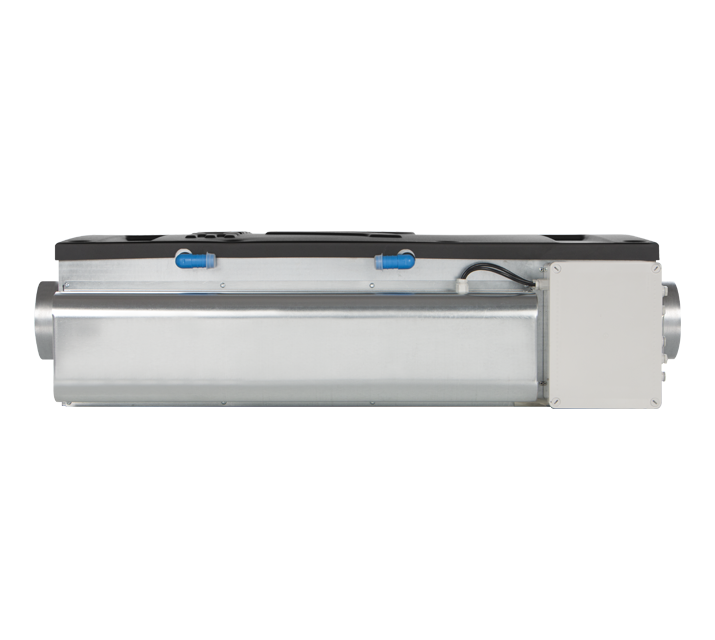

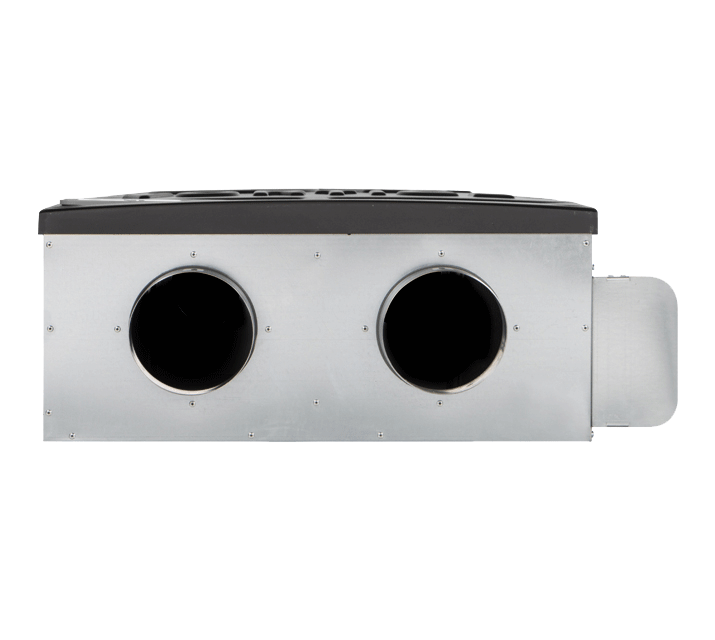

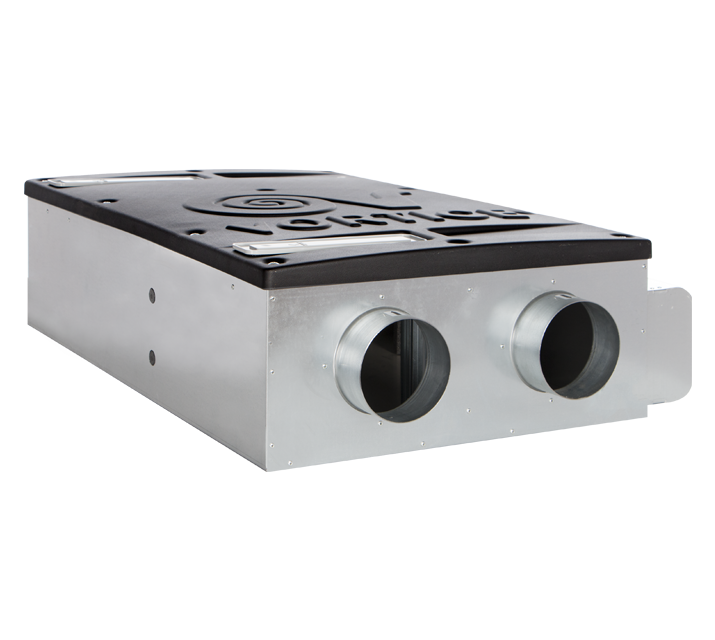

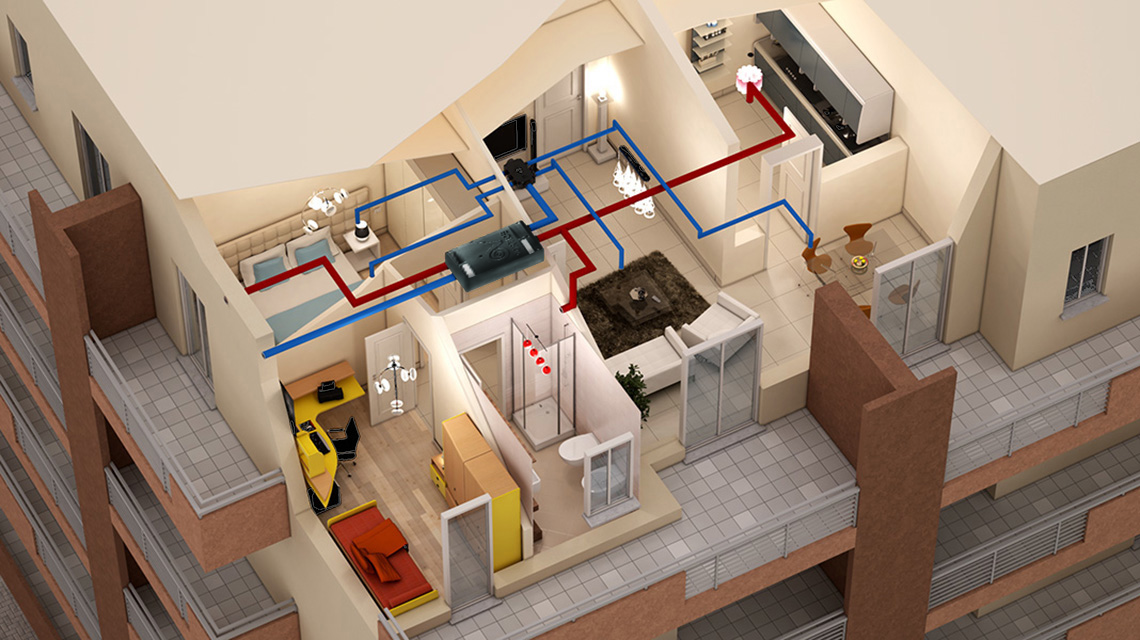

Description
• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent material.
• Nominal diameter for duct connections: 125 mm.
• EC brushless motors with shafts turning in ball bearings, coupled directly to centrifugal impellers; 3 speeds selectable at the moment of installation.
• Ultra high efficiency cross-flow type heat recovery unit manufactured in plastic (polyethylene).
• 100% by-pass, automatically operated.
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x ePM10 50% (F5) filters; ePM1 70% (F7) filter for the supply port, available as optional.
• Electronic control system.
• Tie-bolts for suspended installation supplied as standard.
• Nominal diameter for duct connections: 125 mm.
• EC brushless motors with shafts turning in ball bearings, coupled directly to centrifugal impellers; 3 speeds selectable at the moment of installation.
• Ultra high efficiency cross-flow type heat recovery unit manufactured in plastic (polyethylene).
• 100% by-pass, automatically operated.
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x ePM10 50% (F5) filters; ePM1 70% (F7) filter for the supply port, available as optional.
• Electronic control system.
• Tie-bolts for suspended installation supplied as standard.
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
IPX2
-
Max absorbed current (A)1,4
-
Max absorbed power (W)165
-
Nominal diameter (mm)150
-
Voltage (V)220-240
-
Weight (Kg)37
-
Breakout sound power LWA [dB(A)]51,0
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]30,5
-
Max airflow (l/s)97,0
-
Max airflow (m³/h)350
-
Max pressure (mmH2O)58,0
-
Max pressure (Pa)568
-
Sound power at exhaust inlet LWA [dB(A)]37,8
-
Sound power at supply outlet LWA [dB(A)]37,2
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]17,3
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]16,7
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-38,0
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-77,0
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-13,0
-
Declared typeUVR-B: bidirezionale
-
Type of drivevariatore di velocità: VSD
-
Type of heat recovery system HRSa recupero
-
Thermal efficiency of heat recovery at reference airflow [%]90,4
-
Max airflow [m3/h]280
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]165,0
-
Sound power LWA [dB(A)]51
-
Reference airflow [m3/s]0,0544
-
Reference ? pressure [Pa]70
-
SPI [W/(m3/h)]0,35204
-
Control factor CTRL0,85
-
Control typeamb. centralizzato
-
Max internal leakage rate [%]8,7
-
Max external leakage rate [%]5,2
-
Mixing rateNA
-
Position and description of visual filter warningVedi libretto istruzioni
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]364
-
AHS temperate annual energy saved [kWh primary energy/y]4641
-
AHS cold annual energy saved [kWh primary energy/y]9078
-
AHS warm annual energy saved [kWh primary energy/y]2098
-
Ø (mm)150
-

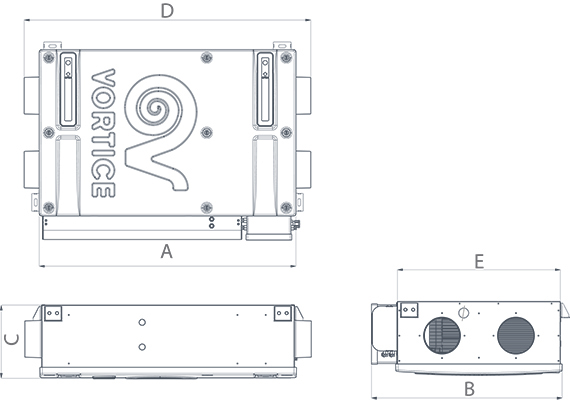

Size A (mm)1183
-
Size B (mm)740
-
Size C (mm)288
-
Size D (mm)1287
-
Size E (mm)650
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
PANNELLO INSTALLATORE SKP10
Setting of machine parameters during initial installation procedures:
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...

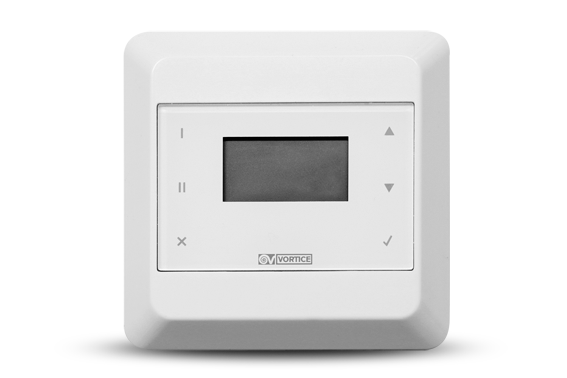

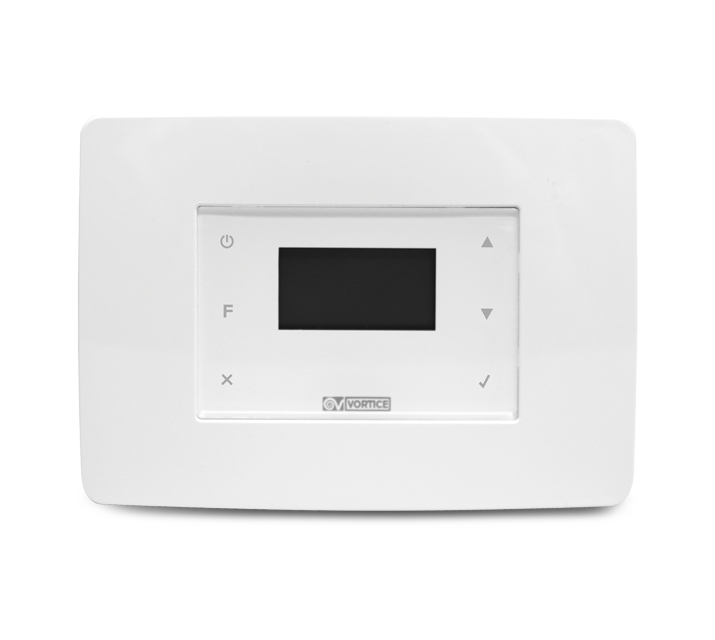

CB LCD R
Remote control panel with LCD display for flush mounting in wall box code 22732.

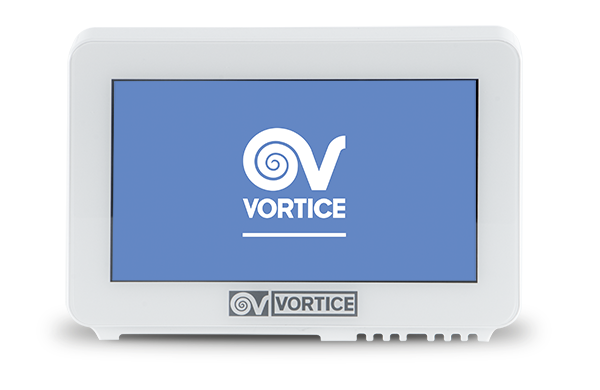

CB TOUCH LCD W
