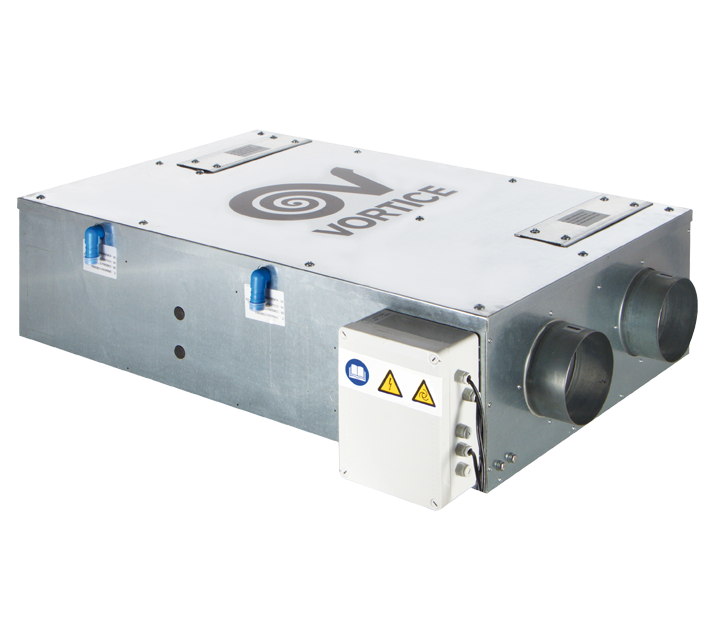

Description
• Sheet steel housing, internally insulated, fire resistant according wit DIN EN 13501.
• High efficiency backward curved centrifugal fans driven by 3 speeds EC (brushless) motors.
• High efficiency plastic cross-counterflow heat exchanger.
• Automatic thermodynamic by-pass.
• Integrated frost protection.
• Nominal diameter of duct connections 125 mm.
• 2 x ePM10 50% (M5) filters. ePM1 70% (F7) filter for supply available as optional.
• Remote, wired control panel allowing:
o To Switch on/off the product
o To select the fan speeds
o To show the filters status
• Brackets for suspended installation.
• High efficiency backward curved centrifugal fans driven by 3 speeds EC (brushless) motors.
• High efficiency plastic cross-counterflow heat exchanger.
• Automatic thermodynamic by-pass.
• Integrated frost protection.
• Nominal diameter of duct connections 125 mm.
• 2 x ePM10 50% (M5) filters. ePM1 70% (F7) filter for supply available as optional.
• Remote, wired control panel allowing:
o To Switch on/off the product
o To select the fan speeds
o To show the filters status
• Brackets for suspended installation.
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)2,0
-
Max absorbed power (W)240
-
Nominal diameter (mm)150
-
Voltage (V)230
-
Weight (Kg)33
-
Breakout sound power LWA [dB(A)]51,0
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]30,5
-
Max airflow (l/s)105
-
Max airflow (m³/h)380
-

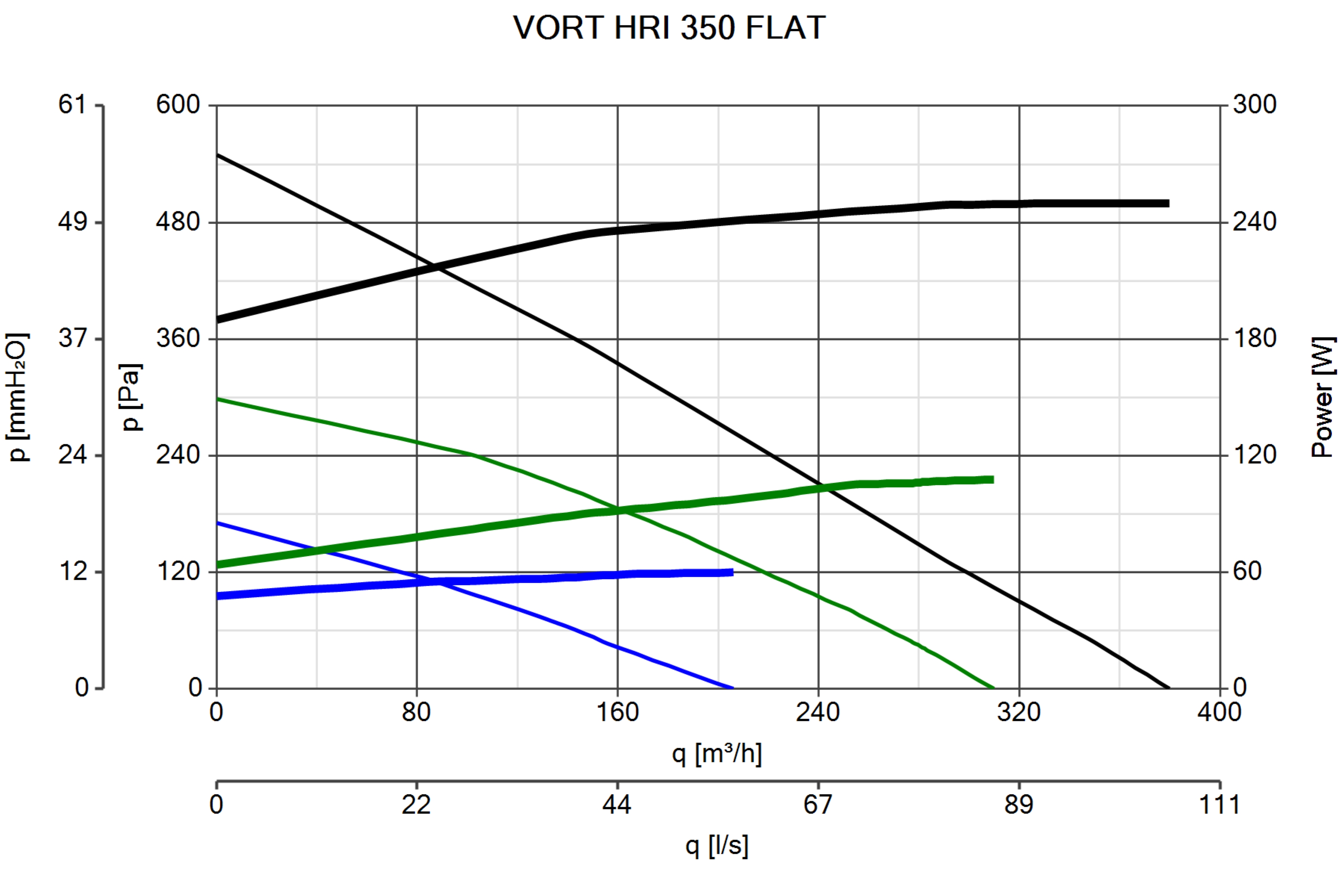

Max pressure (mmH2O)56,0
-
Max pressure (Pa)550
-
Sound power at exhaust inlet LWA [dB(A)]37,8
-
Sound power at supply outlet LWA [dB(A)]37,2
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]17,3
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]16,7
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneA
-
Declared typeUVR-B: bidirezionale
-
Type of drivevelocità multiple: VM
-
Type of heat recovery system HRSa recupero
-
Control factor CTRL0,85
-
Control typeamb. centralizzato
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-38,0
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-77,0
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-13,0
-
Thermal efficiency of heat recovery at reference airflow [%]90,4
-
Max airflow [m3/h]280
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]165,0
-
Sound power LWA [dB(A)]51
-
Reference airflow [m3/s]0,0544
-
Reference ? pressure [Pa]70
-
SPI [W/(m3/h)]0,35204
-
Max internal leakage rate [%]3,2
-
Max external leakage rate [%]5,3
-
Mixing rateNA
-
Position and description of visual filter warningVedi libretto istruzioni
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]364
-
AHS temperate annual energy saved [kWh primary energy/y]4641
-
AHS cold annual energy saved [kWh primary energy/y]9078
-
AHS warm annual energy saved [kWh primary energy/y]2098
-

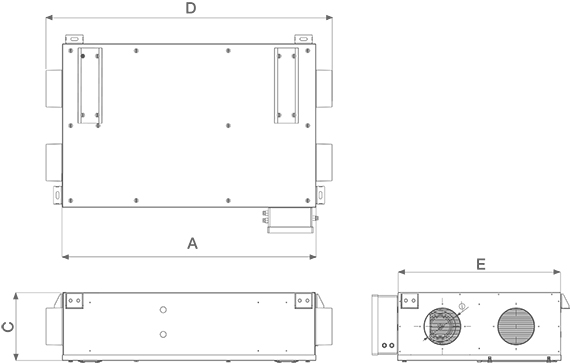

Ø (mm)150
-
Size A (mm)1183
-
Size B (mm)740
-
Size C (mm)288
-
Size D (mm)1287
-
Size E (mm)650
