Technical Data Sheet

  • Filter class on extract
    ePM10 50%
  • Filter class on supply
    ePM10 50%
  • Frequency (Hz)
    50/60
  • Insulation class
  • IP
    X2
  • Max absorbed current (A)
    1,00
  • Max absorbed power (W)
    125
  • Nominal diameter (mm)
    125
  • Voltage (V)
    220-240
  • Weight (Kg)
    25
  • Breakout sound power LWA at Max speed [dB (A)]
    53,4
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    32,8
  • Max airflow (l/s)
    49
  • Max airflow (m³/h)
    176
  • Max pressure (mmH2O)
    44
  • Max pressure (Pa)
    430
  • Sound power at extract side at Max speed LWA [dB (A)]
    57,1
  • Sound power at supply side at Max speed LWA [dB (A)]
    57,4
  • Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]
    36,6
  • Sound pressure at 3m at Max speed at supply side Lp [dB (A)]
    36,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

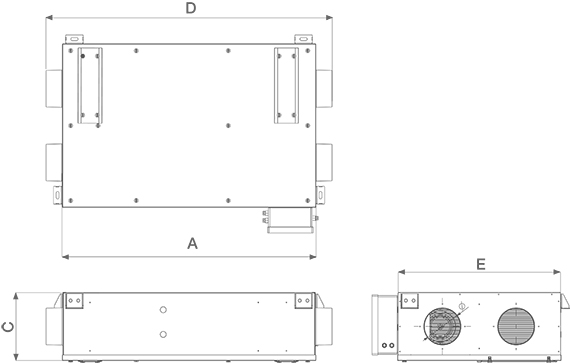

  • Ø (mm)
    125
  • Size A (mm)
    860
  • Size B (mm)
    641
  • Size C (mm)
    234
  • Size D (mm)
    969
  • Size E (mm)
    551
quota

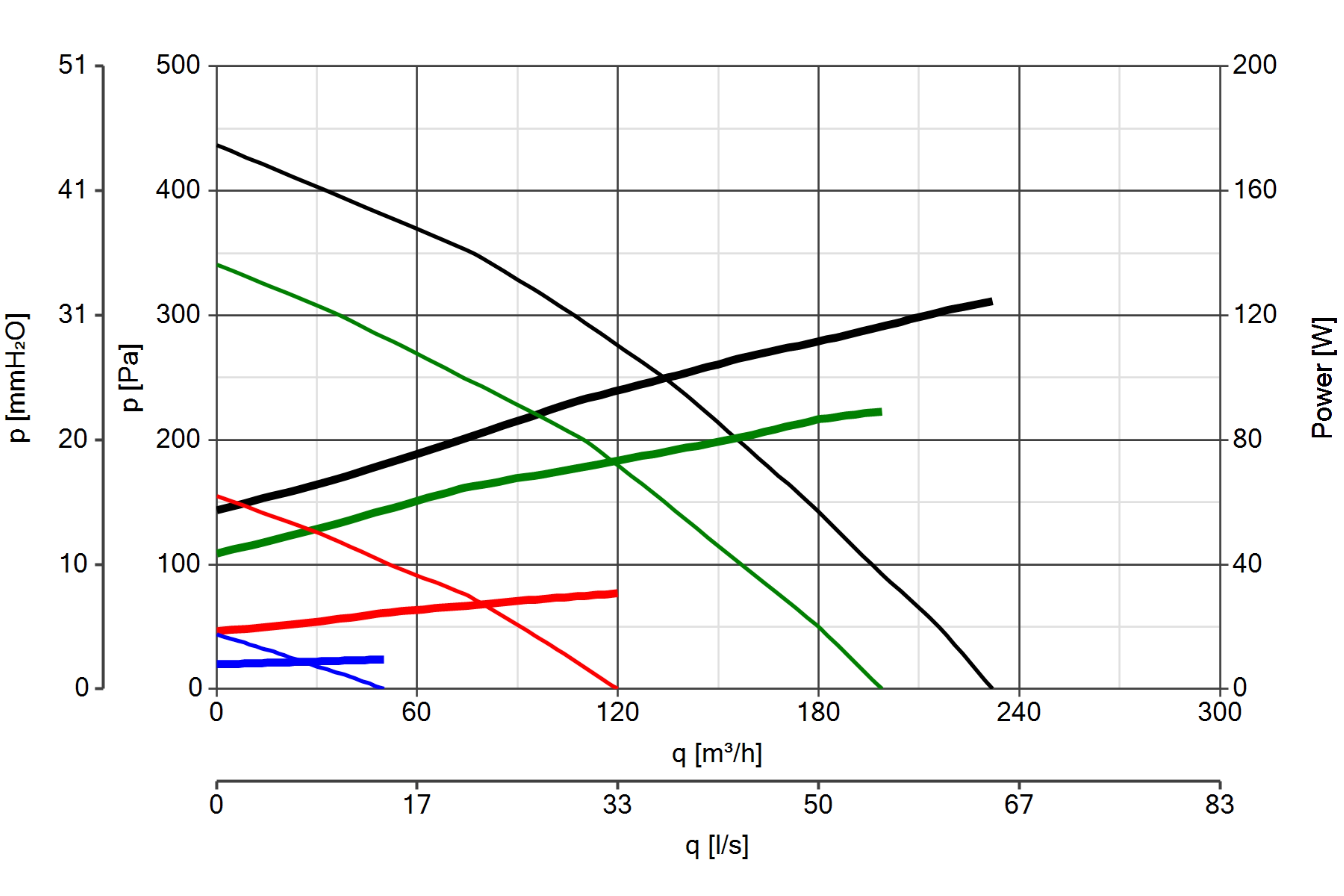

Curva_JPG_10920-Curve_per_Catalogo
