Description

Read full descriptionClose description

Certifications

  • CE CE
Energy label Energy label

Technical Data Sheet

  • Filter class on extract
    ePM10 50%
  • Filter class on supply
    ePM10 50%
  • Frequency (Hz)
    50/60
  • Insulation class
  • IP
    X2
  • Max absorbed current (A)
    1,7
  • Max absorbed power (W)
    250
  • Nominal diameter (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    35
  • Breakout sound power LWA at Max speed [dB (A)]
    58,6
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    38,1
  • Heat recovery efficiency at reference airflow (%)
    88,4
  • Max airflow (l/s)
    100
  • Max airflow (m³/h)
    360
  • Max pressure (mmH2O)
    53
  • Max pressure (Pa)
    520
  • Sound power at extract side at Max speed LWA [dB (A)]
    59,0
  • Sound power at supply side at Max speed LWA [dB (A)]
    59,4
  • Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]
    38,5
  • Sound pressure at 3m at Max speed at supply side Lp [dB (A)]
    38,8


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

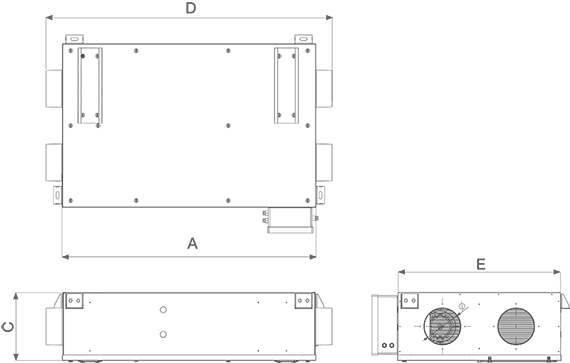

  • Ø (mm)
    150
  • Size A (mm)
    1183
  • Size B (mm)
    740
  • Size C (mm)
    283
  • Size D (mm)
    1287
  • Size E (mm)
    650
quota

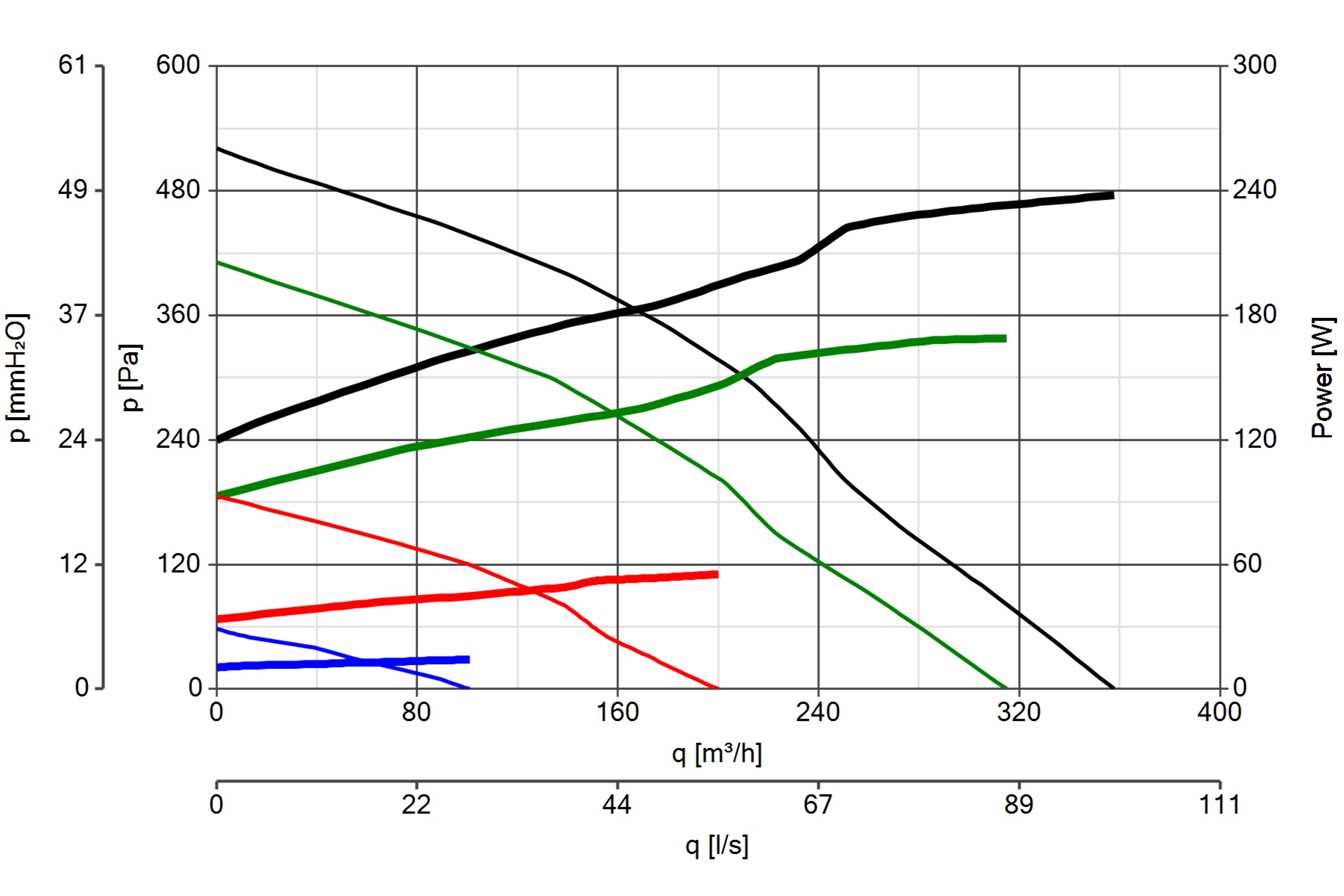

Curva_JPG_10917-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.

Accessories

Discover accessories related to the product

SCI503
SCI503
Flush mounting 503 box able to house the control unit.
PSC-B
PSC-B
Face plate (anthracite grey).
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.

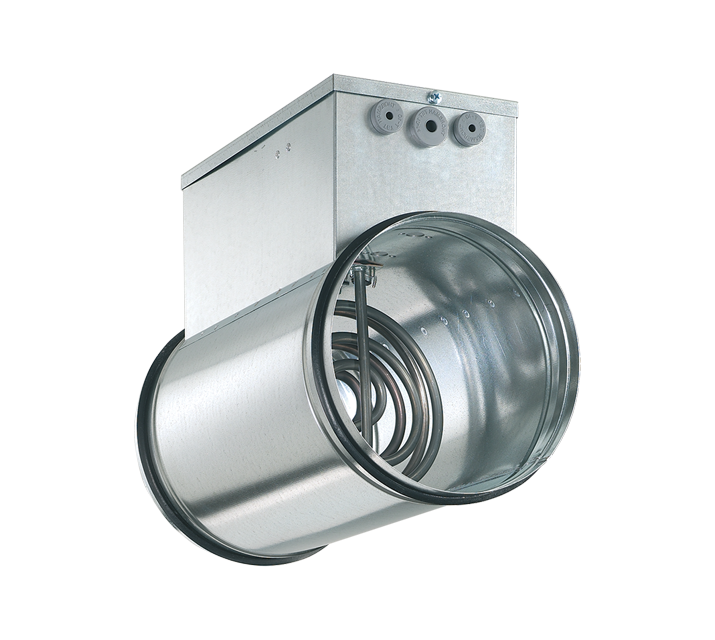

ELECTRIC HEATER 750
ELECTRIC HEATER 750

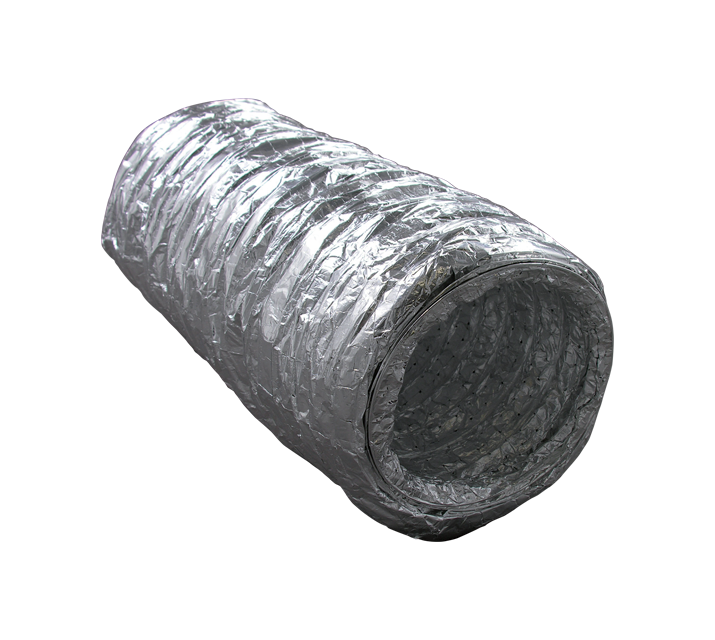

TUBO SILENZIATORE D.150 L=500
TUBO SILENZIATORE D.150 L=500
NA 150 (ATTENUATORE RUMORE)
NA 150 (ATTENUATORE RUMORE)
Noise attenuator to be installed in the ventilation system, always after the fan, and/or the filter box/duct heater, useful when the noise level required is particularly low. Worki...
CB TOUCH LCD W
CB TOUCH LCD W
FTR F7 227X212X24
FTR F7 227X212X24
ePM1 70% (F7) filter, dimensions: 227 x 212 x 24 mm.
FTR F7 230X250X48
FTR F7 230X250X48
ePM1 70% (F7) filter. Dimensions: 230x250x48 mm.
