Description
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)1,0
-
Max absorbed power (W)102
-
Nominal diameter (mm)125
-
Voltage (V)230
-
Weight (Kg)27
-
Breakout sound power LWA [dB(A)]43,1
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]22,6
-

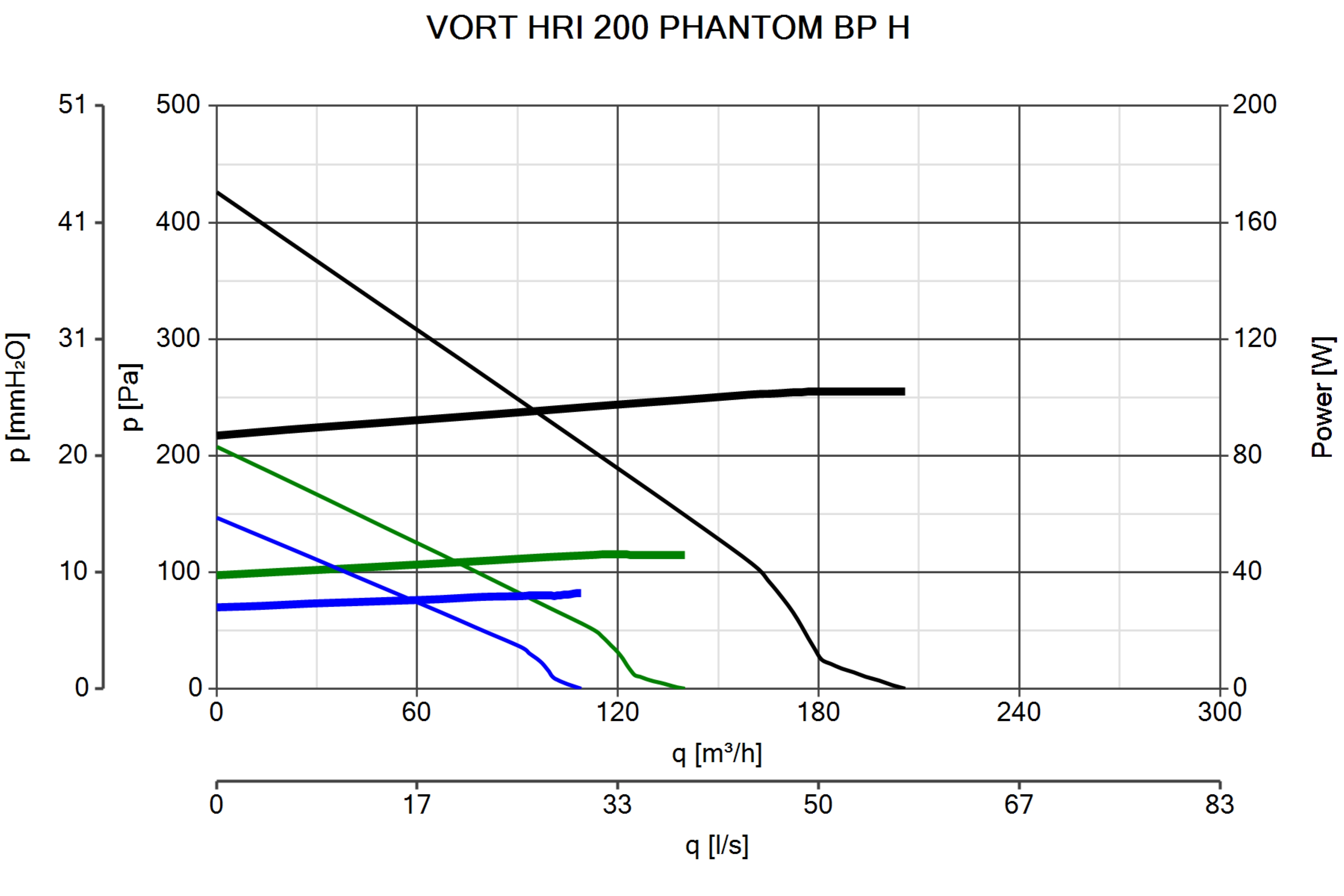

Max airflow (l/s)57,2
-
Max airflow (m³/h)206
-
Max pressure (mmH2O)43,5
-
Max pressure (Pa)426
-
Sound power at exhaust inlet LWA [dB(A)]36,5
-
Sound power at supply outlet LWA [dB(A)]43,3
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]16,0
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]22,8
-
Declared typeUVR-B: bidirezionale
-
Type of drivevariatore di velocità: VSD
-
Type of heat recovery system HRSa recupero
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneA
-
Control factor CTRL0,85
-
Control typeamb. centralizzato
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-36,3
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-74,7
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-11,7
-
Thermal efficiency of heat recovery at reference airflow [%]84
-
Max airflow [m3/h]163
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]100,0
-
Sound power LWA [dB(A)]43
-
Reference airflow [m3/s]0,0317
-
Reference ? pressure [Pa]50
-
SPI [W/(m3/h)]0,39474
-
Max internal leakage rate [%]2,64
-
Max external leakage rate [%]4,21
-
Mixing rateNA
-
Position and description of visual filter warningVedi libretto istruzioni
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]402
-
AHS temperate annual energy saved [kWh primary energy/y]4570
-
AHS cold annual energy saved [kWh primary energy/y]8940
-
AHS warm annual energy saved [kWh primary energy/y]2067
-
Ø (mm)125
-
Size A (mm)868
-
Size B (mm)643
-
Size C (mm)248
-
Size D (mm)963,5
-
Size E (mm)551
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
PANNELLO INSTALLATORE SKP10
Setting of machine parameters during initial installation procedures:
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...
- speeds
- motors independently adjustable
- defrosting
- connection to any externa...

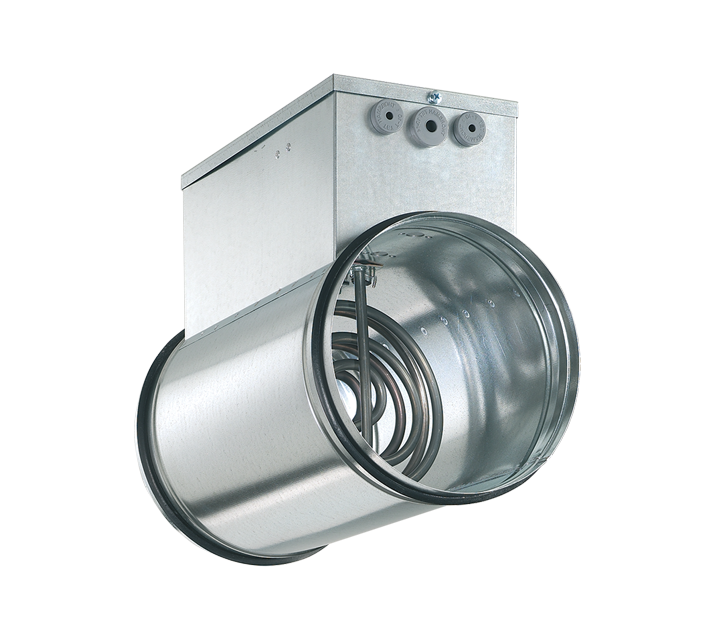

ELECTRIC HEATER 500
Electric duct heater, intended for installation in covered spaces, with ambient temperature between -30°C +50°C, in free air, without dust, fluff and chemical impurities.
