Description
VORT SANIKIT is a sanitizing device designed to solve the problem in combination with the centralized heat recovery units of the VORTICE residential range.
Thanks to the photocatalysis module it's able to perform an effective action against bad smells, allergens (molds, spores, mites, etc.) and indoor pathogens (bacteria and viruses), thus contributi to preserve the health of the occupants.

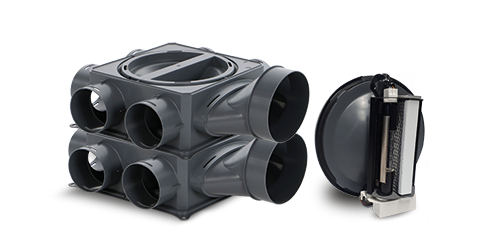

VORT SANIKIT 250 consists of:
• Air distribution plenum in plastic material.
• Photocatalysis module; inserted in the plenum and integrated with one of the closing caps, to facilitate the extraction and, with it, the replacement (average every two years) of the UV lamp that activates the process, it is able to eliminate bacteria and viruses in the treated air.
• Silenced helicocentrifugal fan (sold separately), characterized by reduced radial dimensions for easier integration even in small spaces, driven by an electronic commutated motor (EC brushless), to guarantee low consumption, perfectly suited to continuous operation 7/24 . The speed adjustment by means of a potentiometer, integrated or remote (the latter offered as an option), allows to adapt the flow rate of the ambient air to be sanitized accordingly to the needs.
Thanks to the photocatalysis module it's able to perform an effective action against bad smells, allergens (molds, spores, mites, etc.) and indoor pathogens (bacteria and viruses), thus contributi to preserve the health of the occupants.
VORT SANIKIT 250 consists of:
• Air distribution plenum in plastic material.
• Photocatalysis module; inserted in the plenum and integrated with one of the closing caps, to facilitate the extraction and, with it, the replacement (average every two years) of the UV lamp that activates the process, it is able to eliminate bacteria and viruses in the treated air.
• Silenced helicocentrifugal fan (sold separately), characterized by reduced radial dimensions for easier integration even in small spaces, driven by an electronic commutated motor (EC brushless), to guarantee low consumption, perfectly suited to continuous operation 7/24 . The speed adjustment by means of a potentiometer, integrated or remote (the latter offered as an option), allows to adapt the flow rate of the ambient air to be sanitized accordingly to the needs.
Certifications
-
CE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Max absorbed current (A)0,15
-
Voltage (V)230
-
Weight (Kg)0,80
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

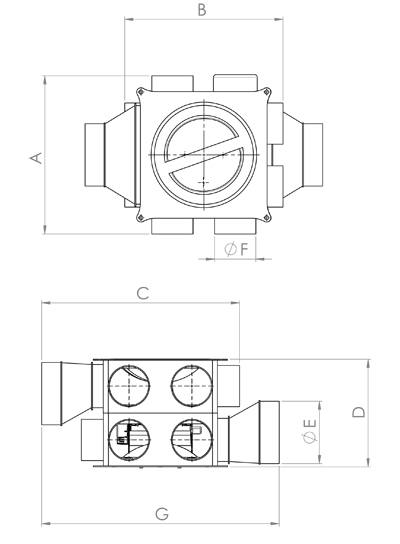

Size A (mm)318
-
Size B (mm)299
-
Size C (mm)399
-
Size D (mm)215
-
Size E (mm)Ø 125
-
Size F (mm)Ø 85
-
Size G (mm)478
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
IN-LINE-S 100
Galvanized steel sheet backdraught shutter with aluminium fins and return springs to prevent air back-draughts or penetration of rain when the unit is turned off.
