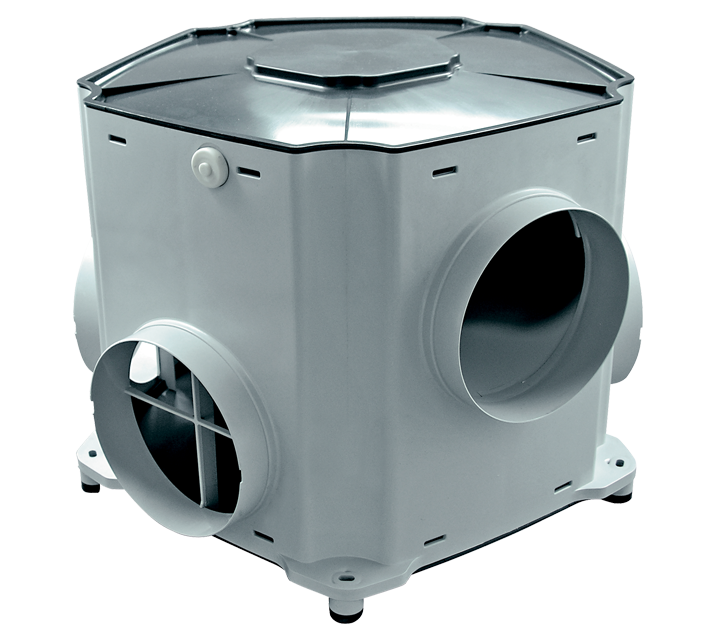

VORT LETO MEV - Vortice

Description

• Enclosure made of plastic material, colour grey, resistant to ageing.
• 4 ports for connection to extractor ducts, nominal diameter 125 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 3 speed EC motor with shaft turning in ball bearings, coupled to a centrifugal impeller; electronic control provided by microprocessor.
• Air flow between 72 m3/h and 500 m3/h
• 2 x closure plug for connection ports, diameter 125 mm.
• IMQ SAFETY certification.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,55
Max absorbed current at Min speed (A)

0,4
Max absorbed power at Max speed (W)

70
Max ambient temperature for continuous operation (°C)

50
Power absorbed at 1st speed (W)

3,2
Voltage (V)

230
Weight (Kg)

3,32
Airflow at 1st speed (l/s)

20

Airflow at 1st speed (m³/h)

72
Max airflow at Max speed (l/s)

138,9
Max airflow at Max speed (m³/h)

500
Max pressure at Max speed (mmH20)

41,8
Max pressure at Max speed (Pa)

410
Max RPM

2150
Min RPM

400
Pressure at 1st speed (mmH20)

1.035
Pressure at 1st speed (Pa)

10
Sound pressure at 3m calculated in free field Lp [dB(A)]

42,2

Size A (mm)

387
Size B (mm)

377
Size C (mm)

284
Size D (mm)

Ø 125
