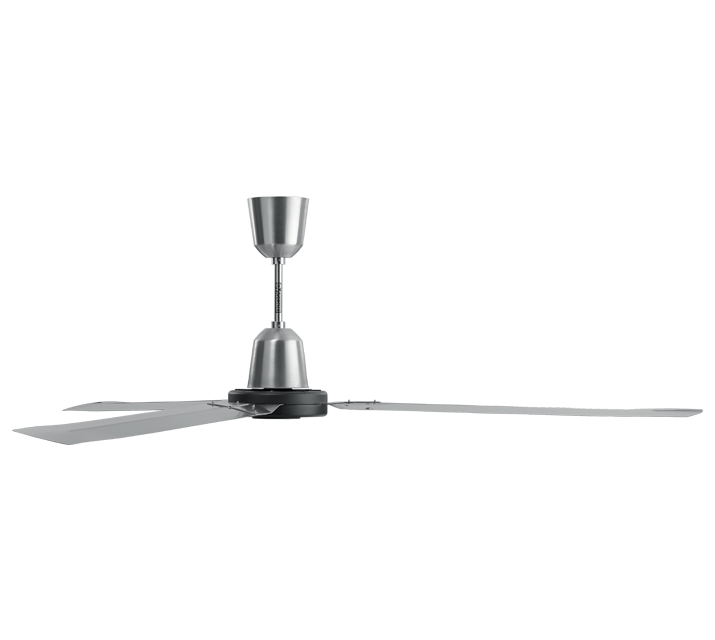

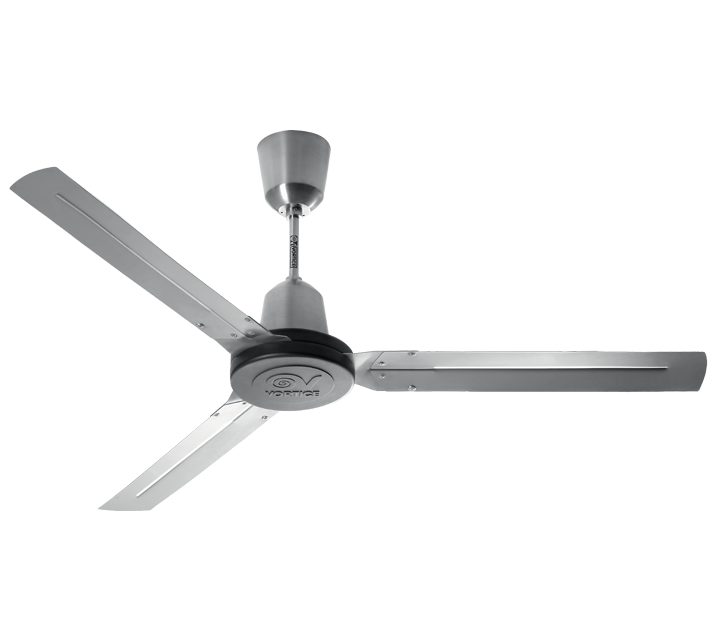

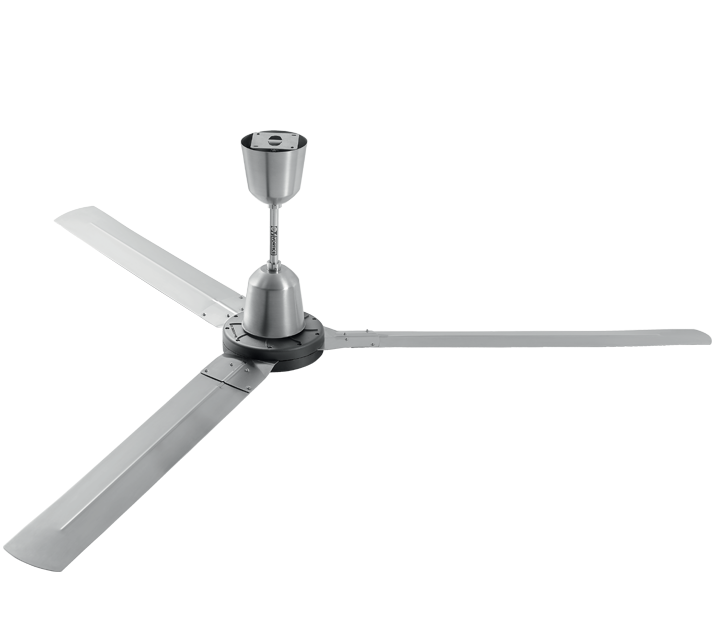

Description
• Die-casted epoxy painted motor covers, colour black, sealed with EPDM gaskets to prevent dust or water entry.
• Cups made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• Nominal diameter of blades 2000 mm.
• Single-phase external rotor motor, shaft mounted on ball bearings. Engine covers painted with black epoxy powder, embossed finish.
• 3 blades made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.

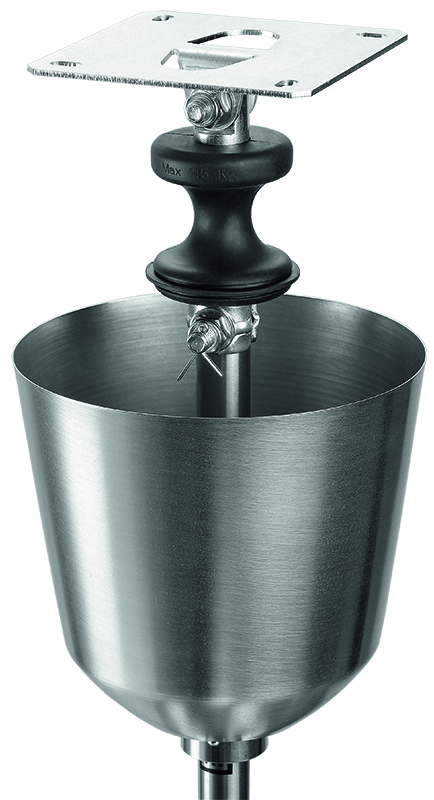

• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).
• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
• Cups made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• Nominal diameter of blades 2000 mm.
• Single-phase external rotor motor, shaft mounted on ball bearings. Engine covers painted with black epoxy powder, embossed finish.
• 3 blades made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).
• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter2000
-
Frequency (Hz)50/60*
-
Insulation classI°
-
IP55
-
Max absorbed current (A)0,38
-
Max absorbed power (W)85
-
Max ambient temperature for continuous operation (°C)50
-
Motor power (W)85
-
Voltage (V)230
-
Weight (Kg)9,1
-
Max airflow (m³/h)22050
-
Max airflow (m³/min)367,5
-
Max flow speed (m/s)1,35
-
RPM186
-
Service value (m³/min)/W4,32
-
Sound power Lw [dB(A)]56,4
-
Sound pressure Lp [dB (A)] at 3 m38,85
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

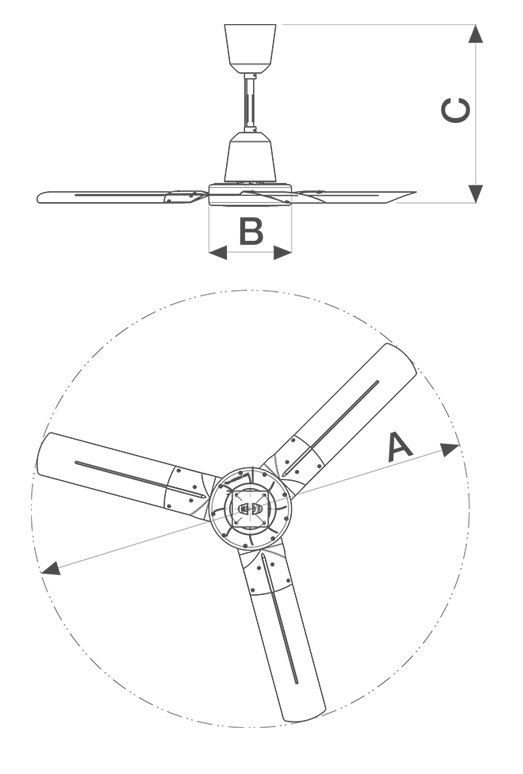

Size A (mm)Ø 2000
-
Size B (mm)Ø 230
-
Size C (mm)495
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

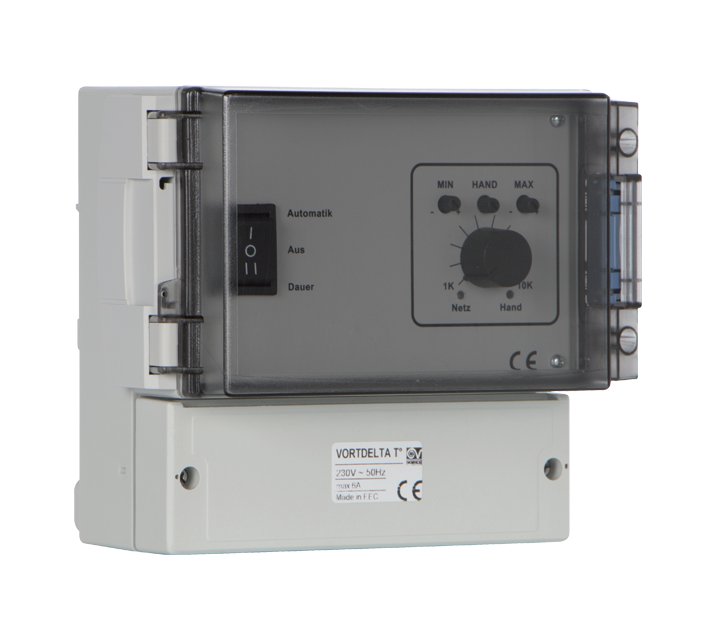

VORT DELTA T
Multiple speed controller ensuring effective destratification to grant energy savings; VORT DELTA T automatically adapt the speed of up to 15 ceiling fans according to temperature ...
SCRR/M
Electronic, reversible speed controller for use with up to 6 ceiling-mounted fans.
