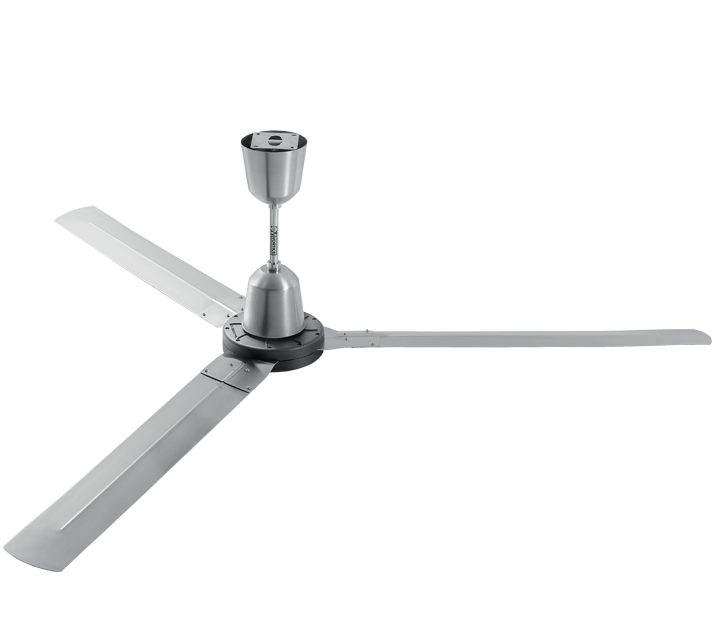

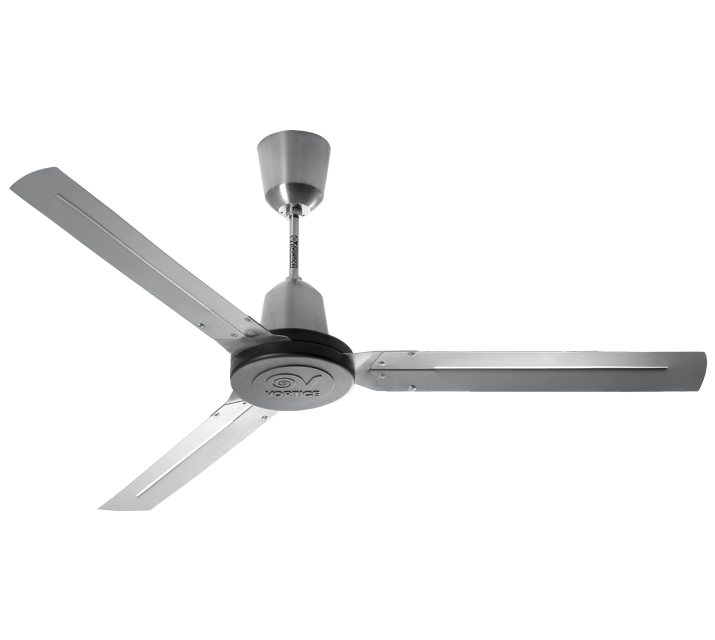

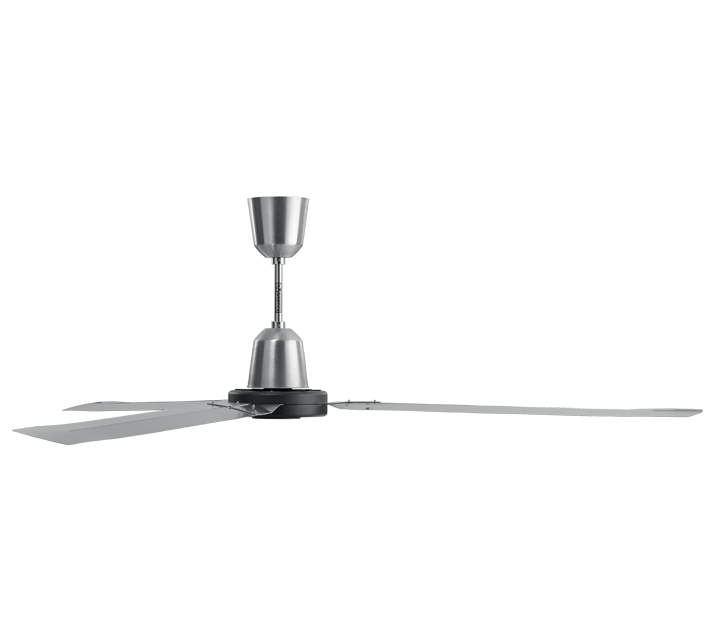

Description
• Die-casted epoxy painted motor covers, colour black, sealed with EPDM gaskets to prevent dust or water entry.
• Cups made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• Nominal diameter of blades 1200 mm.

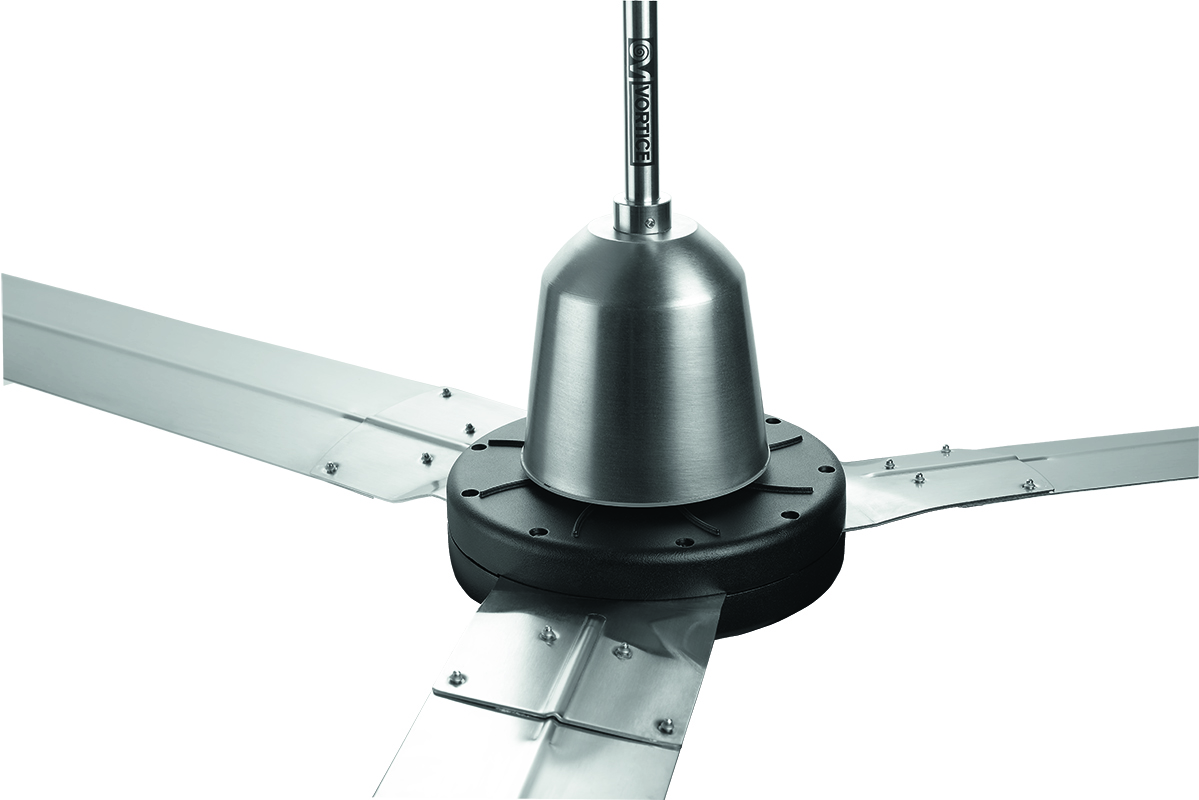

• Single-phase external rotor motor, shaft mounted on ball bearings. Engine covers painted with black epoxy powder, embossed finish.
• 3 blades made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.

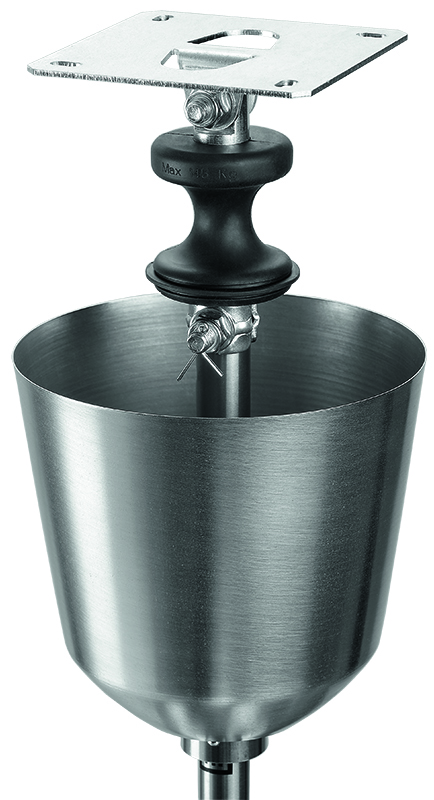

• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).
• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
• Cups made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• Nominal diameter of blades 1200 mm.
• Single-phase external rotor motor, shaft mounted on ball bearings. Engine covers painted with black epoxy powder, embossed finish.
• 3 blades made of AISI 304 stainless steel and nanostructured treatment to increase resistance to corrosion and facilitate cleaning.
• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).
• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter1218
-
Frequency (Hz)50/60*
-
Insulation classI°
-
IP55
-
Max absorbed current (A)0,35
-
Motor power (W)80
-
Voltage (V)230
-
Weight (Kg)7,3
-
Max airflow (m³/h)14050
-
Max airflow (m³/min)234
-
Max flow speed (m/s)2,40
-
RPM233
-
Service value (m³/min)/W2,925
-
Sound power Lw [dB(A)]51,8
-
Sound pressure Lp [dB (A)] at 3 m34,32
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

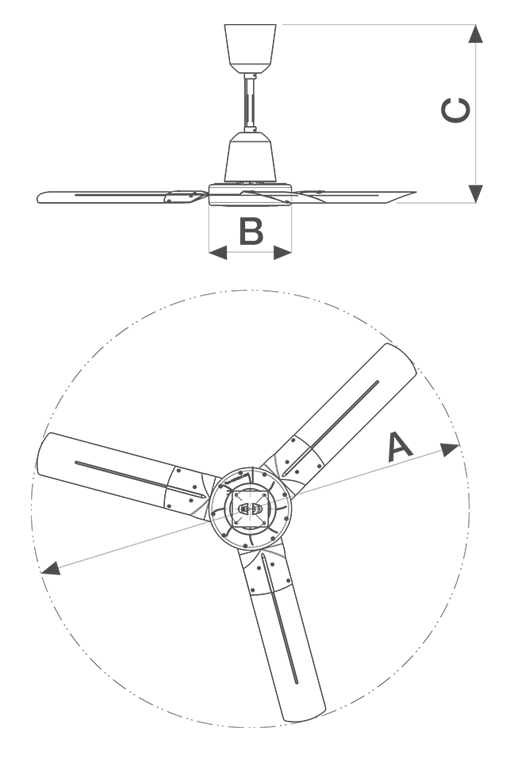

Size A (mm)Ø 1218
-
Size B (mm)Ø 230
-
Size C (mm)495
