Description

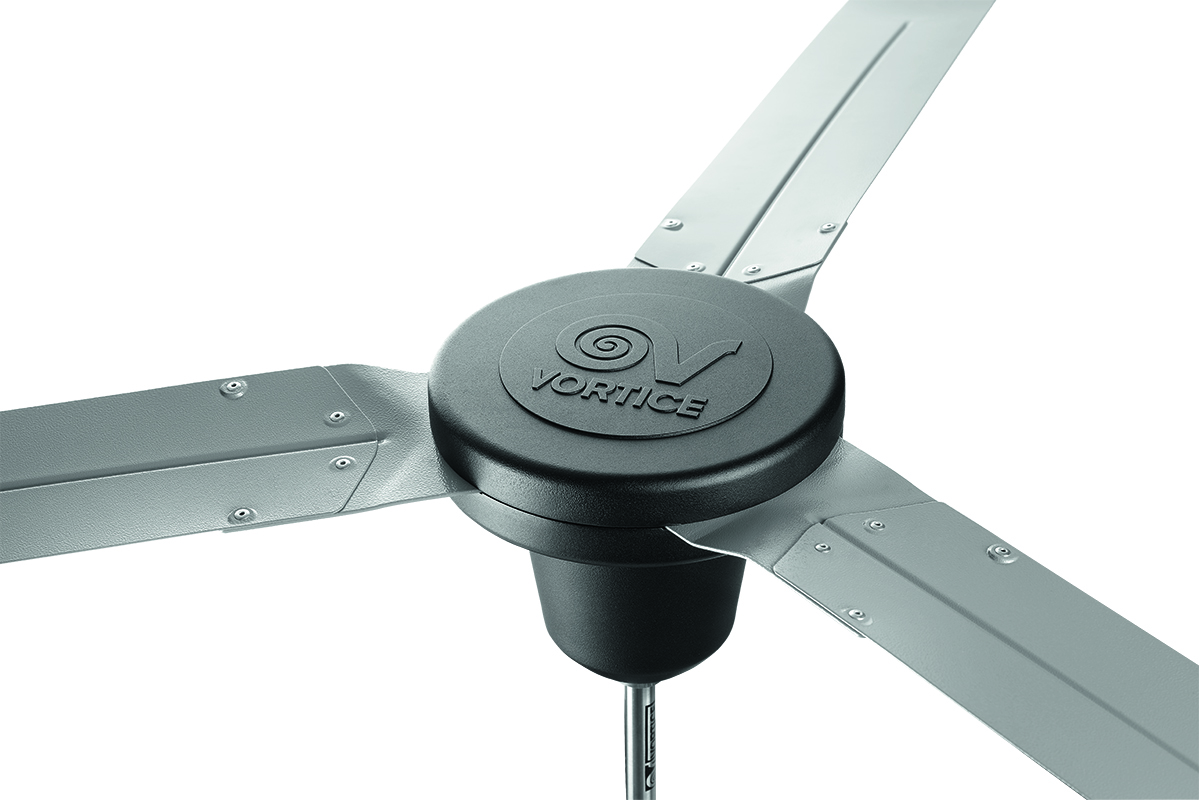

• Die-casted epoxy painted motor covers, colour black, sealed with EPDM gaskets to prevent dust or water entry.
• Cups made of electrogalvanized steel plate protected by a double layer of epoxy paint.
• Nominal diameter of blades 1600 mm.
• Single-phase external rotor motor, shaft mounted on ball bearings.
• 3 blades made of electrogalvanized steel plate protected by a double layer of epoxy paint.
• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).

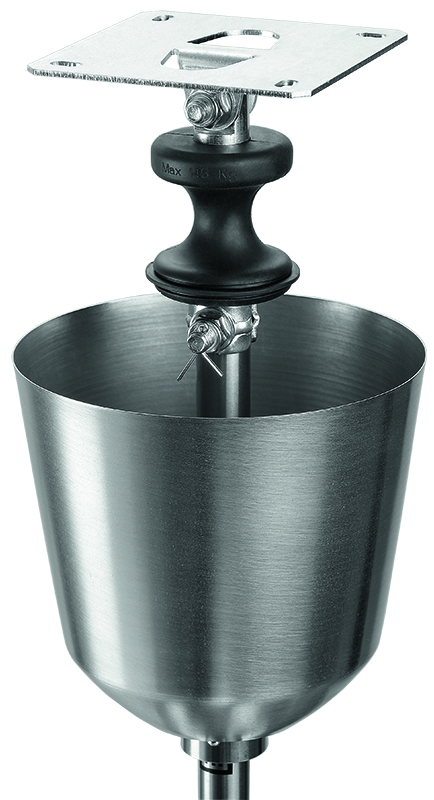

• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
• Cups made of electrogalvanized steel plate protected by a double layer of epoxy paint.
• Nominal diameter of blades 1600 mm.
• Single-phase external rotor motor, shaft mounted on ball bearings.
• 3 blades made of electrogalvanized steel plate protected by a double layer of epoxy paint.
• 4 hole support plate compatible with different types of ceilings, even highly slanted.
• Lifeline to prevent any risk of falling in case of uncorrect installation of the product.
• Possibility of automatic adjustment of up to 16 fans simultaneously, in relation to the differential measured by two temperature sensors (VORT DELTA T optional).
• Nuts and bolts, ceiling hook and rubber made damper supplied with the product.
• Adjustable speed control through auto-transformer or multiple electronic devices allowed (optionals)
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter1524
-
Frequency (Hz)50/60*
-
Insulation classI°
-
IP55
-
Max absorbed current (A)0,37
-
Max absorbed power (W)85
-
Max ambient temperature for continuous operation (°C)50
-
Motor power (W)85
-
Voltage (V)230
-
Weight (Kg)8,6
-
Max airflow (m³/h)19300
-
Max airflow (m³/min)321,6
-
Max flow speed (m/s)1,85
-
RPM210
-
Service value (m³/min)/W3,78
-
Sound power Lw [dB(A)]55,6
-
Sound pressure Lp [dB (A)] at 3 m38,09
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

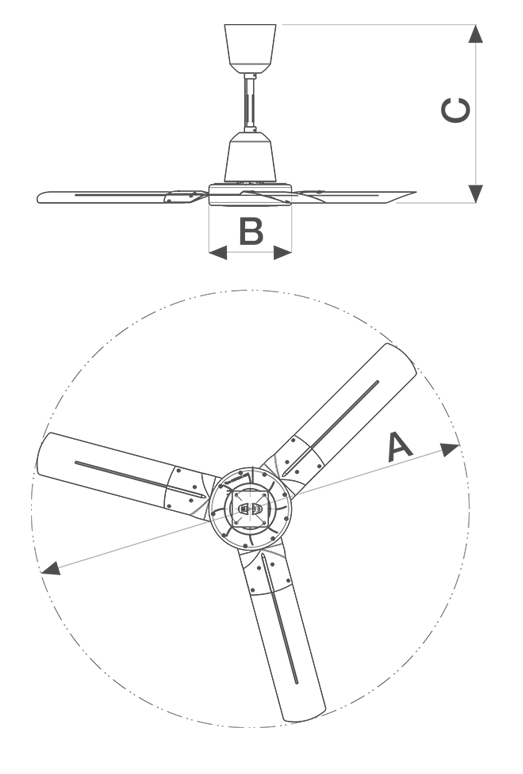

Size A (mm)Ø 1524
-
Size B (mm)Ø 230
-
Size C (mm)495
