Description

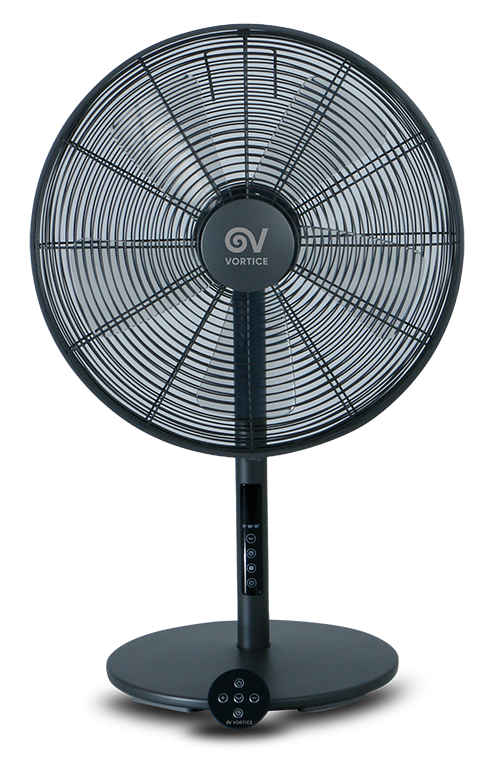

Oscillating floor/table fan equipped with IR remote control and brushless DC motor.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted aluminium.
• Touch buttons with led display to show the set functions, positioned on the support rod.
• IR remote control, circular shape, for remote control.
• Axial impeller directly coupled to an 8-speed DC (brushless) motor, designed for ensure safe and reliable operation.
• Automatic horizontal oscillation, selectable at 30°, 60° or 90°.
• Possibility of manual vertical adjustment of the fan body.
• Timer for automatic switch-off, settable up to a maximum of 8 hours • 24V power supply with Italian plug and power cable with a useful length of 180 cm.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted aluminium.
• Touch buttons with led display to show the set functions, positioned on the support rod.
• IR remote control, circular shape, for remote control.
• Axial impeller directly coupled to an 8-speed DC (brushless) motor, designed for ensure safe and reliable operation.
• Automatic horizontal oscillation, selectable at 30°, 60° or 90°.
• Possibility of manual vertical adjustment of the fan body.
• Timer for automatic switch-off, settable up to a maximum of 8 hours • 24V power supply with Italian plug and power cable with a useful length of 180 cm.
Certifications
-
CE
-
CB TEST REPORT
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
Max absorbed current (A)0,8
-
Max absorbed power (W)24
-
Tensione adattatore (V)100-240V
-
Voltage (V)24
-
Max airflow (m³/h)2640
-
Max airflow (m³/min)44
-
Max flow speed (m/s)2,6
-
Power in stand-by mode (W)0,2
-
Seasonal electric consumption (kWh/y)6,9
-
Service value (m³/min)/W2,1
-
Sound power at Min speed LWA [dB(A)]62
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

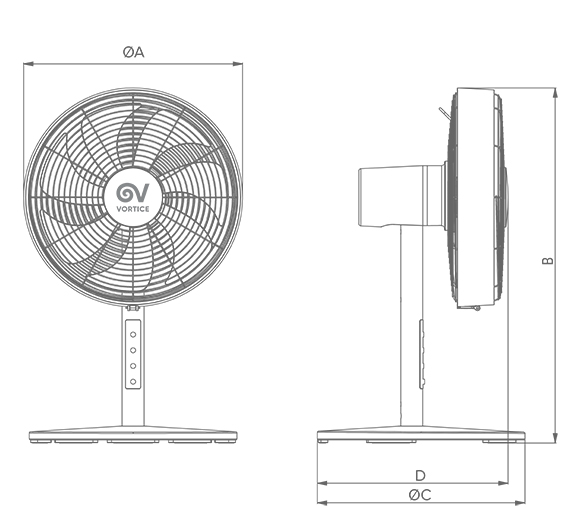

Ø (mm)317
-
Size A (mm)Ø 456
-
Size B (mm)684
-
Size C (mm)Ø 330
-
Size D (mm)304
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
