Description

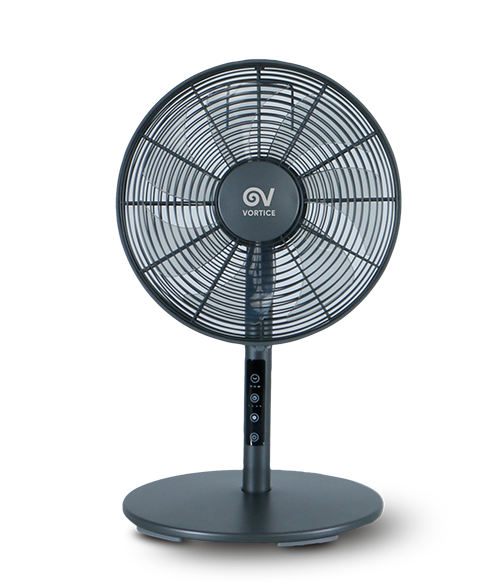

Oscillating table fan equipped with brushless DC motor.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted metal.
• Touch buttons with LED lights on the support rod, showing the set functions.
• Axial impeller directly coupled to a 4-speed DC (brushless) motor, designed to ensure safe and reliable operation.
• Automatic horizontal oscillation (max angle 90°).
• Possibility of manual vertical adjustment of the fan body.
• Automatic switch-off timer, settable up to a maximum of 4 hours.
• 24V power supply with Italian plug and power cable with a useful length of 180 cm.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted metal.
• Touch buttons with LED lights on the support rod, showing the set functions.
• Axial impeller directly coupled to a 4-speed DC (brushless) motor, designed to ensure safe and reliable operation.
• Automatic horizontal oscillation (max angle 90°).
• Possibility of manual vertical adjustment of the fan body.
• Automatic switch-off timer, settable up to a maximum of 4 hours.
• 24V power supply with Italian plug and power cable with a useful length of 180 cm.
Certifications
-
CE
-
CB TEST REPORT
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
Max absorbed current (A)0,7
-
Max absorbed power (W)22
-
Tensione adattatore (V)100-240V
-
Voltage (V)24
-
Max airflow (m³/h)2340
-
Max airflow (m³/min)38,7
-
Max flow speed (m/s)2,2
-
Power in stand-by mode (W)0,3
-
Seasonal electric consumption (kWh/y)6,3
-
Service value (m³/min)/W2,1
-
Sound power at Min speed LWA [dB(A)]57
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

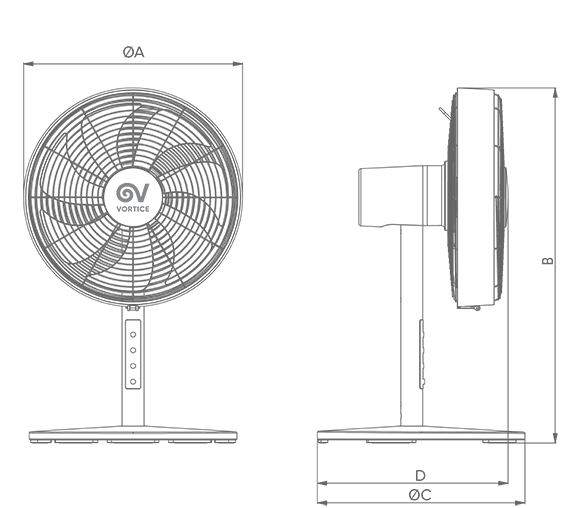

Ø (mm)317
-
Size A (mm)Ø 348
-
Size B (mm)565
-
Size C (mm)Ø 330
-
Size D (mm)303
