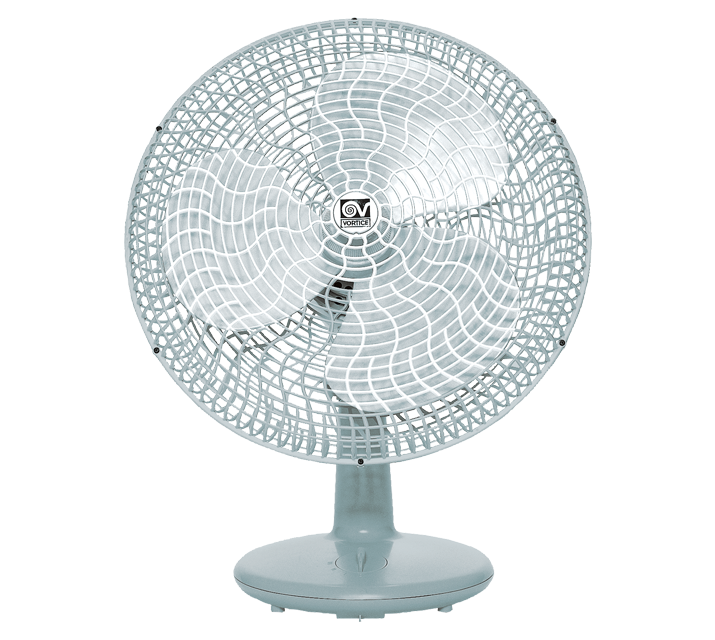

Description
• Material: plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust.
• Nominal diameter 400 mm
• 3 speed asynchronous motor with thermal overload protection and shaft turning in self-aligning and self-lubricating bushings, coupled to oscillating mechanism generating movement through an angle of approx 90° maximum.

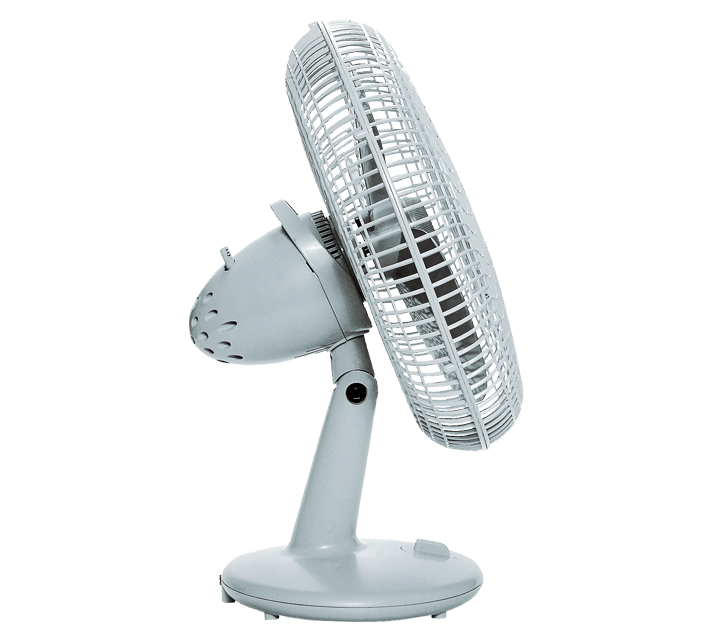

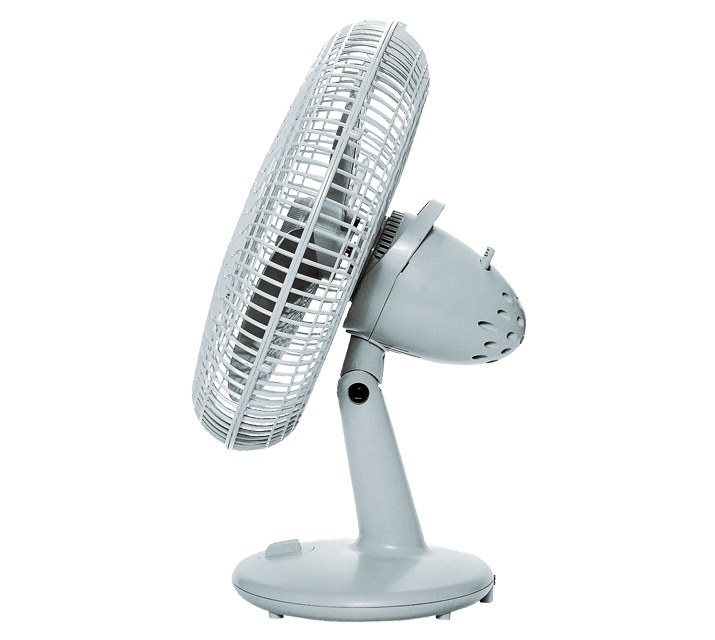

• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• Rotary on/off switch and fan speed selector
• Power cord with moulded plug.
• Maximum air flow 4,000 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Nominal diameter 400 mm
• 3 speed asynchronous motor with thermal overload protection and shaft turning in self-aligning and self-lubricating bushings, coupled to oscillating mechanism generating movement through an angle of approx 90° maximum.
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• Rotary on/off switch and fan speed selector
• Power cord with moulded plug.
• Maximum air flow 4,000 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
Certifications
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
Max absorbed current (A)0,19
-
Max absorbed power (W)40
-
Voltage (V)220-240
-
Weight (Kg)2,7
-
Delivery 3rd speed (m³/h)4000
-
Max airflow (m³/h)4000
-
Max airflow (m³/min)66,67
-
Max airflow at Max speed (m³/h)4000
-
Max flow speed (m/s)1,61
-
RPM1145
-
Service value (m³/min)/W1,667
-
Sound power Lw [dB(A)]57,2
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)Ø 458
-
Size B (mm)570,5
-
Size C (mm)302,5
