Description

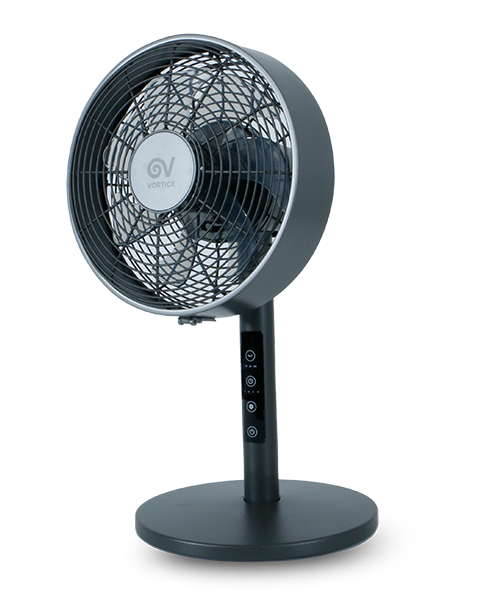

Oscillating table fan equipped with brushless DC motor.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted metal.
• Touch buttons with LED lights on the support rod, showing the set functions.
• Axial impeller directly coupled to a 4-speed DC (brushless) motor, designed to ensure safe and reliable operation.
• Automatic horizontal oscillation (max angle 90°).
• Possibility of manual vertical adjustment of the fan body.
• Automatic switch-off timer, settable up to a maximum of 4 hours.
• 24V power supply with Italian plug and power cable with a useful length of 180 cm.
• Grid, motor casing and support base in gray painted metal.
• Central frame, located between the front and rear grille, made of gray painted plastic material (ABS).
• Support rod in gray painted metal.
• Touch buttons with LED lights on the support rod, showing the set functions.
• Axial impeller directly coupled to a 4-speed DC (brushless) motor, designed to ensure safe and reliable operation.
• Automatic horizontal oscillation (max angle 90°).
• Possibility of manual vertical adjustment of the fan body.
• Automatic switch-off timer, settable up to a maximum of 4 hours.
• 24V power supply with Italian plug and power cable with a useful length of 180 cm.
Certifications
-
CE
-
CB TEST REPORT
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
Max absorbed current (A)0,4
-
Max absorbed power (W)14
-
Tensione adattatore (V)100-240V
-
Voltage (V)24
-
Max airflow (m³/h)1200
-
Max airflow (m³/min)19,9
-
Max flow speed (m/s)1,9
-
Power in stand-by mode (W)0,4
-
Seasonal electric consumption (kWh/y)4,6
-
Service value (m³/min)/W1,5
-
Sound power at Min speed LWA [dB(A)]56
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

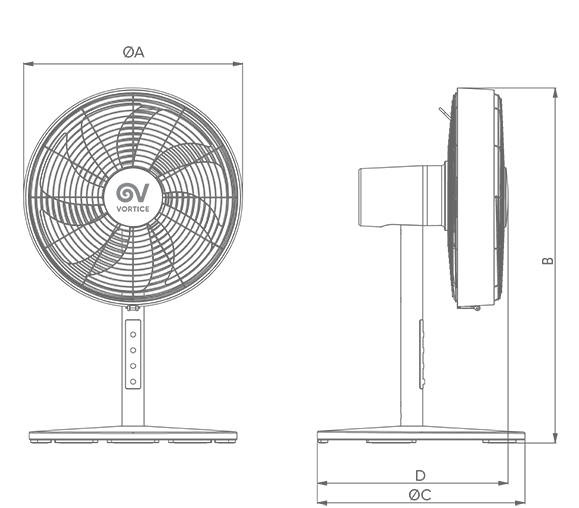

Ø (mm)227
-
Size A (mm)Ø 254
-
Size B (mm)461
-
Size C (mm)254
-
Size D (mm)Ø 240
