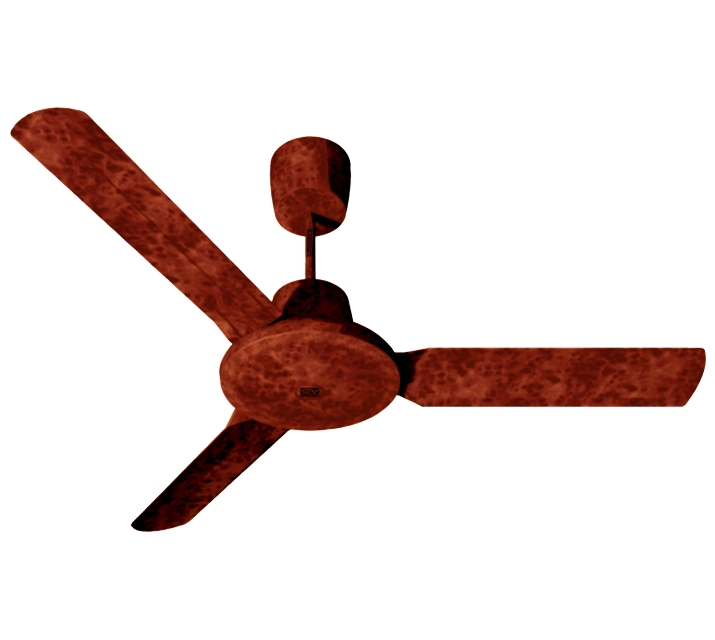

Description
• Nominal diameter of blades 1400 mm
• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour wood grain.
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant thermoplastic resin (PP).
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings. Direction of rotation reversible.
• Maximum air flow 16,586 m3/h
• 3 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour wood grain.
• Steel ceiling rod with scratch-resistant polyester powder coated finish, colour wood grain, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept a specific optional light kit with 2x15 W max energy saving lamp, E27 screw fitting.
• Speed selectable by way of control units or Telenordik 5TR remote control (optional)
• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour wood grain.
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant thermoplastic resin (PP).
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings. Direction of rotation reversible.
• Maximum air flow 16,586 m3/h
• 3 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour wood grain.
• Steel ceiling rod with scratch-resistant polyester powder coated finish, colour wood grain, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept a specific optional light kit with 2x15 W max energy saving lamp, E27 screw fitting.
• Speed selectable by way of control units or Telenordik 5TR remote control (optional)
Certifications
-
Download
CE
-
EAC
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter1488
-
Frequency (Hz)50/60*
-
Insulation classI°
-
Max absorbed current (A)0,35
-
Max absorbed power (W)70
-
Voltage (V)220-240
-
Weight (Kg)7,1
-
Max airflow (m³/h)16586
-
Max airflow (m³/min)276,43
-
Max flow speed (m/s)2,08
-
RPM197
-
Service value (m³/min)/W3,949
-
Sound power Lw [dB(A)]52,6
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)980
-
Size B (mm)298
-
Size C (mm)495
-
Size D (mm)229
-
Size E (mm)724
-
Size F (mm)291
-
Size G (mm)145
-
Size H (mm)640
-
Size L (mm)291
