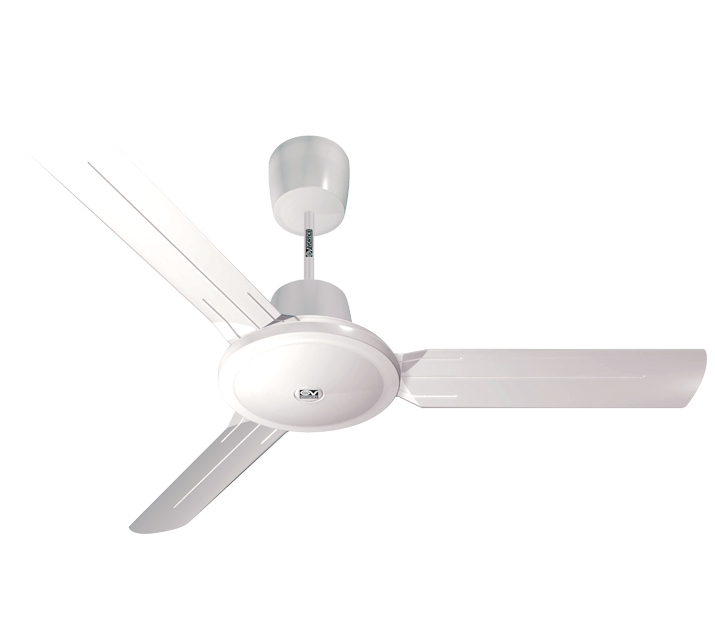

Description
• Nominal diameter of blades 1200 mm
• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour white.
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant thermoplastic resin (PP).
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings. Direction of rotation reversible.
• Maximum air flow 13810 m3/h
• 3 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour white.
• Steel ceiling rod with scratch-resistant polyester powder coated finish, colour white, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept a specific optional light kit with 2x15 W max energy saving lamp, E27 screw fitting.
• Speed selectable by way of control units or Telenordik 5TR remote control (optional)
• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour white.
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant thermoplastic resin (PP).
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings. Direction of rotation reversible.
• Maximum air flow 13810 m3/h
• 3 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour white.
• Steel ceiling rod with scratch-resistant polyester powder coated finish, colour white, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept a specific optional light kit with 2x15 W max energy saving lamp, E27 screw fitting.
• Speed selectable by way of control units or Telenordik 5TR remote control (optional)
Certifications
-
Download
CE
-
EAC
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter1284
-
Frequency (Hz)50/60*
-
Insulation classI°
-
Max absorbed current (A)0,34
-
Max absorbed power (W)70
-
Voltage (V)220-240
-
Weight (Kg)7,1
-
Max airflow (m³/h)13810
-
Max airflow (m³/min)230,17
-
Max flow speed (m/s)2,36
-
RPM198
-
Service value (m³/min)/W3,288
-
Sound power Lw [dB(A)]49,1
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)980
-
Size B (mm)298
-
Size C (mm)495
-
Size D (mm)229
-
Size E (mm)724
-
Size F (mm)291
-
Size G (mm)145
-
Size H (mm)640
-
Size L (mm)291
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
EVOLUTION LIGHT KIT ES
• Lighting system kit for all Nordik Evolution fans.
• Model with two energy saving lamps with Edison E27 fittings.
• Max. power output: 15 W each (equival...
• Model with two energy saving lamps with Edison E27 fittings.
• Max. power output: 15 W each (equival...
SCRR/M
Electronic, reversible speed controller for use with up to 6 ceiling-mounted fans.
KIT SCBRR5/5L/M
• Kit to convert SCRR5 and SCRR5L 5-position controllers from surface to flush-mounted.
SC 503 B
Flush mounted speed controller.
• colour: White.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• Thanks to t...
• colour: White.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• Thanks to t...
SC 503 N
Flush mounted speed controller.
• Colour: anthracite grey.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• T...
• Colour: anthracite grey.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• T...
SC EXT B
Wall mounted speed controller.
• colour: White.
• consists of the same unit as in the flush mounted version with the addition of a casing to be fitted to the ...
• colour: White.
• consists of the same unit as in the flush mounted version with the addition of a casing to be fitted to the ...
ASTA NK I 200 BIANCA
• NK I 200 White Rod to enable installation at desired height.
ASTA NK I 250 BIANCA
• NK I 250 White Rod to enable installation at desired height.
ASTA NK I 350 BIANCA
• NK 350 I White Rod to enable installation at desired height.
ASTA NK I 750 BIANCA
• NK I 750 White Rod to enable installation at desired height.
ASTA NK I 1000 BIANCA
• NK I 1000 White Rod to enable installation at desired height.
TELENORDIK 5TR
• Infrared remote control – 5 speeds – timer - reverse
• The receiver is hidden inside the fan casing, with only the tip in which the sensor is located protruding.
• The receiver is hidden inside the fan casing, with only the tip in which the sensor is located protruding.
VORT DELTA T
Multiple speed controller ensuring effective destratification to grant energy savings; VORT DELTA T automatically adapt the speed of up to 15 ceiling fans according to temperature ...
