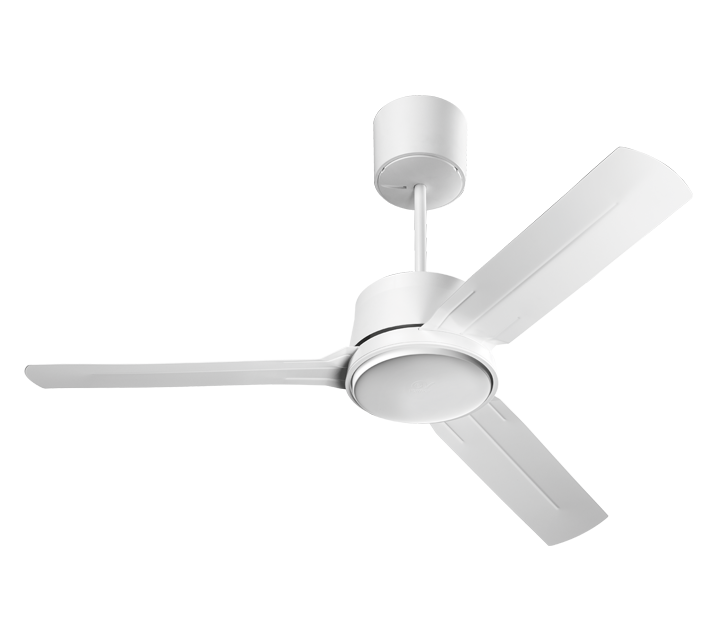

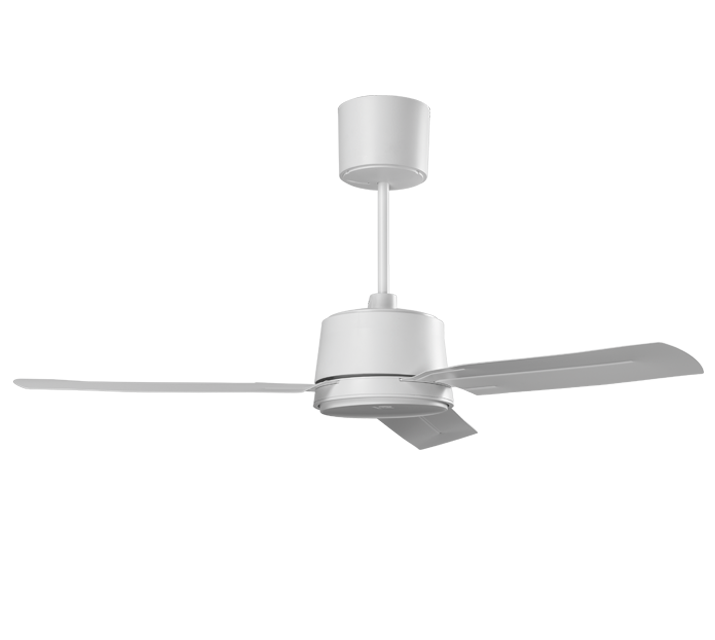

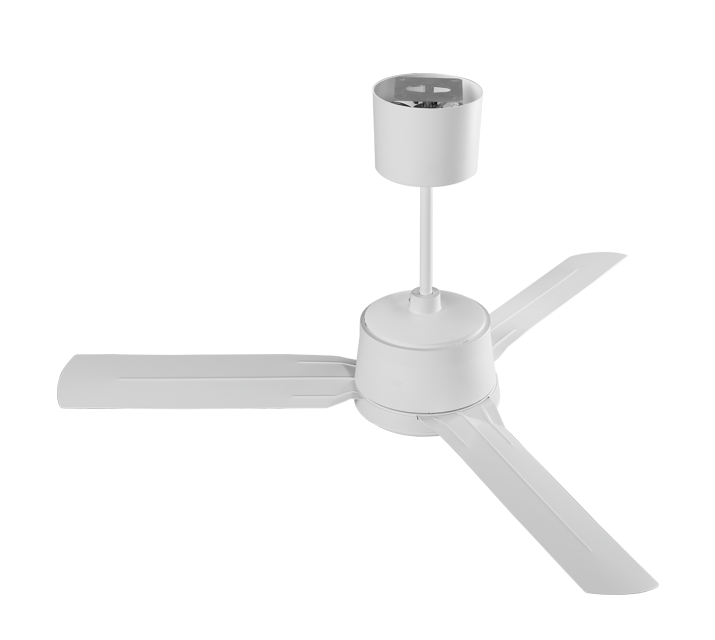

Description
• Nominal diameter of blades 1400 mm.

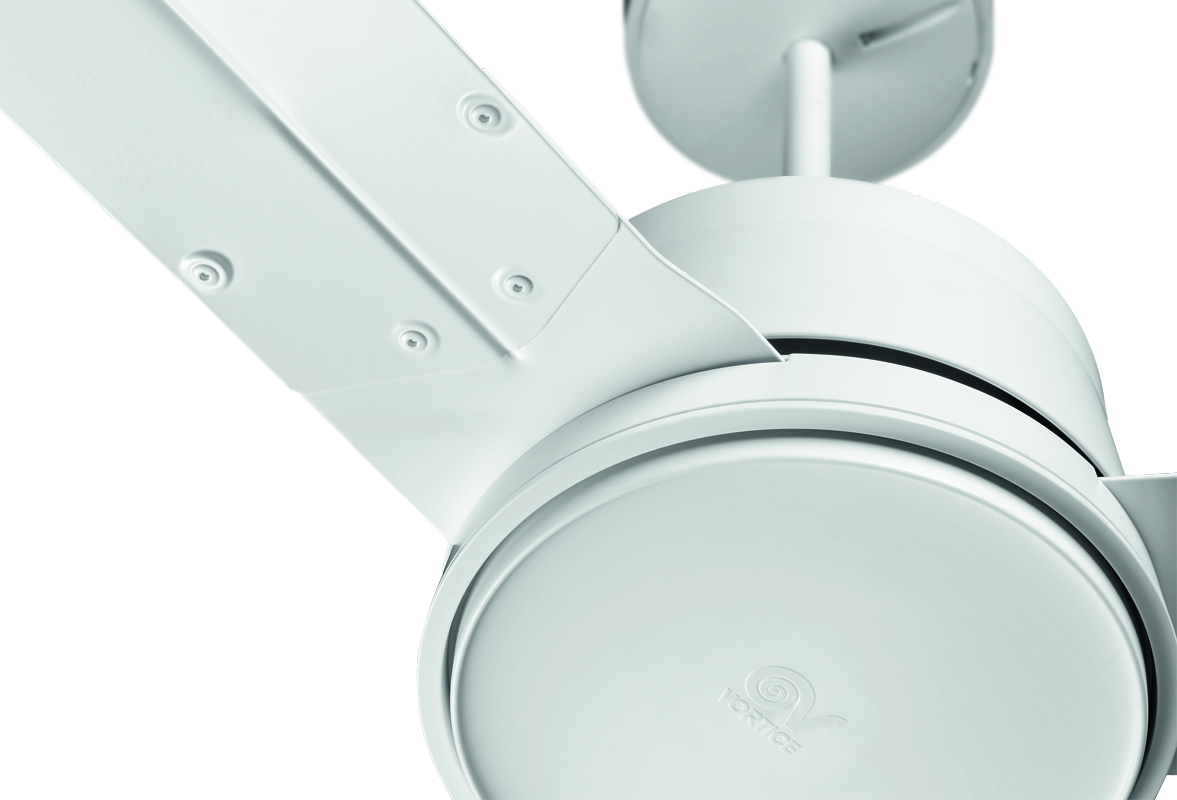

• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).

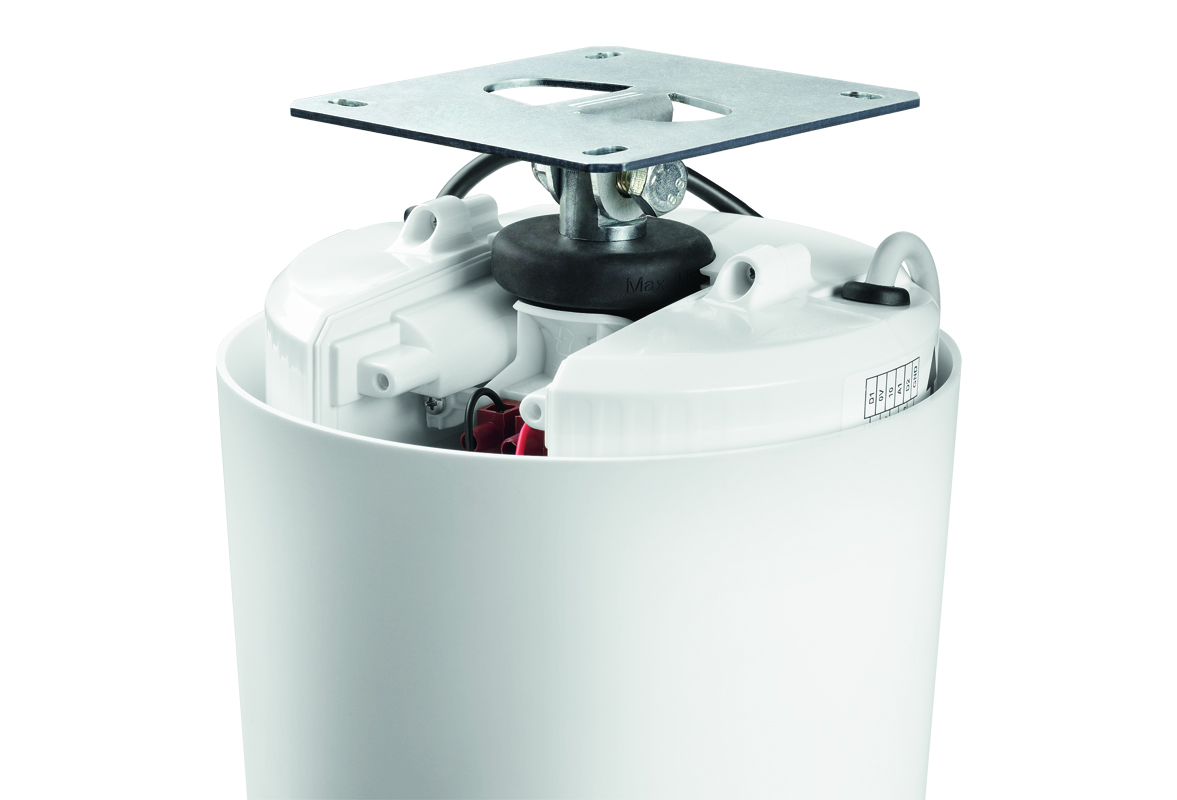

• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.

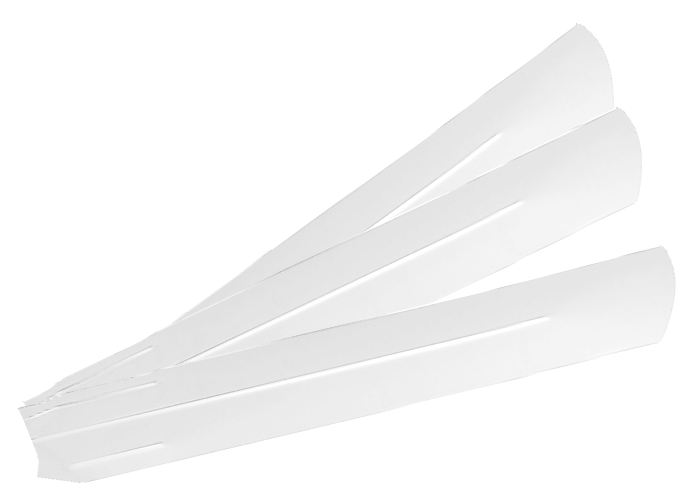

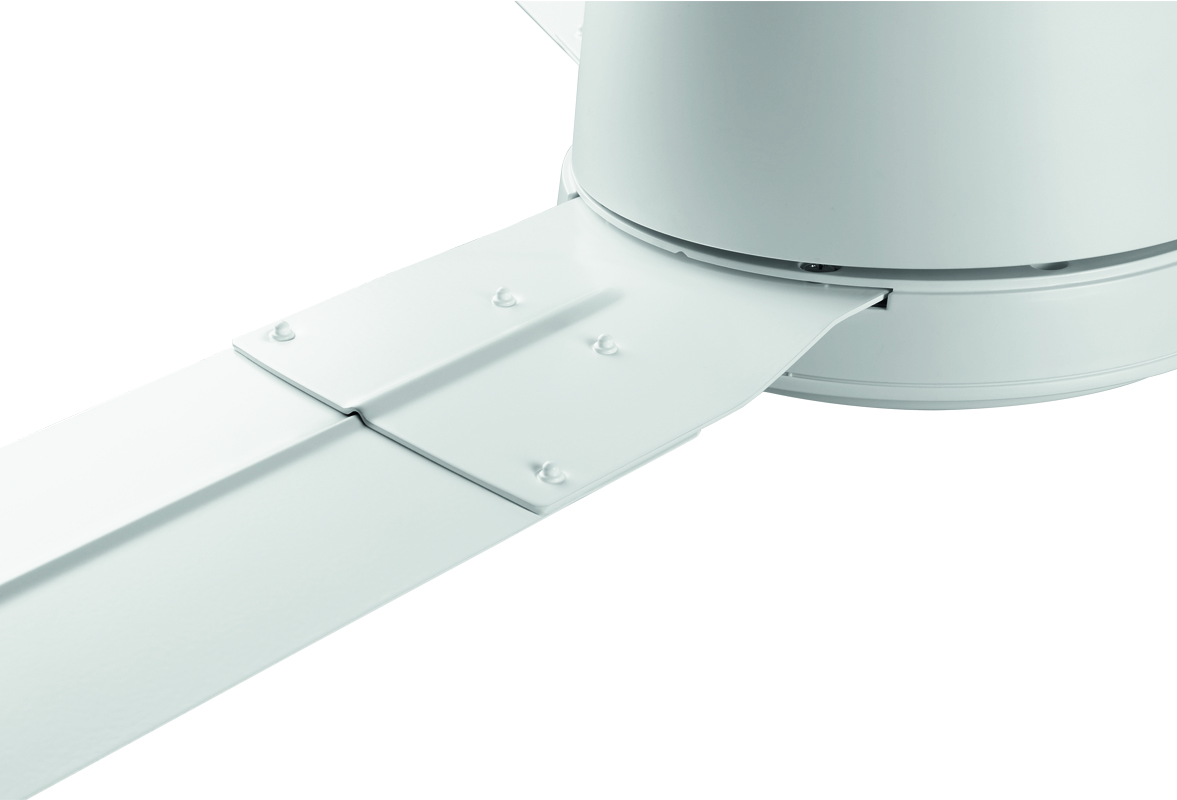

• 3 powder coated sheet steel blades, matt white (RAL9016).

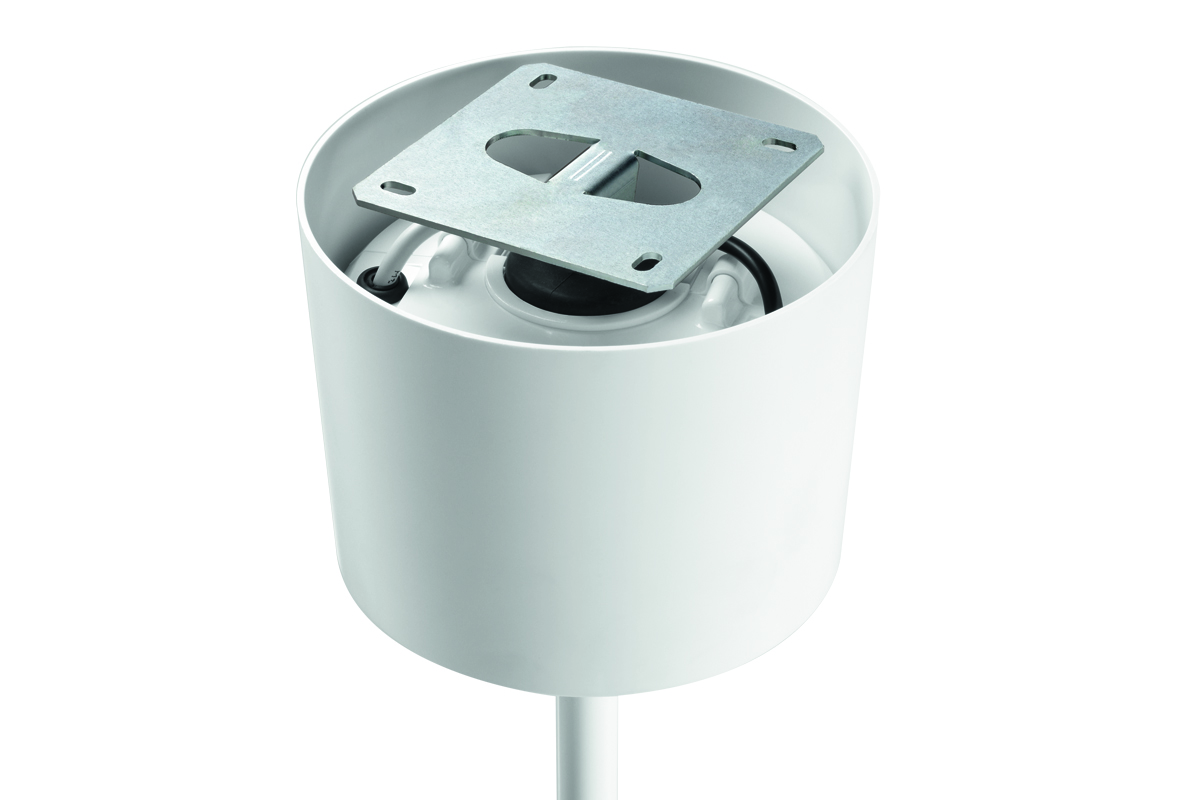

• Powder coated steel ceiling rod, matt white (RAL9016).
• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).
• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.
• 3 powder coated sheet steel blades, matt white (RAL9016).
• Powder coated steel ceiling rod, matt white (RAL9016).
• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter1422
-
Frequency (Hz)50/60*
-
Insulation classI°
-
Max absorbed current (A)0,29
-
Max absorbed power (W)30
-
Max ambient temperature for continuous operation (°C)45
-
Voltage (V)220-240
-
Weight (Kg)8
-
Max airflow (m³/h)16500
-
Max airflow (m³/min)275,00
-
Max flow speed (m/s)2,07
-
RPM235
-
Service value (m³/min)/W9,167
-
Sound power Lw [dB(A)]53,9
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

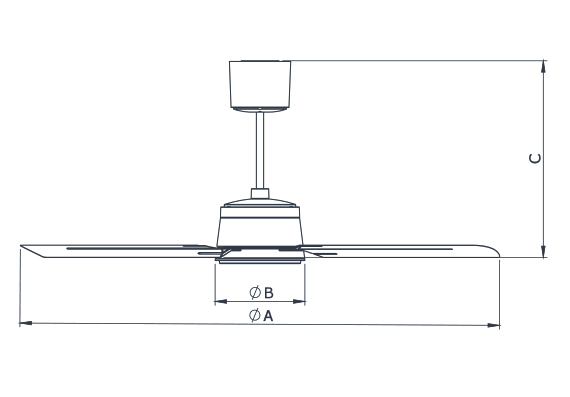

Size A (mm)ø 1422
-
Size B (mm)ø 237
-
Size C (mm)535
