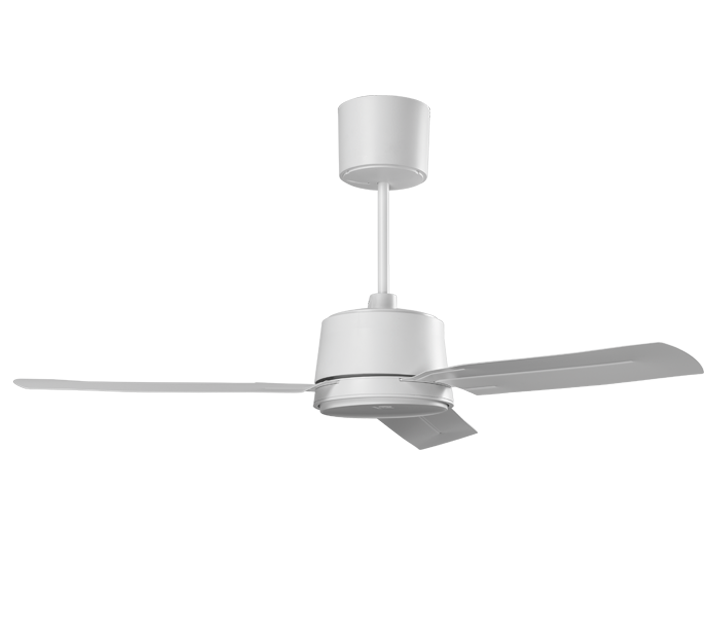

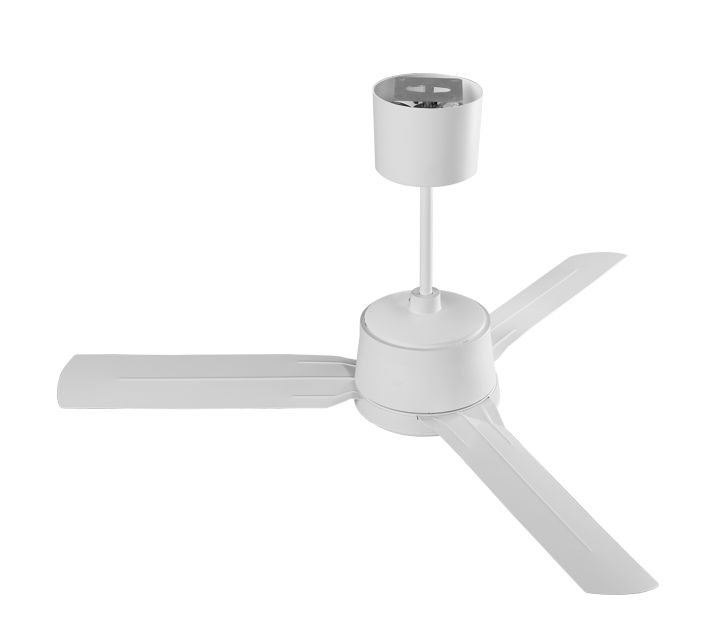

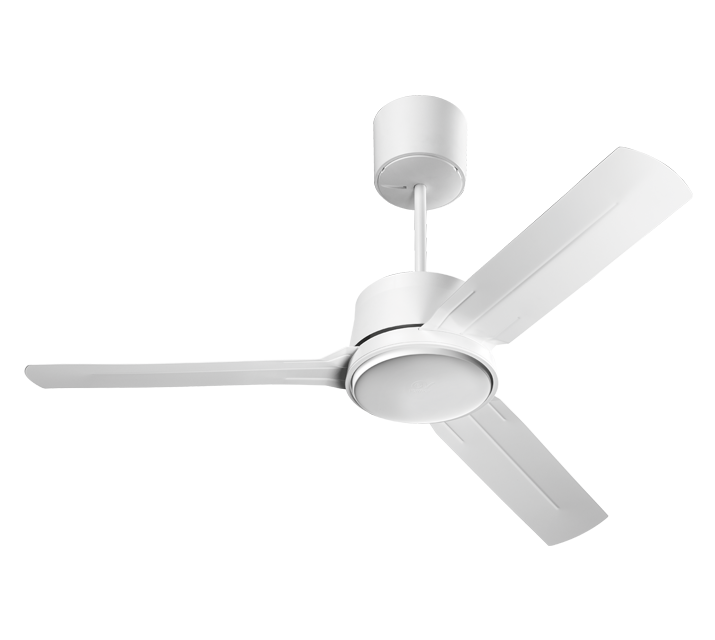

Description
• Nominal diameter of blades 900 mm.

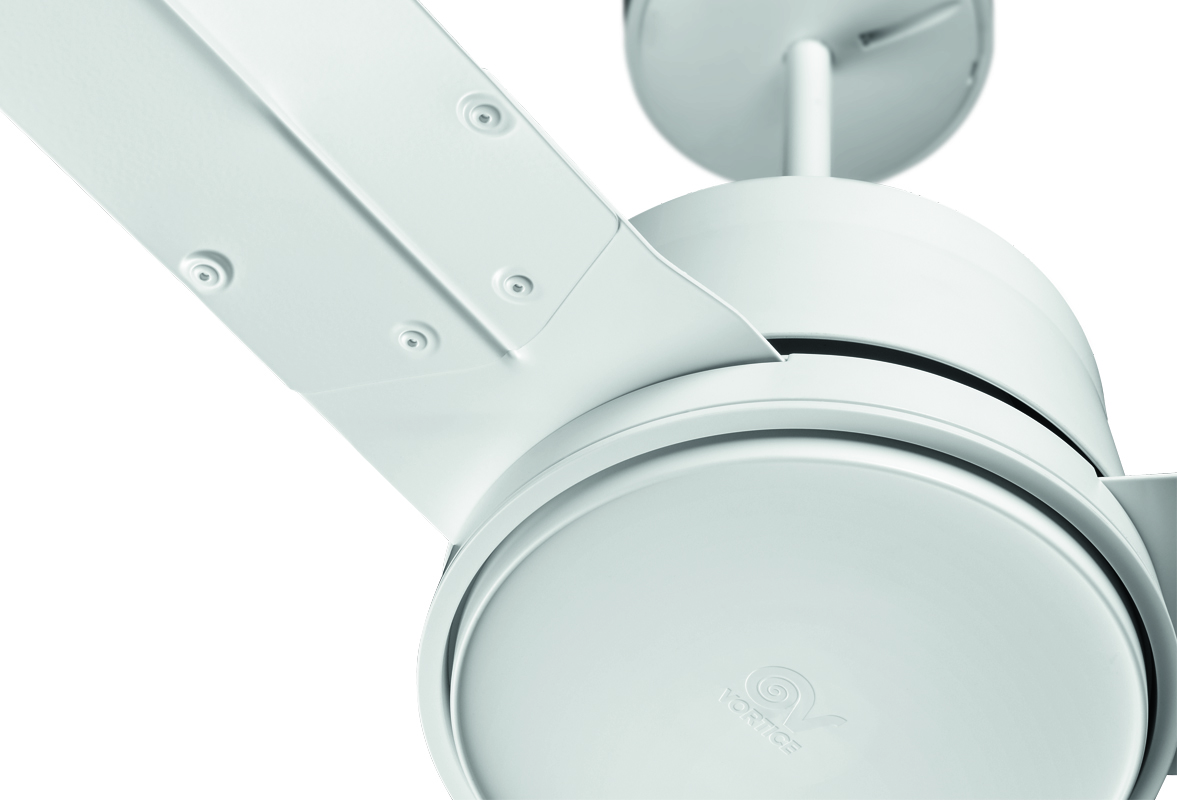

• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).
• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.

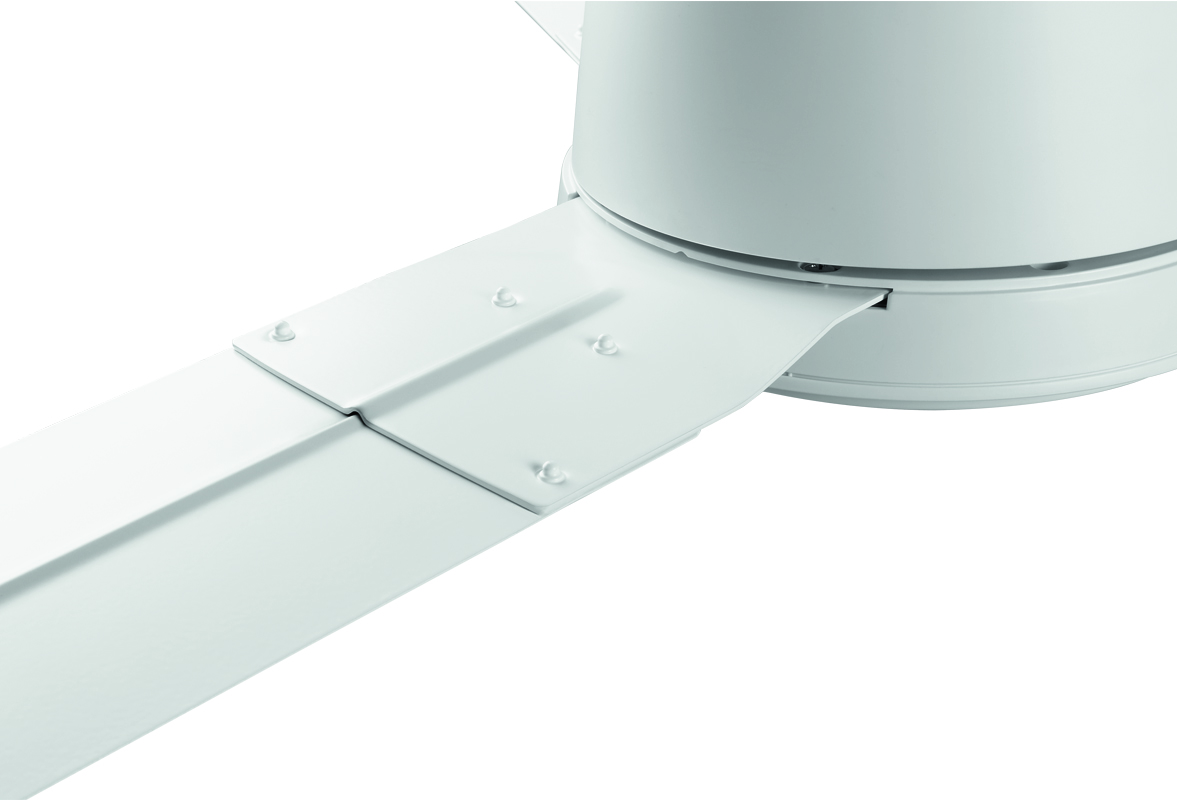

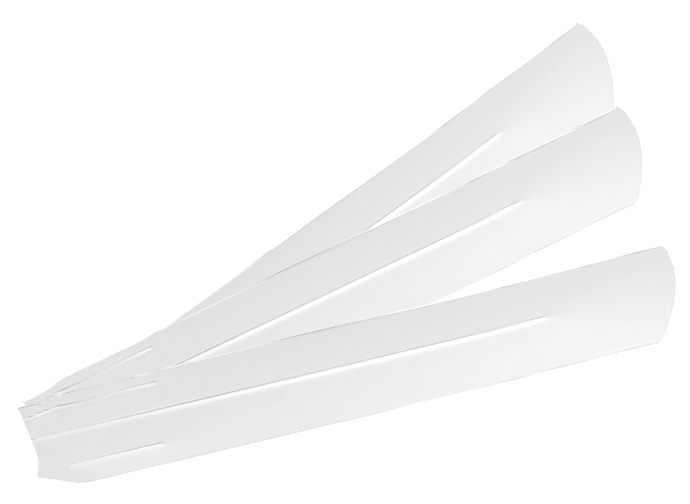

• 3 powder coated sheet steel blades, matt white (RAL9016).
• Powder coated steel ceiling rod, matt white (RAL9016).

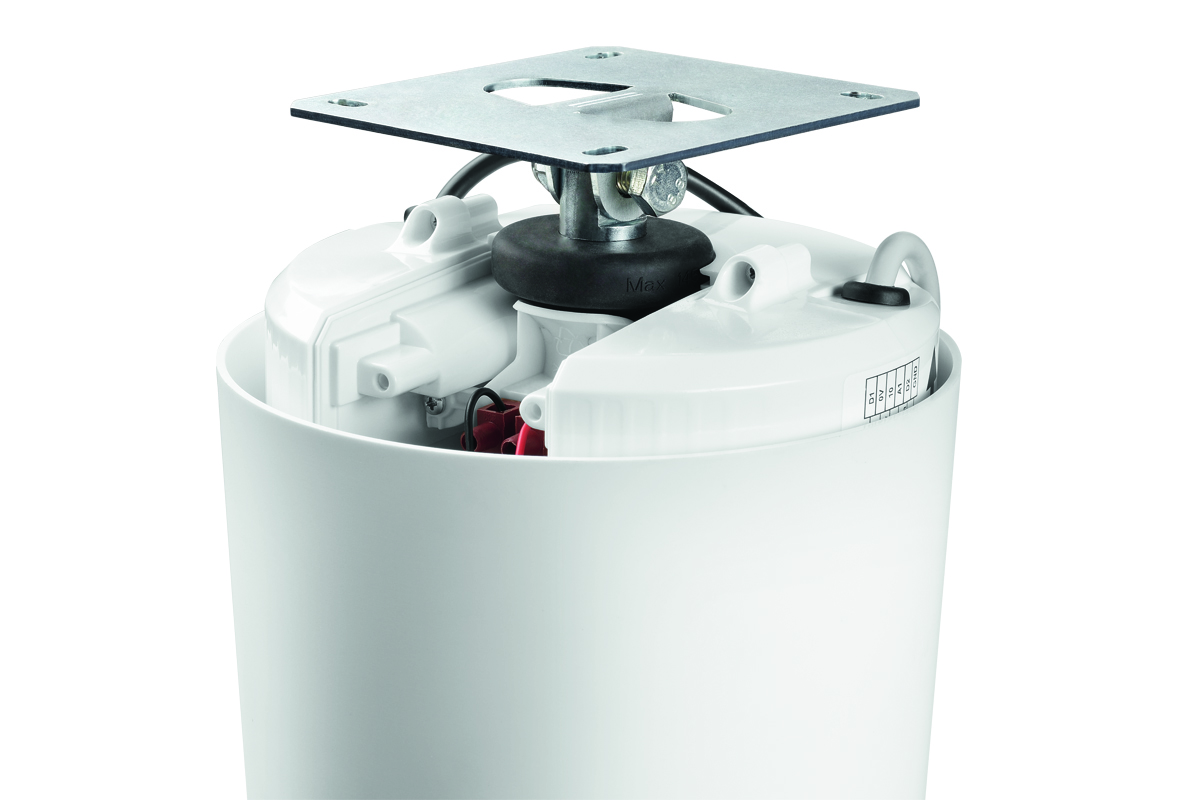

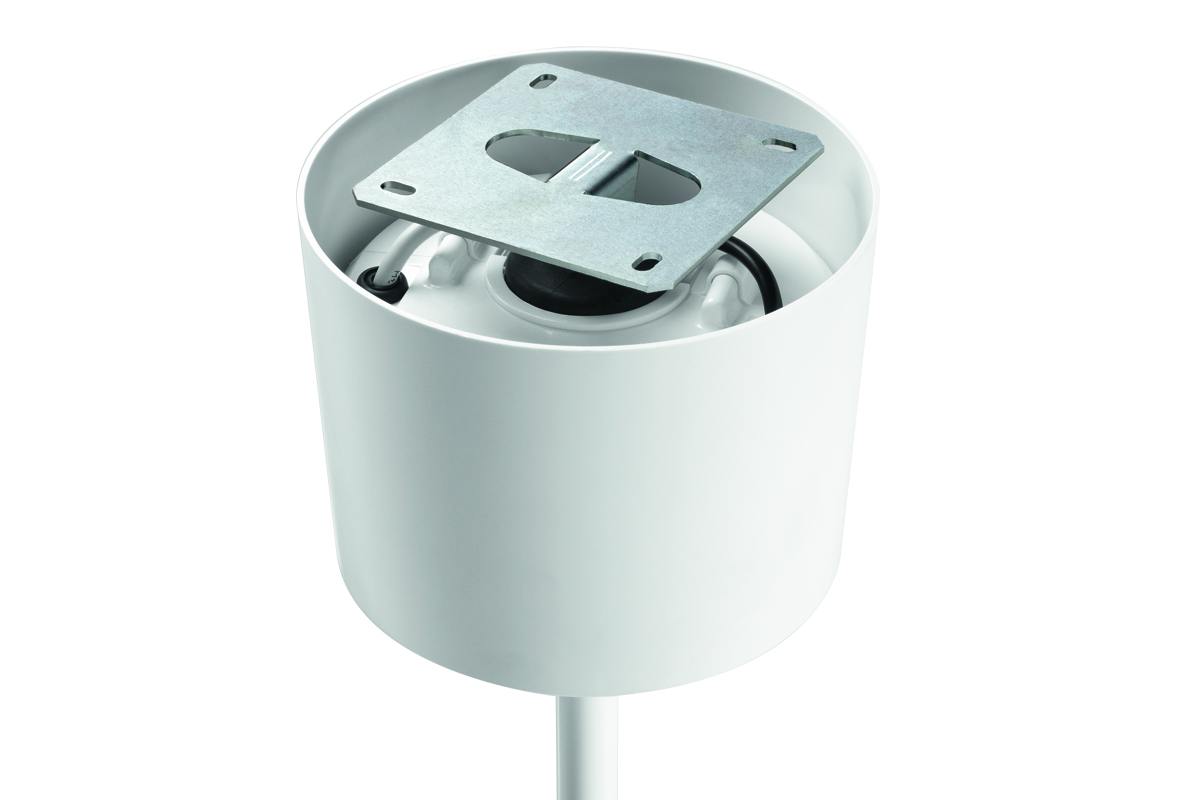

• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).
• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.
• 3 powder coated sheet steel blades, matt white (RAL9016).
• Powder coated steel ceiling rod, matt white (RAL9016).
• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Fan diameter914
-
Frequency (Hz)50/60*
-
Insulation classI°
-
Max absorbed current (A)0,26
-
Max absorbed power (W)27
-
Max ambient temperature for continuous operation (°C)45
-
Voltage (V)220-240
-
Weight (Kg)7,5
-
Max airflow (m³/h)9500
-
Max airflow (m³/min)158,33
-
Max flow speed (m/s)2,88
-
RPM250
-
Service value (m³/min)/W5,864
-
Sound power Lw [dB(A)]45,6
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

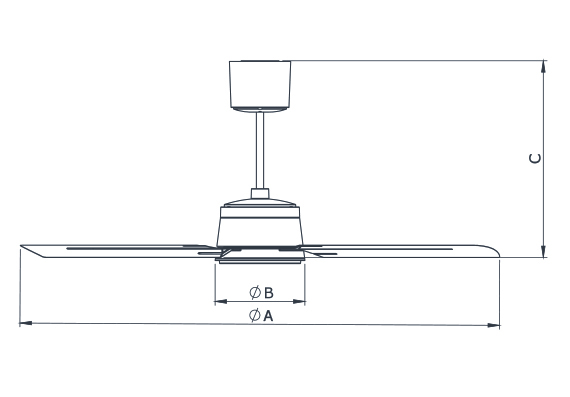

Size A (mm)ø 914
-
Size B (mm)ø 237
-
Size C (mm)535
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
VORT DELTA T WIFI
Multiple speed controller with LCD display and membrane keyboard, designed to be combined with NORDIK ECO ceiling fans. The appliance is able to control the operation of one or mor...
MD-WIFI
Additional Wi-Fi module able to put in communication NORDIK ECO ceiling fan with VORT DELTA T WIFI control unit (code 21175).
