Description
Technical Data Sheet
-
Absorbed current at 400 V (A)1,13/0,37
-
Frequency (Hz)50
-
IP55
-
Max absorbed power (W)250/30
-
Max ambient temperature for continuous operation (°C)120
-
Motor classF
-
Voltage (V)400
-
Weight (Kg)35,5
-
Max airflow (m³/h)2590
-
RPM1370/705
-

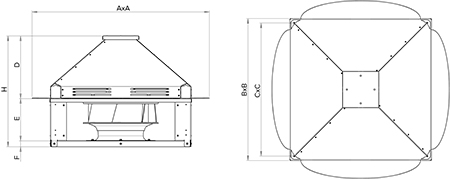

Size A (mm)755
-
Size B (mm)610
-
Size C (mm)550
-
Size D (mm)325
-
Size E (mm)210
-
Size F (mm)40
-
Size H (mm)575
