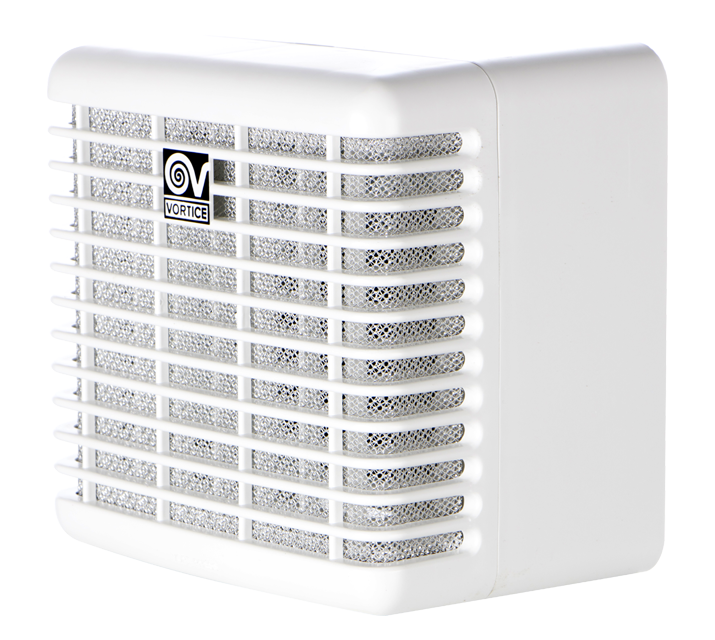

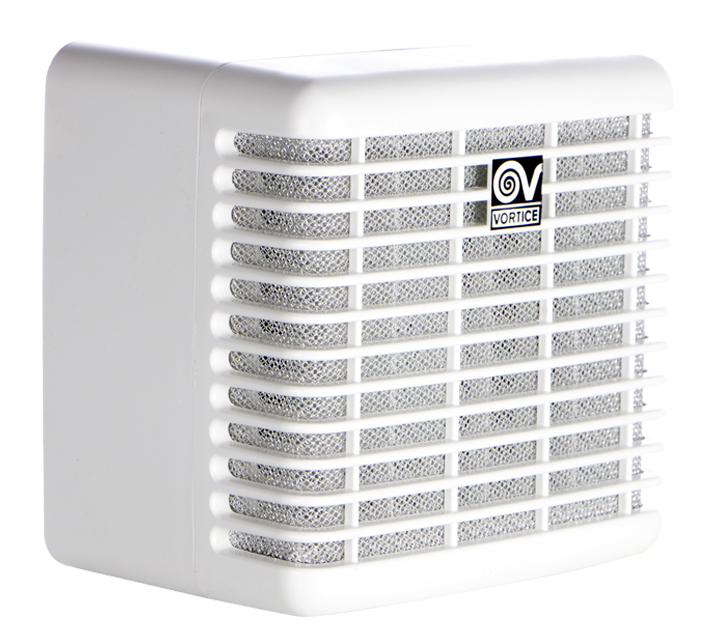

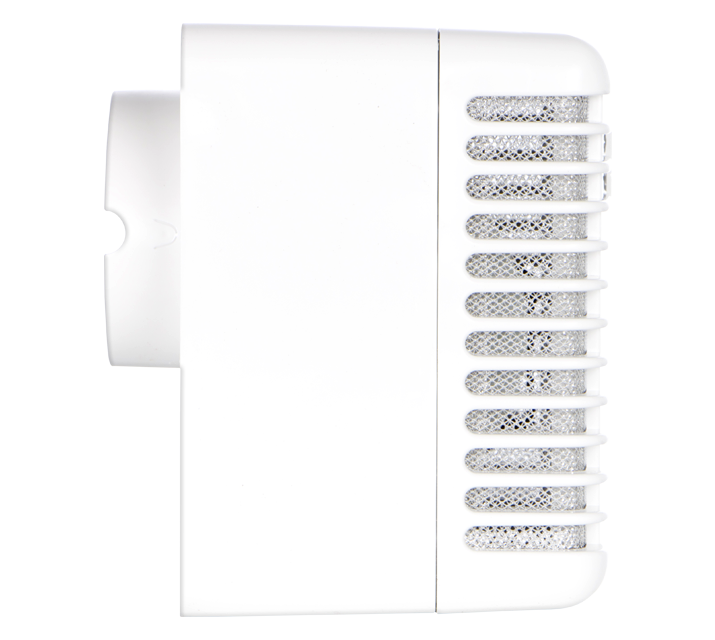

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• 2 speed motor with thermal overload cutout and shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow 51 m3/h
Maximum air flow 101 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.

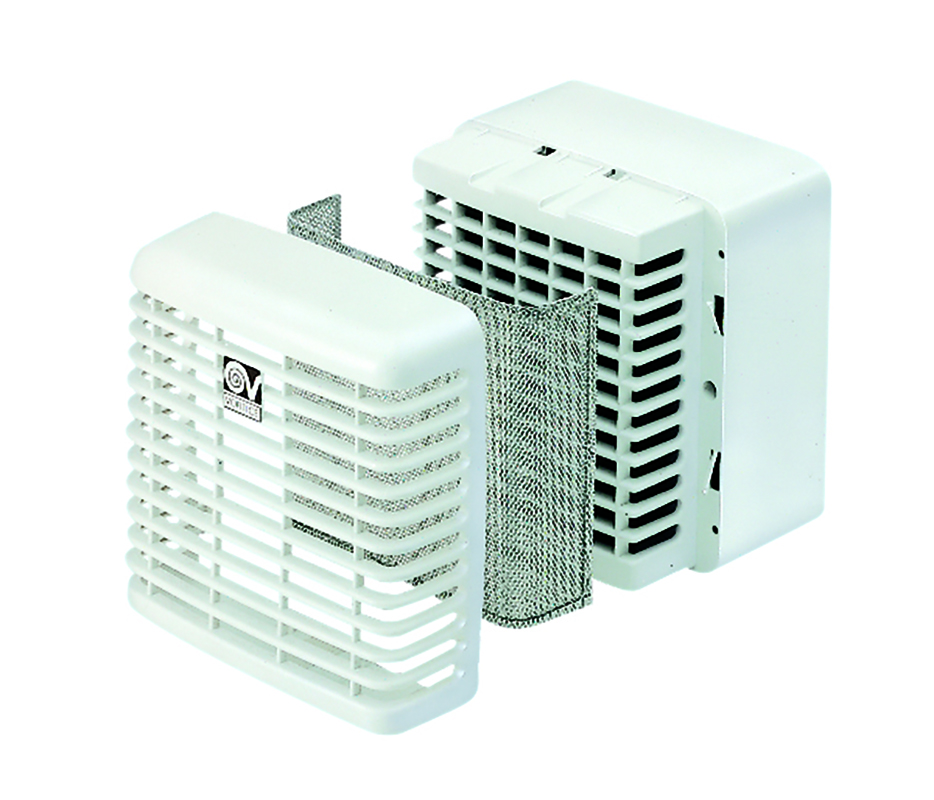

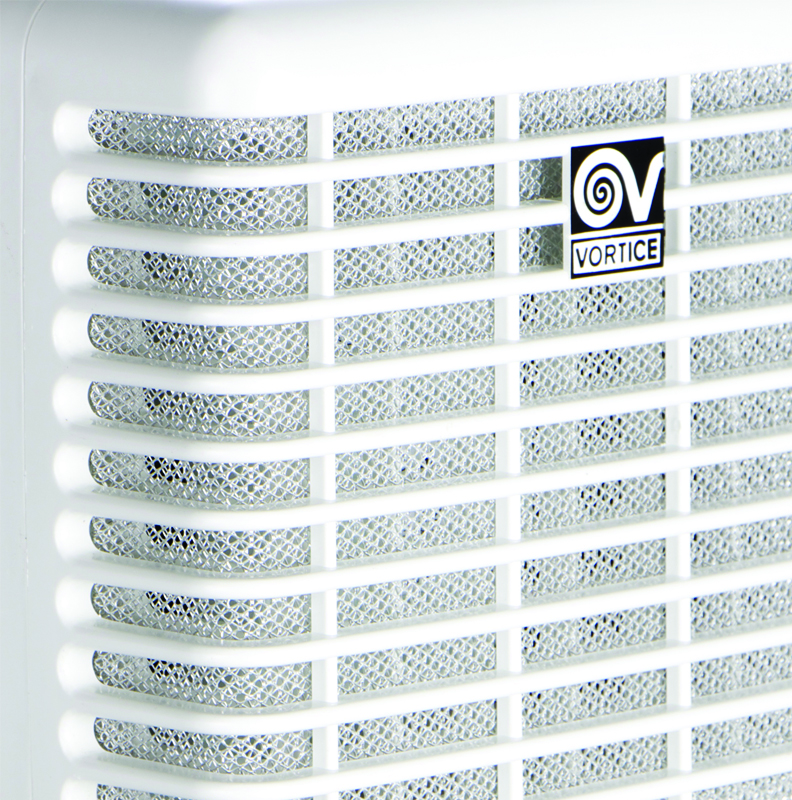

• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.

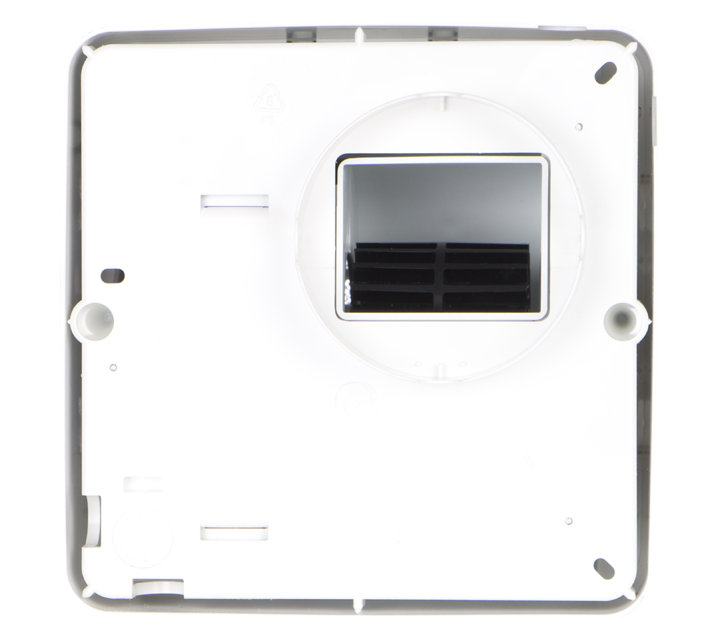

• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.

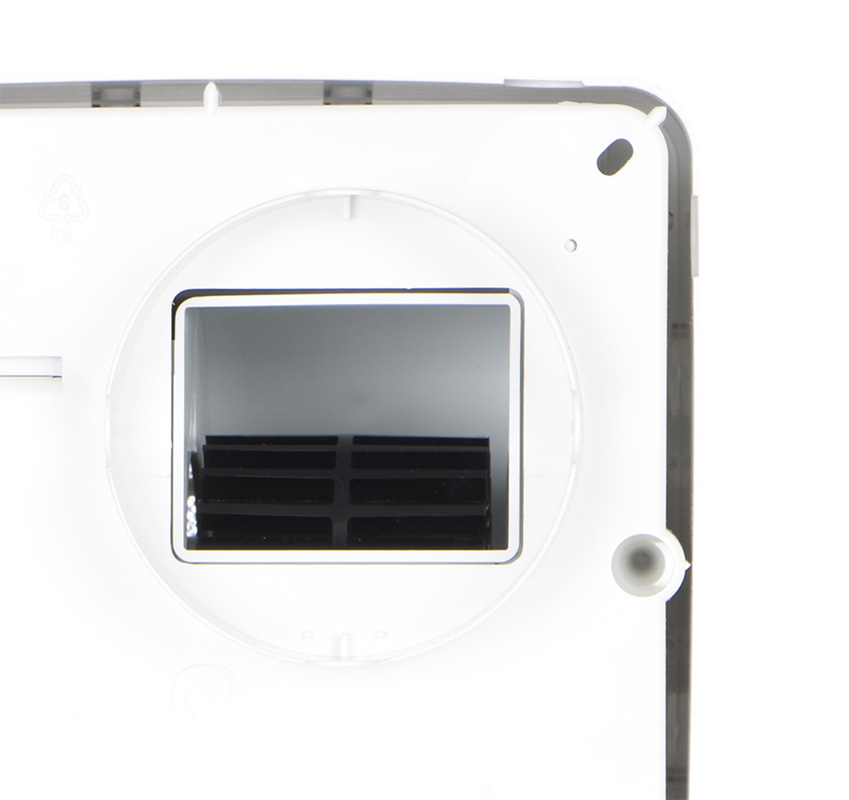

• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
• Nominal diameter 100 mm.
• 2 speed motor with thermal overload cutout and shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow 51 m3/h
Maximum air flow 101 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.
• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Certifications
-
CE
-
EAC
-
UKCA
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,18
-
Max absorbed current at Min speed (A)0,06
-
Max absorbed power at Max speed (W)22
-
Max ambient temperature for continuous operation (°C)25
-
Ø Discharge hole (mm)97
-
Power absorbed at 1st speed (W)8
-
Voltage (V)230
-
Weight (Kg)2,1
-
Airflow at 1st speed (l/s)14,2
-
Airflow at 1st speed (m³/h)51
-
Max airflow at Max speed (l/s)28,1
-
Max airflow at Max speed (m³/h)101
-
Max pressure at Max speed (mmH20)39
-
Max pressure at Max speed (Pa)137
-
Max RPM1450
-
Min RPM820
-
Pressure at 1st speed (mmH20)4
-
Pressure at 1st speed (Pa)14
-
Sound pressure at 1m at Max speed Lp [dB (A)]44,5
-
Sound pressure at 1m at Min speed Lp [dB (A)]28,5
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-2,6
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-15,9
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]5,1
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]90
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]21,0
-
Sound power LWA [dB(A)]56
-
Reference airflow [m3/s]0,0175
-
Reference ? pressure [Pa]53
-
SPI [W/(m3/h)]0,33016
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]455
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

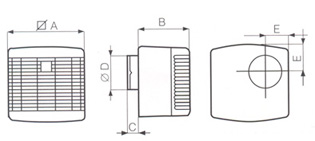

Size A (mm)202
-
Size B (mm)147
-
Size C (mm)30
-
Size D (mm)Ø 97
-
Size E (mm)73
