Description

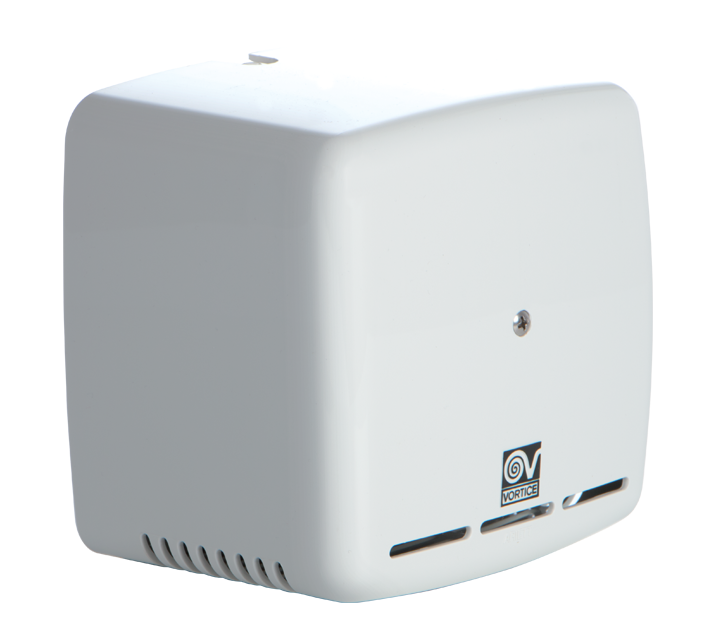

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).

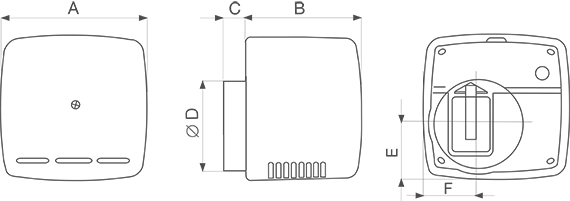

• Nominal diameter: 100 mm

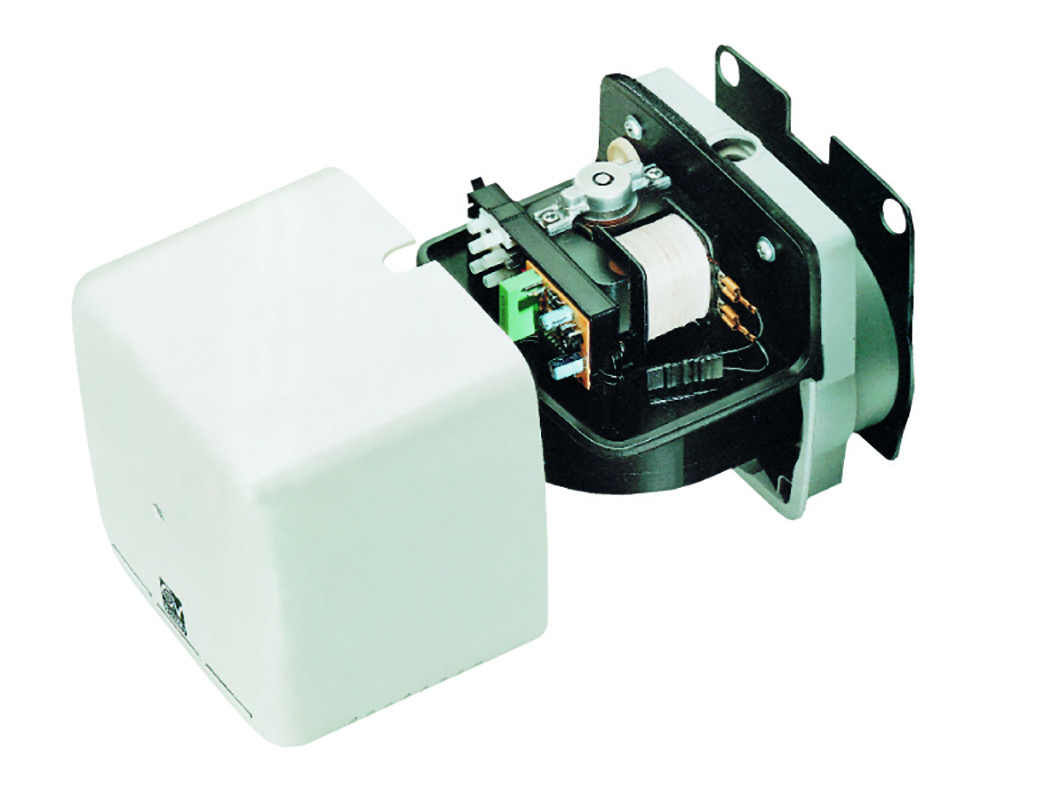

• Motor with thermal overload protection and shaft turning in ball bearings.
• Maximum air flow 70 m3/h

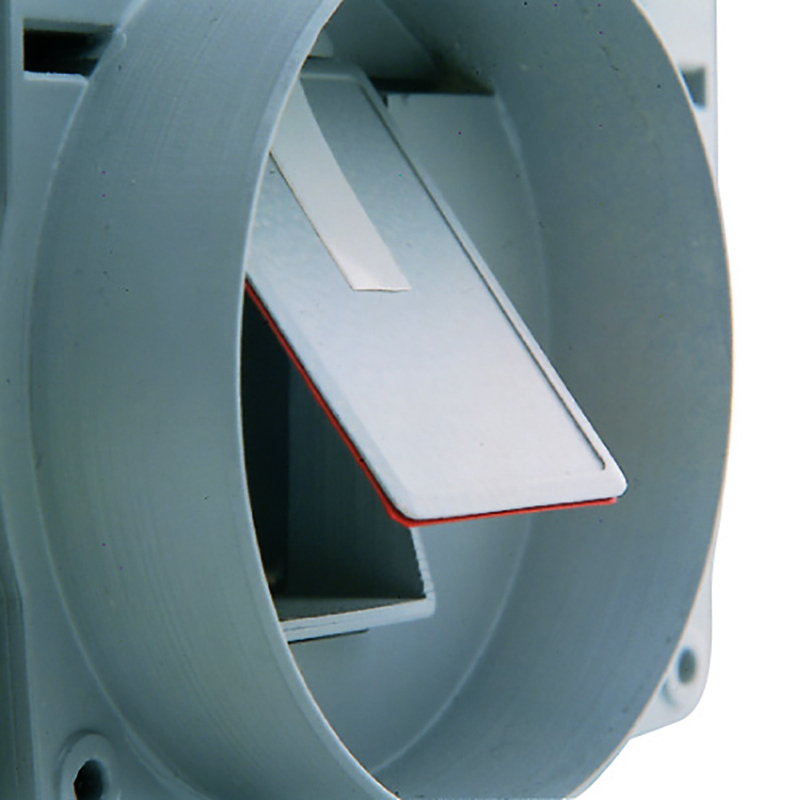

• Non-return damper fitted to outlet port.

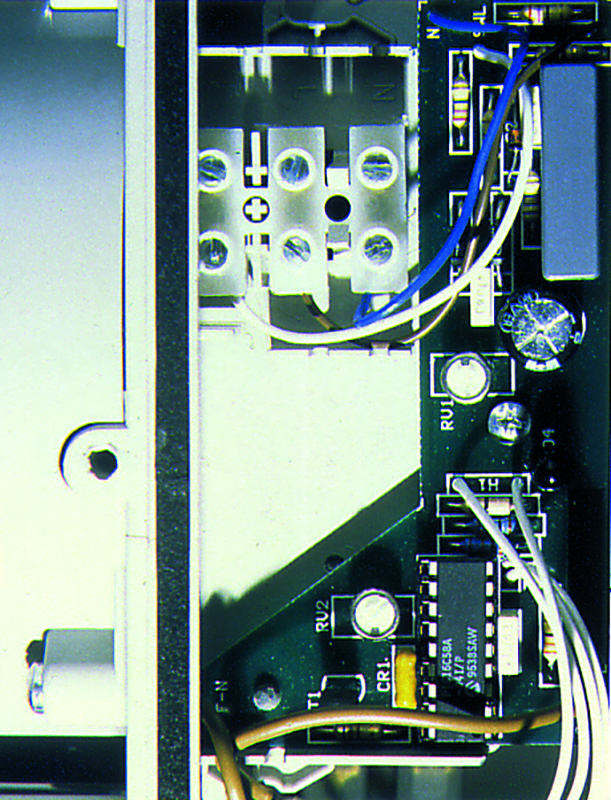

• Vortice speed controller.

Read full descriptionClose description

Certifications

CE
Download
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current (A)

0,14
Max absorbed power (W)

18
Max absorbed power at Max speed (W)

18
Max ambient temperature for continuous operation (°C)

40
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97

Voltage (V)

230
Weight (Kg)

1,47
Max airflow (l/s)

19,4
Max airflow (m³/h)

70

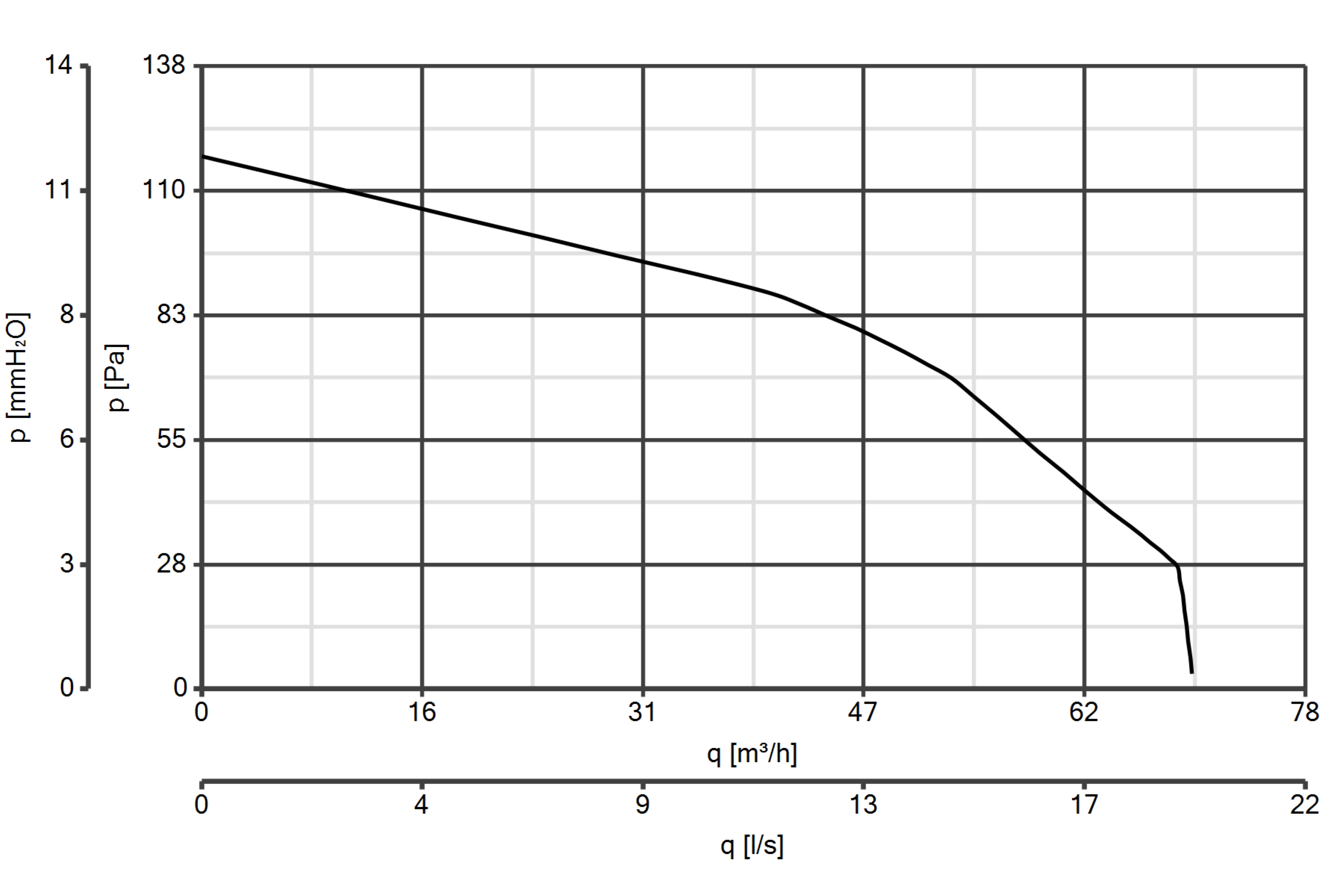

Max pressure (mmH2O)

12
Max pressure (Pa)

118
RPM

2315
Sound pressure Lp [dB (A)] at 3 m

40

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-5,5
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-18,9
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

2,1
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

71
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

13,7
Sound power LWA [dB(A)]

61
Reference airflow [m3/s]

0,0138
Reference ? pressure [Pa]

77
SPI [W/(m3/h)]

0,24547
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

338
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632
