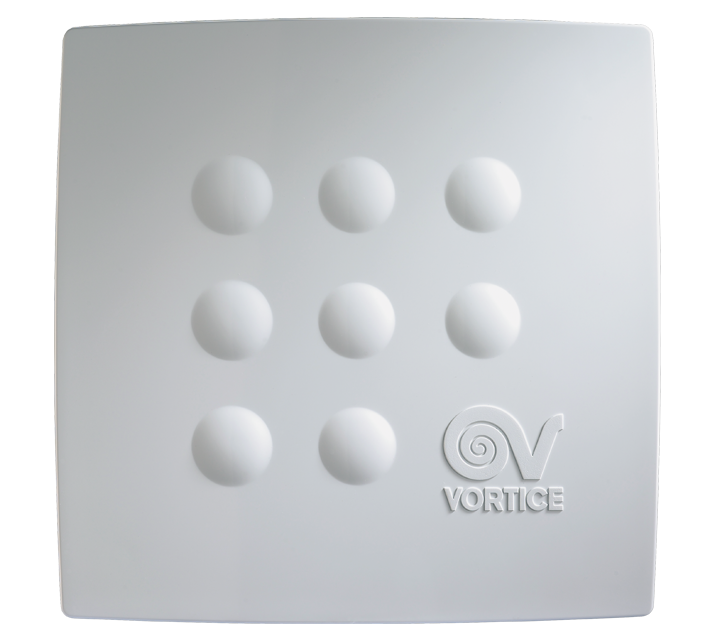

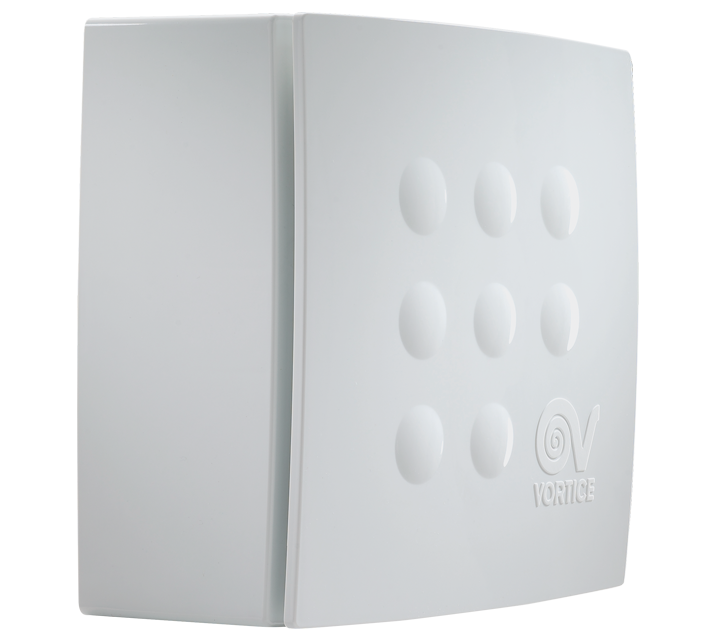

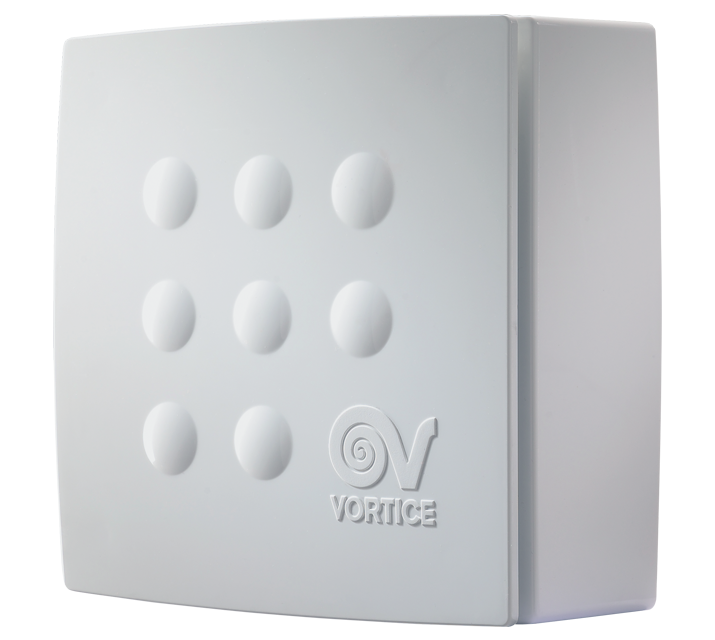

MEDIO

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Vortice speed controller.

Read full descriptionClose description

Certifications

CE
Download
CCC
EAC
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,18
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

29
Max ambient temperature for continuous operation (°C)

50

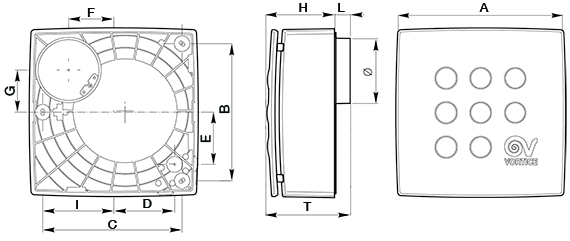

Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

25
Voltage (V)

220-240
Weight (Kg)

2,5
Airflow at 1st speed (l/s)

19

Airflow at 1st speed (m³/h)

70
Max airflow at Max speed (l/s)

33
Max airflow at Max speed (m³/h)

120
Max pressure at Max speed (mmH20)

34
Max pressure at Max speed (Pa)

329
Max RPM

1890
Min RPM

1150
Pressure at 1st speed (mmH20)

22
Pressure at 1st speed (Pa)

216
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

36,7
Sound pressure at 3m at Max speed Lp [dB (A)]

43,4
Sound pressure in free air conditions [dB(A)] 3m

36,7

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Declared type

UVR-U: unidirezionale
Type of drive

velocità multiple: VM
Type of heat recovery system HRS

assente
Control factor CTRL

1
Control type

manuale
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

0
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-14
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

7
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

103
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

29,4
Sound power LWA [dB(A)]

64
Reference airflow [m3/s]

0,0286
Reference ? pressure [Pa]

141
SPI [W/(m3/h)]

0,398
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

0,10
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

549
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632
