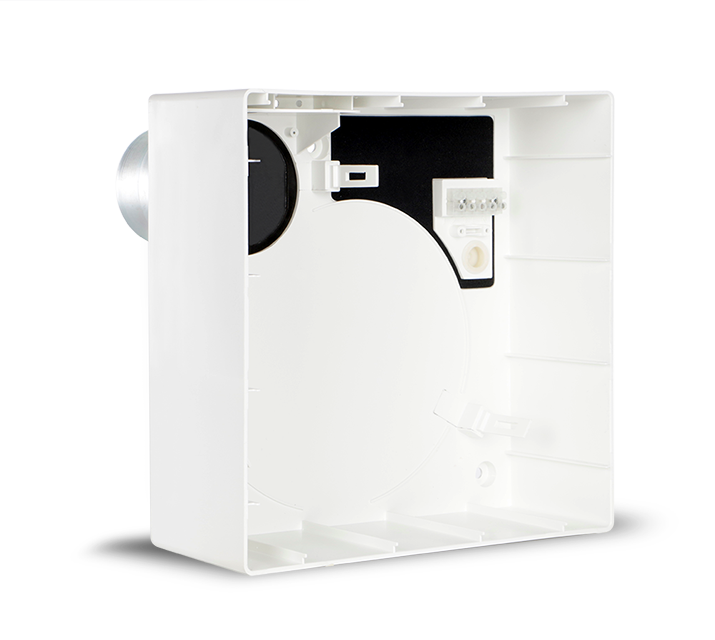

Code 11563

QE-B M VK90

Centrifugal duct fans

qe_b_m
qe_b_m_vk90

Description

• Basic encasement for surface (wall/ceiling) installation, made of ABS plastic.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
Read full descriptionClose description

Certifications

qe_b_m_vk90_ambiente01
qe_b_m_vk90_ambiente02

Technical Data Sheet

  • Nominal diameter (mm)
    80
  • Weight (Kg)
    0,66
  • Size A (mm)
    277
  • Size B (mm)
    277
  • Size C (mm)
    135
  • Size D (mm)
    80
  • Size E (mm)
    73
  • Size F (mm)
    79
  • Size G (mm)
    71,5
  • Size H (mm)
    94
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

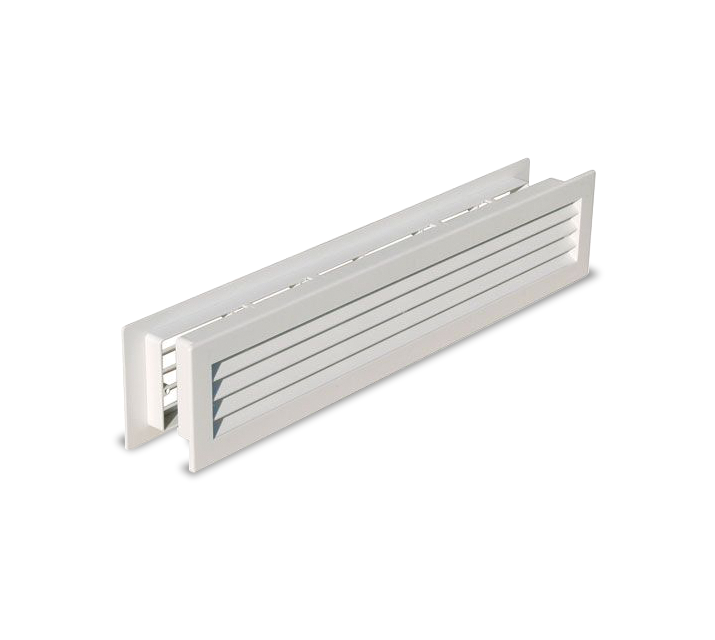

SAWG
SAWG
White plastic grill for door air inlet.
Go to data sheet

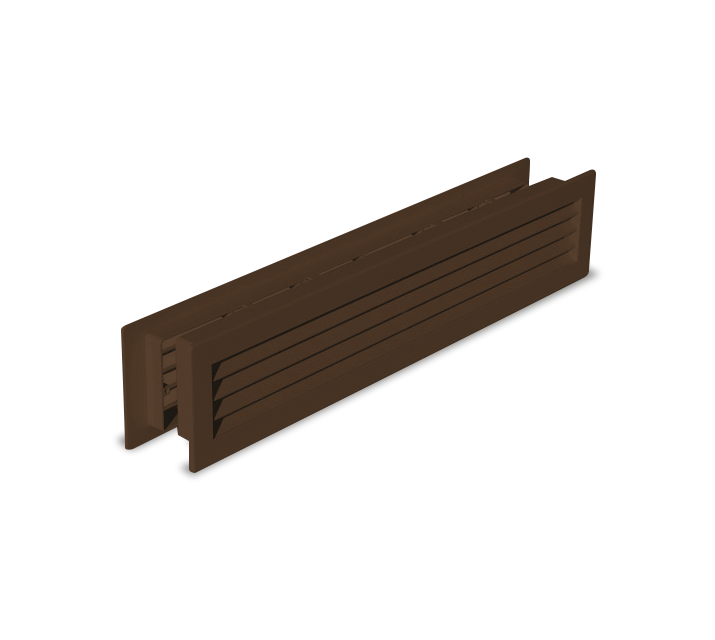

SABG
SABG
Brown plastic grill for door air inlet.
Go to data sheet
AVR 100
AVR 100
Fire damper for duct installation, diam. 100 mm.
Go to data sheet
AVR 125
AVR 125
Fire damper for duct installation, diam. 125 mm.
Go to data sheet
AVR 140
AVR 140
Fire damper for duct installation, diam. 140 mm.
Go to data sheet
AVR 160
AVR 160
Fire damper for duct installation, diam. 160 mm.
Go to data sheet
AVR 180
AVR 180
Fire damper for duct installation, diam. 180 mm.
Go to data sheet

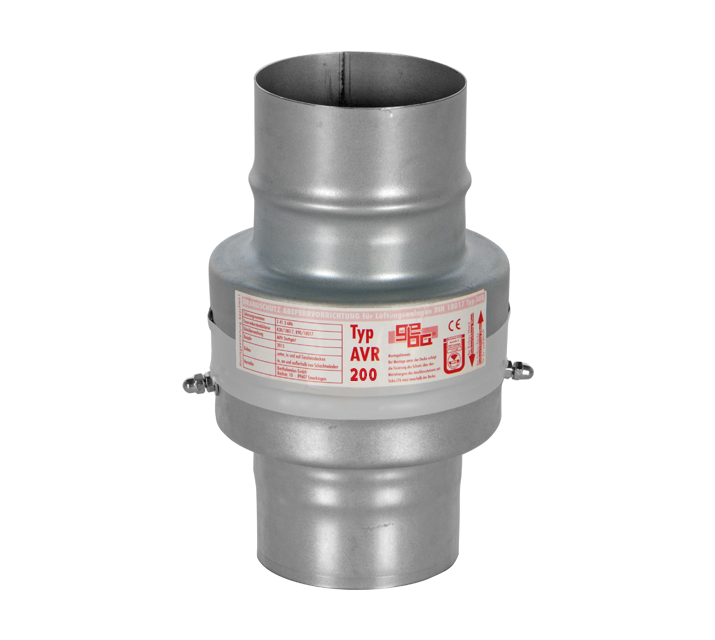

AVR 200
AVR 200
Fire damper for duct installation, diam. 200 mm.
Go to data sheet

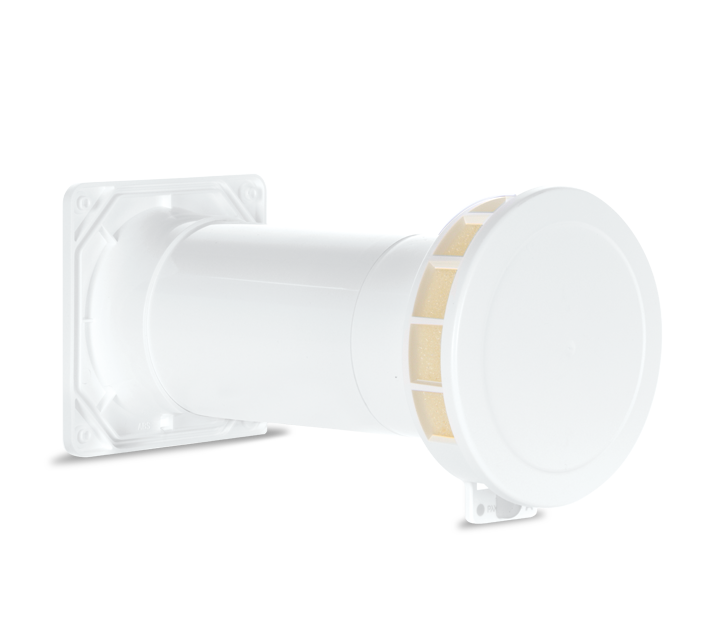

MDV 100
MDV 100
Manually adjustable valve for air return, diam. 100 mm.
Go to data sheet
ADV 100
ADV 100
Automatic valve (thermostat) for return air, diam. 100 mm
Go to data sheet
MSDV 100
MSDV 100
Soundproof, manually adjustable valve for air return, diam. 100 mm.
Go to data sheet

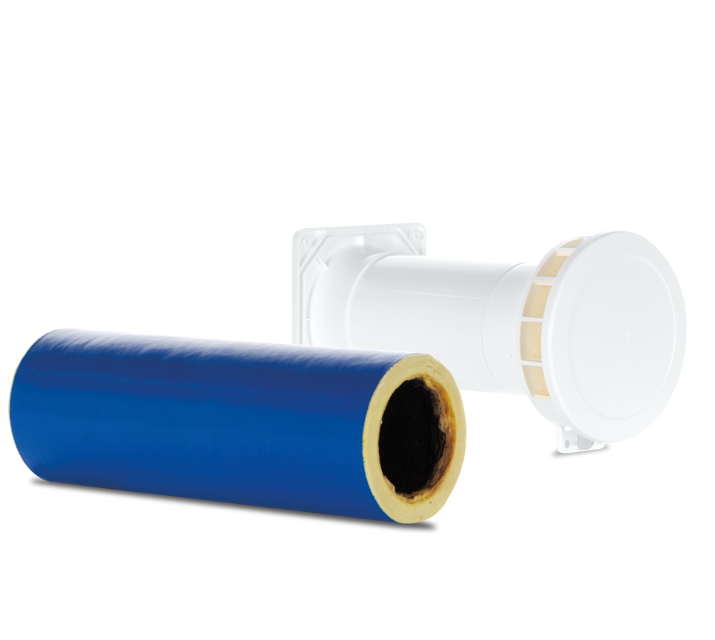

ASDV 100
ASDV 100
Soundproof automatic valve (thermostat) for return air, diam. 100 mm.
Go to data sheet

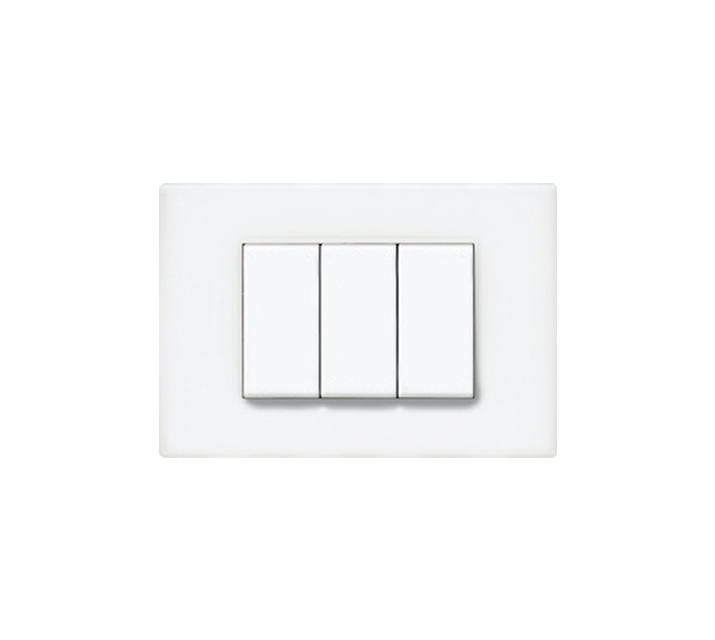

3SS-I
3SS-I
3 speed switch/selector compatible with Standard 503 box.
Go to data sheet
