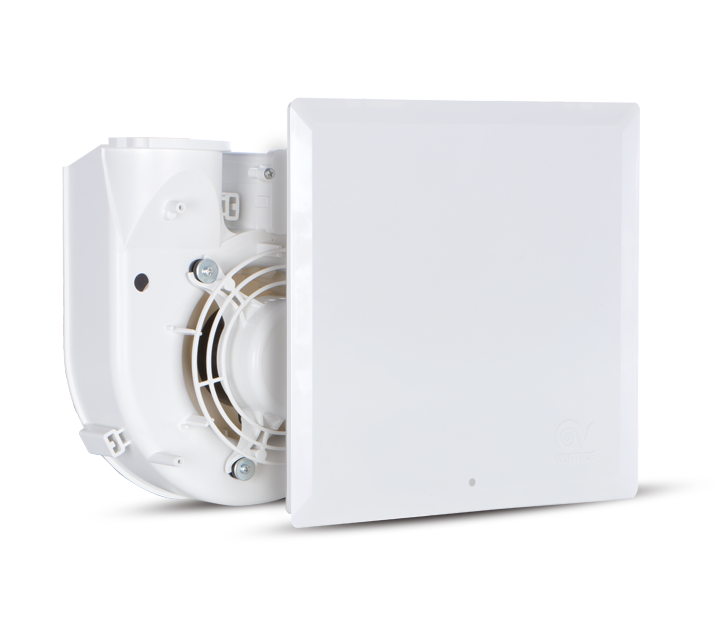

Description

• Scroll and front panel made of self-extinguishing ABS, rated V0.
• Motor housing and filter frame made of ABS plastic.
• 1 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflow: 100 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• Timer EVO mode: the switching on/off of the extractor fan is realized through the light control; the on-board electronic allows to set, during the installation, the starting/stopping delay when the product is switched on/off (the respective delays can be set at 0, 45, 90 or 120 seconds and at 6, 10, 15 or 21 minutes).
HCS mode: the switching on/off of the extractor fan is realized according with ambient relative humidity values detected by the HCS sensor (Humidity Control System) integrated in the on-board electronic. The system operates with two different modes, ensuring the best environmental conditions:
o Exceeding the threshold: the product starts to run when ambient relative humidity exceeds a given threshold, which can be set by the installer at four values: 60%, 70%, 80%, 90% RH (70% is the factory setting). The fan stops its running when the RH level falls below the 15% of the pre-set RH value, or after two hours of continuous running.
o Rapid increase of the RH value: the product automatically starts as a result of a sudden RH increase (> 20% in 10 minutes), and immediately stops to extract air when the RH level falls below the 15% of the pre-set RH value, or after two hours of continuous running.
o Possibility of connection to an external switch to manually control the product, independently from the HR value detected in the air (for example to avoid the switch on of the extractor fan when the outdoor humidity is too high).
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • TUV SUD TUV SUD
  • DIBt DIBt
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
qe_100_ll_tp_hcs_ambiente01
qe_100_ll_tp_hcs_ambiente02
qe_100_ll_tp_hcs_ambiente03
qe_100_ll_tp_hcs_ambiente04

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,17
  • Max absorbed power at Max speed (W)
    26
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    80
  • Ø Discharge hole (mm)
    70
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,33
  • Max airflow at Max speed (l/s)
    27,8
  • Max airflow at Max speed (m³/h)
    100
  • Max pressure at Max speed (mmH20)
    36
  • Max pressure at Max speed (Pa)
    353
  • Max RPM
    1570
  • Sound power at Min speed LWA [dB(A)]
    48
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    30,5
  • Size A (mm)
    262
  • Size B (mm)
    262
  • Size C (mm)
    115,5
  • Size D (mm)
    80
  • Size E (mm)
    73
  • Size F (mm)
    79
  • Size G (mm)
    71,5
  • Size H (mm)
    90

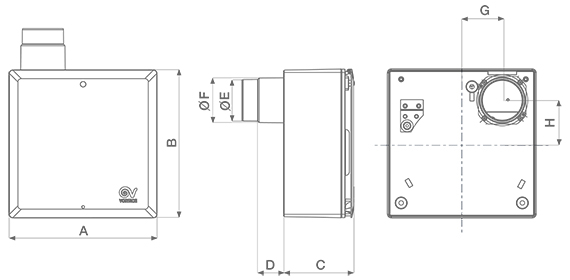

quota

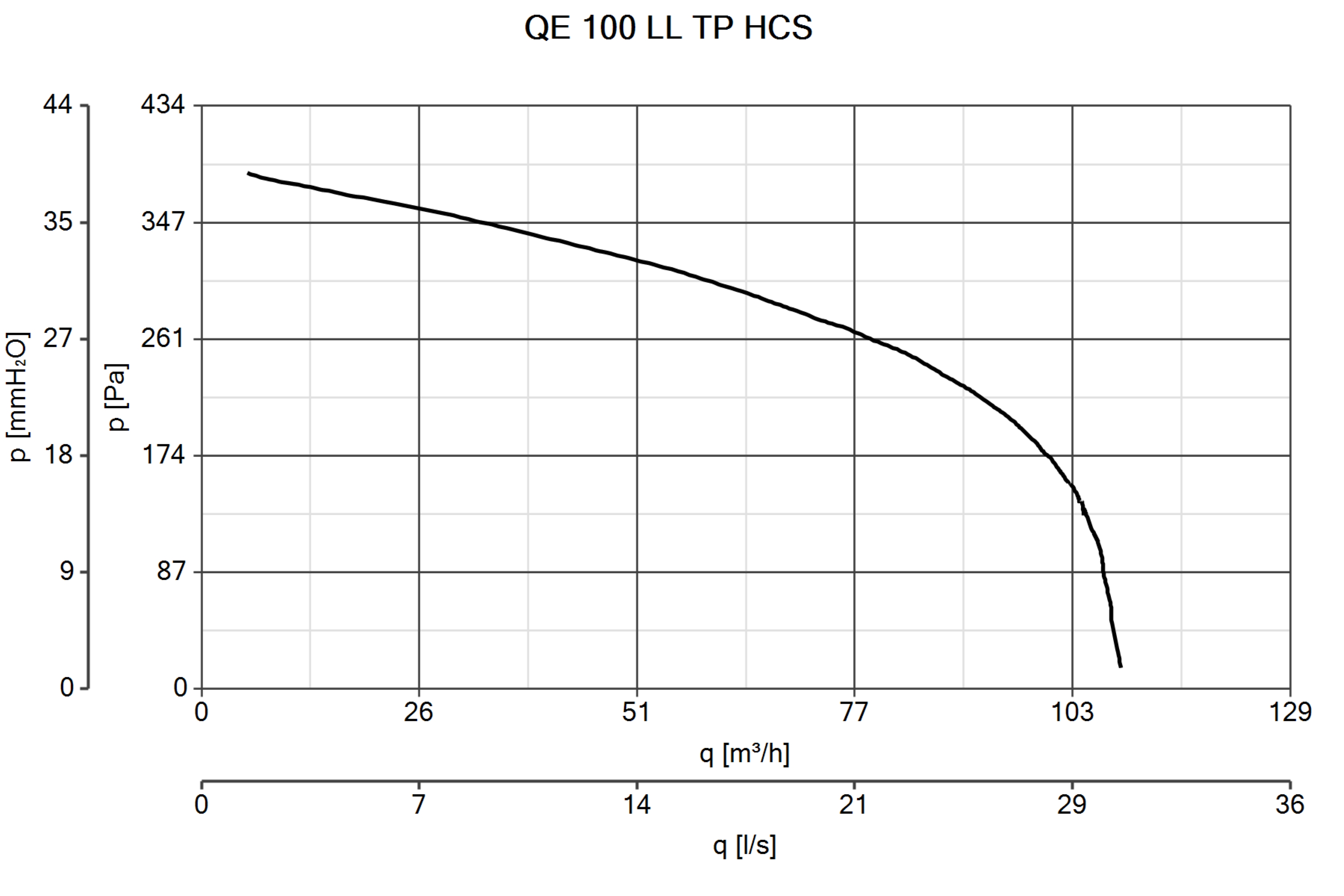

Curva_JPG_11538-Curve_per_Catalogo
