Description
• Scroll and front panel made of self-extinguishing ABS, rated V0.
• Motor housing and filter frame made of ABS plastic.
• 1 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflow: 100 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• The switching on/off of the extractor fan is realized through the light control; the on-board electronic allows to set, during the installation, the starting/stopping delay when the product is switched on/off (the respective delays can be set at 0, 45, 90 or 120 seconds and at 6, 10, 15 or 21 minutes).
To ensure a proper ventilation of the room, even for extended inactivity periods, is possible to set (HOLIDAY function), every 8, 12 or 24 hours, a periodic running operation cycle (time settable at 6, 10, 15 or 21 minutes).
• Motor housing and filter frame made of ABS plastic.
• 1 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflow: 100 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• The switching on/off of the extractor fan is realized through the light control; the on-board electronic allows to set, during the installation, the starting/stopping delay when the product is switched on/off (the respective delays can be set at 0, 45, 90 or 120 seconds and at 6, 10, 15 or 21 minutes).
To ensure a proper ventilation of the room, even for extended inactivity periods, is possible to set (HOLIDAY function), every 8, 12 or 24 hours, a periodic running operation cycle (time settable at 6, 10, 15 or 21 minutes).
Certifications
-
Download
CE
-
TUV SUD
-
DIBt
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP45
-
Max absorbed current at Max speed (A)0,17
-
Max absorbed power at Max speed (W)26
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)80
-
Ø Discharge hole (mm)70
-
Voltage (V)220-240
-
Weight (Kg)2,33
-

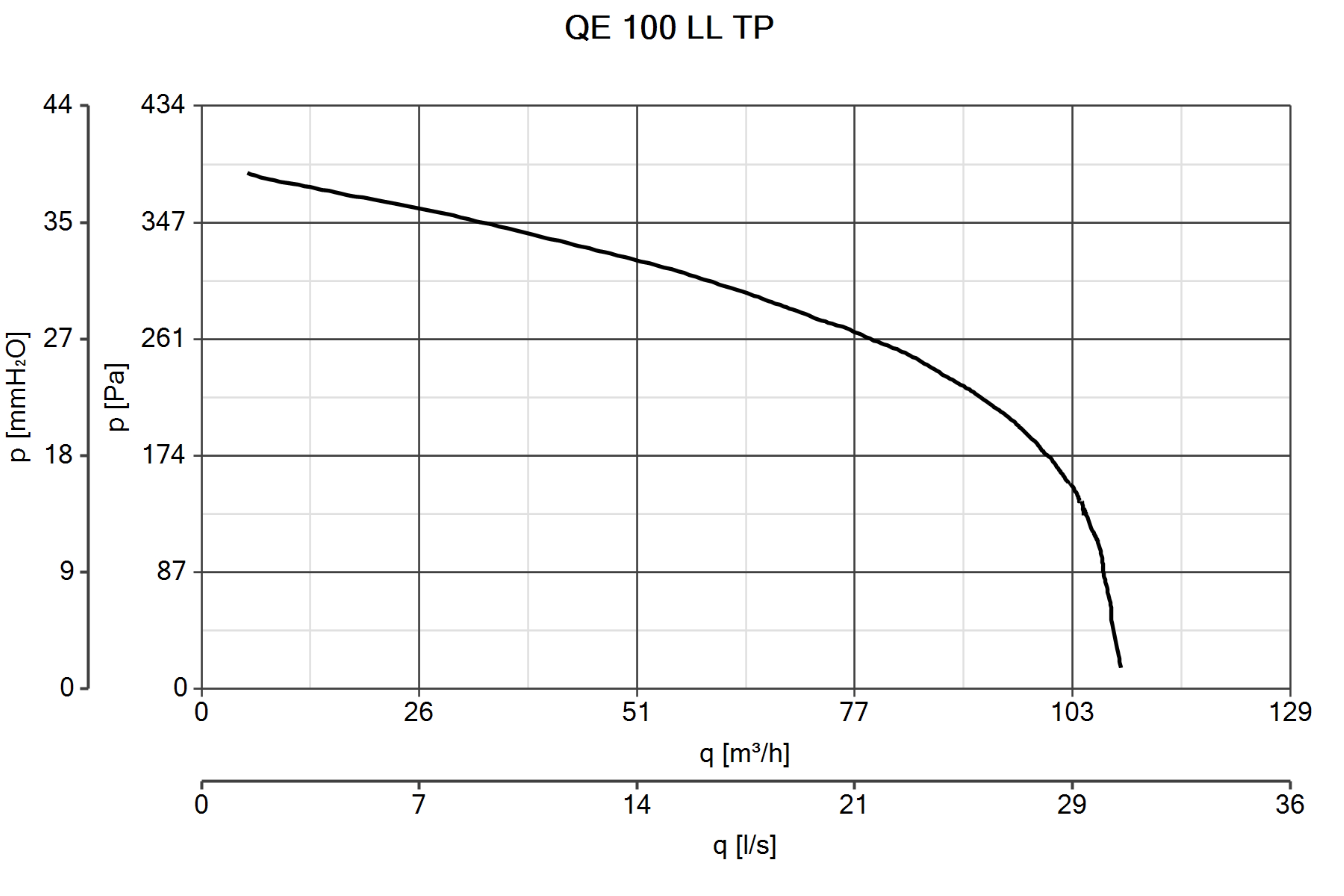

Max airflow at Max speed (l/s)27,8
-
Max airflow at Max speed (m³/h)100
-
Max pressure at Max speed (mmH20)36
-
Max pressure at Max speed (Pa)353
-
Max RPM1570
-
Sound power at Min speed LWA [dB(A)]48
-
Sound pressure at 3m at Max speed Lp [dB (A)]30,5
-
Size A (mm)262
-
Size B (mm)262
-
Size C (mm)115,5
-
Size D (mm)80
-
Size E (mm)73
-
Size F (mm)79
-
Size G (mm)71,5
-
Size H (mm)90
