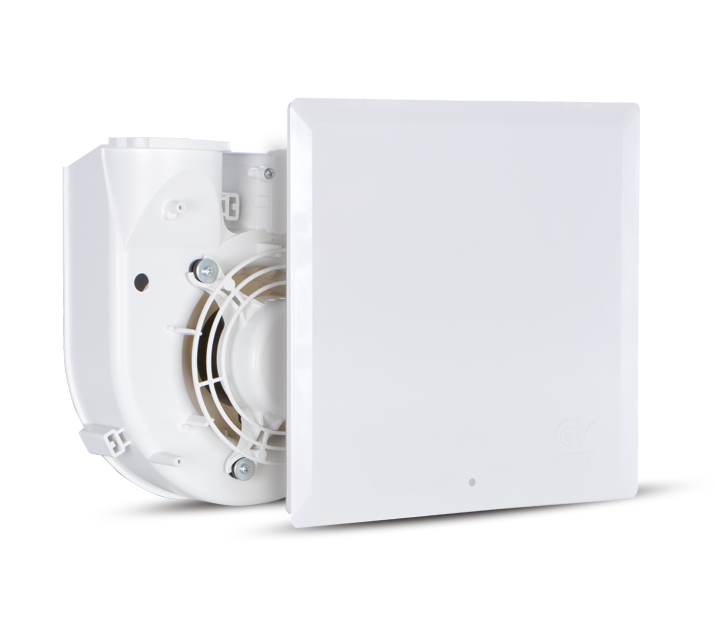

Description
• Scroll and front panel made of self-extinguishing ABS, rated V0.
• Motor housing and filter frame made of ABS plastic.
• 2 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflows: 60 / 35 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• The switching on/off of the extractor fan is realized through the light control; the on-board electronic allows to set, during the installation, the starting/stopping delay of the product when the light is switched on/off (the delay can be set between 0 and 45 seconds and between 0 and 20 minutes). Different level of performances, or rather the transition from Min to Max speed, can be realized through an external switch. During the installation, is also possible to set the continuous running mode at minimum speed (Continuous Ventilation of the room), moving to the higher speed selection through the switching on/off of the light control (Boost mode)
• Motor housing and filter frame made of ABS plastic.
• 2 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflows: 60 / 35 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• The switching on/off of the extractor fan is realized through the light control; the on-board electronic allows to set, during the installation, the starting/stopping delay of the product when the light is switched on/off (the delay can be set between 0 and 45 seconds and between 0 and 20 minutes). Different level of performances, or rather the transition from Min to Max speed, can be realized through an external switch. During the installation, is also possible to set the continuous running mode at minimum speed (Continuous Ventilation of the room), moving to the higher speed selection through the switching on/off of the light control (Boost mode)
Certifications
-
Download
CE
-
TUV SUD
-
DIBt
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP45
-
Max absorbed current at Max speed (A)0,14
-
Max absorbed current at Min speed (A)0,11
-
Max absorbed power at Max speed (W)16
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)80
-
Ø Discharge hole (mm)70
-
Power absorbed at 1st speed (W)9
-
Voltage (V)220-240
-
Weight (Kg)2,33
-
Airflow at 1st speed (l/s)9,7
-
Airflow at 1st speed (m³/h)35
-
Max airflow at Max speed (l/s)16,7
-
Max airflow at Max speed (m³/h)60
-
Max pressure at Max speed (mmH20)35
-
Max pressure at Max speed (Pa)343
-
Max RPM1170
-
Min RPM855
-
Pressure at 1st speed (mmH20)10
-
Pressure at 1st speed (Pa)98
-
Sound power at Min speed LWA [dB(A)]38
-
Sound power at Min speed LWA [dB(A)]43
-
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]25,5
-
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]20,5
-

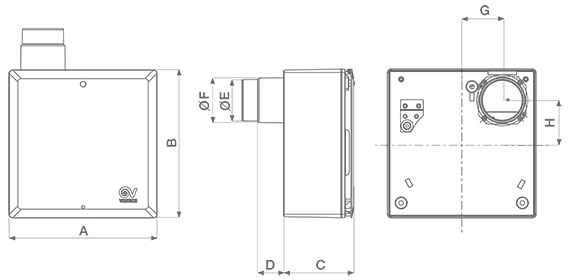

Size A (mm)262
-
Size B (mm)262
-
Size C (mm)115,5
-
Size D (mm)80
-
Size E (mm)73
-
Size F (mm)79
-
Size G (mm)71,5
-
Size H (mm)90
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
