Description

• Scroll and front panel made of self-extinguishing ABS, rated V0.
• Motor housing and filter frame made of ABS plastic.
• 1 speed AC motor, shaft on ball bearings, coupled to a forward curved centrifugal impeller, PBT made.
• Nominal airflow: 60 m3/h
• G2 filter, with a clogged filter mechanic alarm fully compliant with ErP reg. N° 1253/2014/UE, in force since 1st January 2018.
• The switching on/off of the product can be realized through a dedicated external switch or the light control.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • TUV SUD TUV SUD
  • DIBt DIBt
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
qe_60_ll_ambiente01
qe_60_ll_ambiente02
qe_60_ll_ambiente03
qe_60_ll_ambiente04

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,14
  • Max absorbed power at Max speed (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    80
  • Ø Discharge hole (mm)
    70
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,33
  • Max airflow at Max speed (l/s)
    16,7
  • Max airflow at Max speed (m³/h)
    60
  • Max pressure at Max speed (mmH20)
    35
  • Max pressure at Max speed (Pa)
    343
  • Max RPM
    1170
  • Sound power at Min speed LWA [dB(A)]
    43
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    25,5
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Control type
    manuale
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Size A (mm)
    262
  • Size B (mm)
    262
  • Size C (mm)
    115,5
  • Size D (mm)
    80
  • Size E (mm)
    73
  • Size F (mm)
    79
  • Size G (mm)
    71,5
  • Size H (mm)
    90
quota

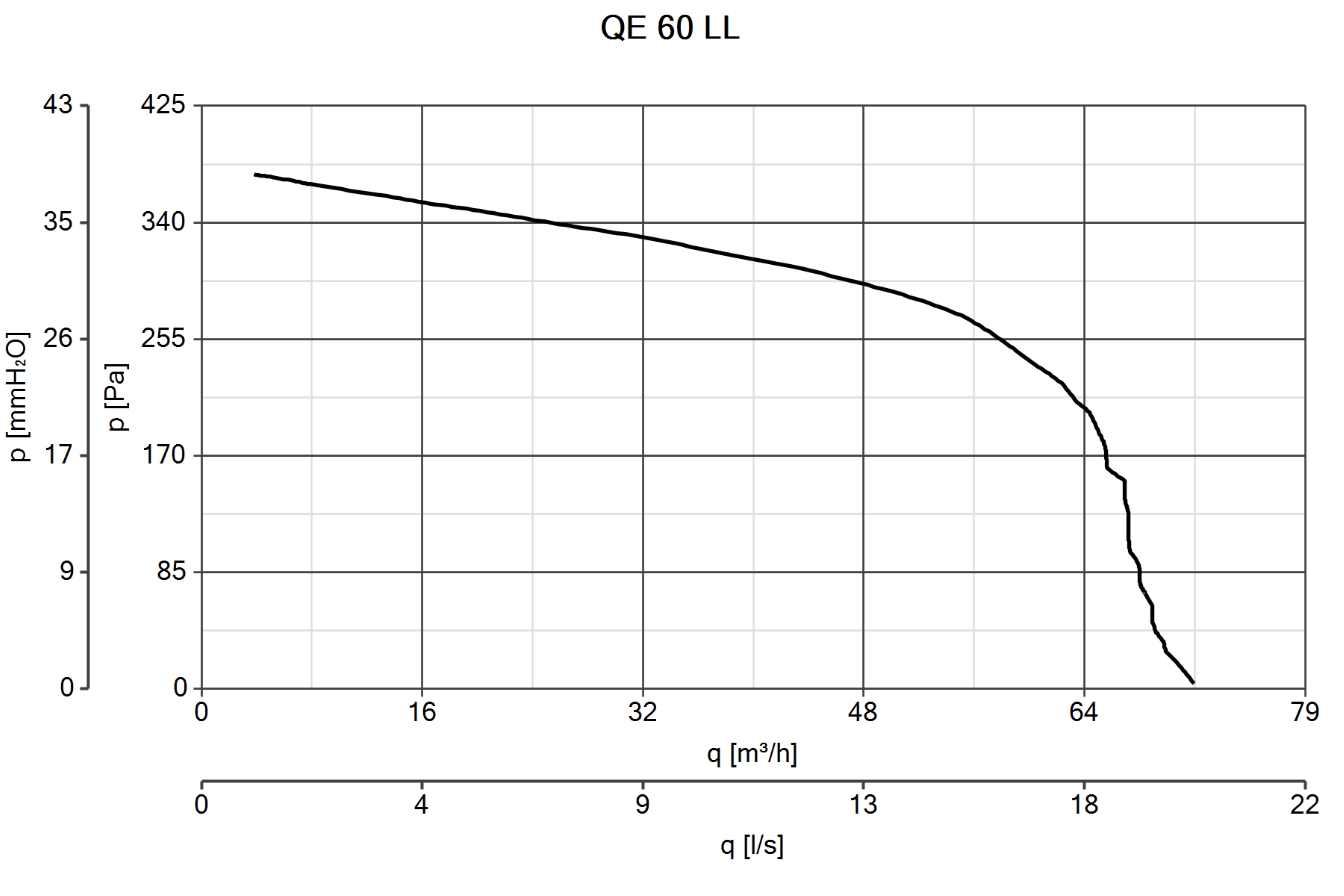

Curva_JPG_11521-Curve_per_Catalogo
