Code 10904

AXIAL K

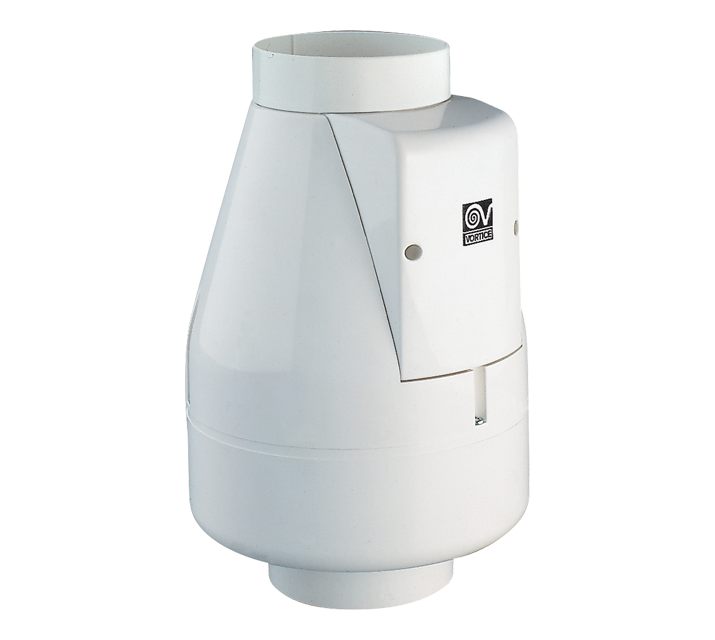

In-Line centrifugal fans for kitchen cabinet (UK EXP)

axial_k_01

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• 1 speed motor with thermal overload protection and shaft turning in self-lubricating bushings, coupled to a centrifugal impeller.
• Maximum air flow 135 m3/h
• Protection grille on inlet port
• Vortice speed controller.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X2
  • Max absorbed current (A)
    0,13
  • Max absorbed power (W)
    27
  • Max ambient temperature for continuous operation (°C)
    40
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,2
  • Max airflow (l/s)
    37,5
  • Max airflow (m³/h)
    135
  • Max pressure (mmH2O)
    17
  • Max pressure (Pa)
    167
  • RPM
    2560
  • Sound pressure Lp [dB (A)] at 3 m
    41
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -1,8
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -10,5
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    10,5
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    78
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    27,0
  • Sound power LWA [dB(A)]
    64
  • Reference airflow [m3/s]
    0,0152
  • Reference ? pressure [Pa]
    129
  • SPI [W/(m3/h)]
    0,48901
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    613
  • AHS temperate annual energy saved [kWh primary energy/y]
    1715
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632

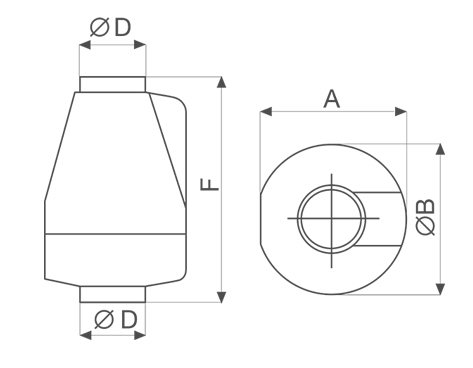

  • Size A (mm)
    168
  • Size B (mm)
    Ø 176
  • Size D (mm)
    Ø 97
  • Size F (mm)
    270
quota

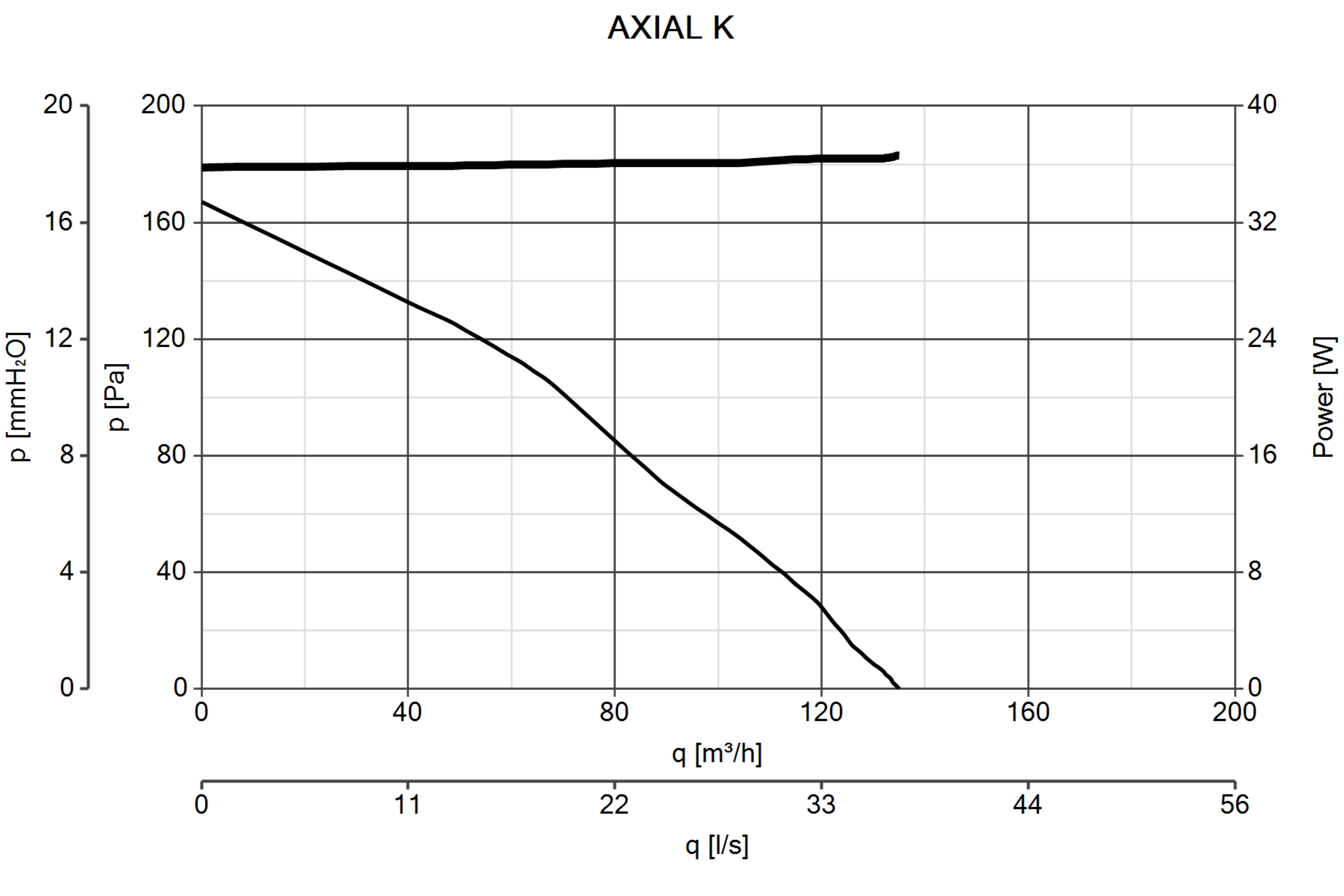

Curva_JPG_10904-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SCNRB I
SCNRB I
• Non-reversible electronic speed controller. • Built-in.
Go to data sheet
CA-MU (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
Go to data sheet
C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
Go to data sheet
DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
Go to data sheet
