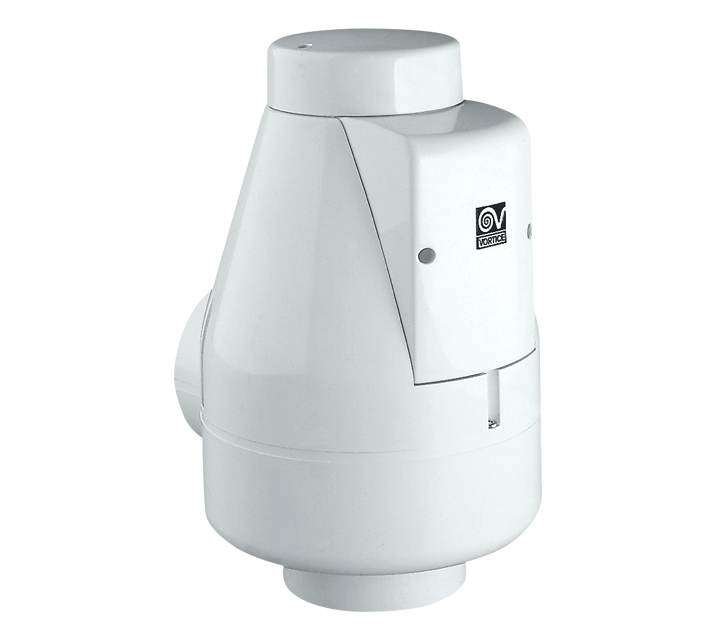

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• 2 speed motor with thermal overload protection and shaft turning in self-lubricating bushings, coupled to a centrifugal impeller.
• Minimum air flow 86 m3/h
• Maximum air flow: 140 m3/h
• Protection grille on inlet port
• Vortice speed controller.

Read full descriptionClose description

Certifications

CE
Download
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X2
Max absorbed current (A)

0,16
Max absorbed current at Min speed (A)

0,12
Max absorbed power (W)

35
Max ambient temperature for continuous operation (°C)

40
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

29
Voltage (V)

220-240
Weight (Kg)

1,27

Airflow at 1st speed (l/s)

23,9
Airflow at 1st speed (m³/h)

86
Max airflow at Max speed (l/s)

38,9
Max airflow at Max speed (m³/h)

140
Max pressure at Max speed (mmH20)

17
Max pressure at Max speed (Pa)

157
Max RPM

2180
Min RPM

1410
Pressure at 1st speed (mmH20)

13,5
Pressure at 1st speed (Pa)

132
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

33
Sound pressure at 3m at Max speed Lp [dB (A)]

43

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-2,2
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-10,9
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

10,1
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

75
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

29,2
Sound power LWA [dB(A)]

62
Reference airflow [m3/s]

0,0146
Reference ? pressure [Pa]

82
SPI [W/(m3/h)]

0,47619
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

597
AHS temperate annual energy saved [kWh primary energy/y]

1715
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632
