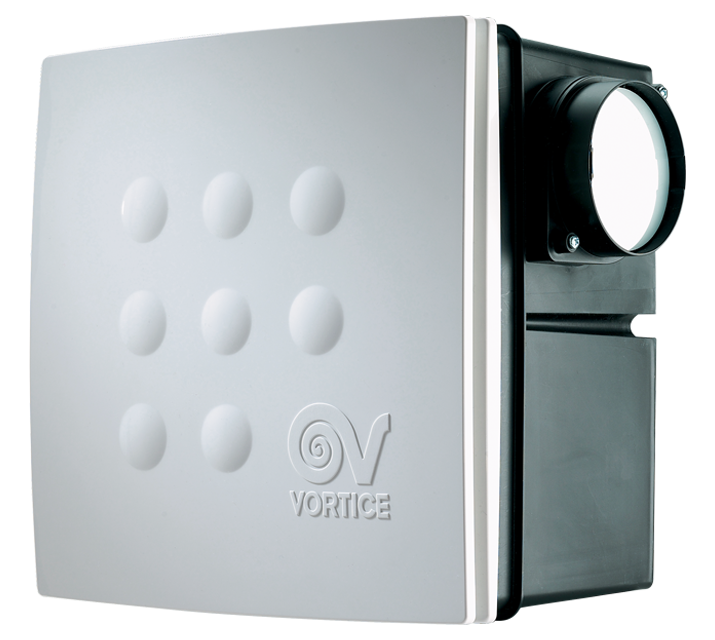

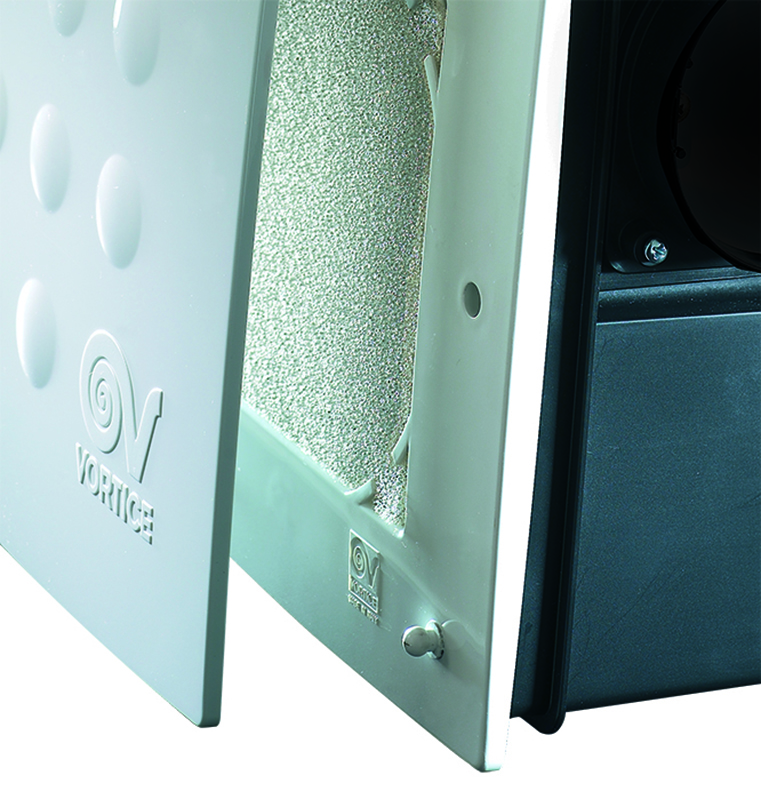

Description
• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• 3 speed fan through TRIO-S controller (code 12871), consisting of:
• capacitor start induction motor equipped with thermal overload cutout and self-lubricating bushings,
• forward centrifugal impeller.
• Electronic pcb with humidistat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• 3 speed fan through TRIO-S controller (code 12871), consisting of:
• capacitor start induction motor equipped with thermal overload cutout and self-lubricating bushings,
• forward centrifugal impeller.
• Electronic pcb with humidistat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
Certifications
-
EAC
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,5
-
Max absorbed current at Min speed (A)0,36
-
Max absorbed power at Max speed (W)115
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)100
-
Ø Discharge hole (mm)97
-
Power absorbed at 1st speed (W)50
-
Voltage (V)220-240
-
Weight (Kg)4,27
-
Airflow at 1st speed (l/s)38
-
Airflow at 1st speed (m³/h)140
-
Max airflow at Max speed (l/s)79
-
Max airflow at Max speed (m³/h)285
-
Max pressure at Max speed (mmH20)48
-
Max pressure at Max speed (Pa)476
-
Max RPM2160
-
Min RPM1300
-
Pressure at 1st speed (mmH20)20
-
Pressure at 1st speed (Pa)196
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed33,6
-
Sound pressure at 3m at Max speed Lp [dB (A)]46,7
-
Sound pressure level at 3 m at Max speed on extraction side [dB(A)]44,6
-
Sound pressure level at 3 m at Min speed on extraction side [dB(A)]30
-
Supplier's name or trade markVortice
-
Declared typeUVNR-U
-
Type of drivea velocità multiple: VM
-
Type of heat recovery system HRSnessuno
-
AEC annual electric energy consuption (kWh of primary energy/y)NA
-
Thermal efficiency of heat recovery (%)NA
-
Nominal NRVU airflow (m3/s)0,05833
-
Effective electic power input [kW]0,095
-
Face velocity at nominal flowrate (m/s)7,894
-
Nominal external pressure (Pa)205
-
Internal pressure drop of ventilation components (Pa)245
-
Internal pressure drop of non-ventilation components (Pa)0
-
Fan static efficiency according to Regulation (EU) No 327/2011 (%)27,6
-
Declared maximum internal leakage rate of the ventilation unit casing (%)NA
-
Declared maximum external leakage rate of the ventilation unit casing (%)NA
-
Filter energy performance or classificationNA
-
Description of visual filter warningNA
-
Casing sound power level (LWA) [dB(A)]67
-

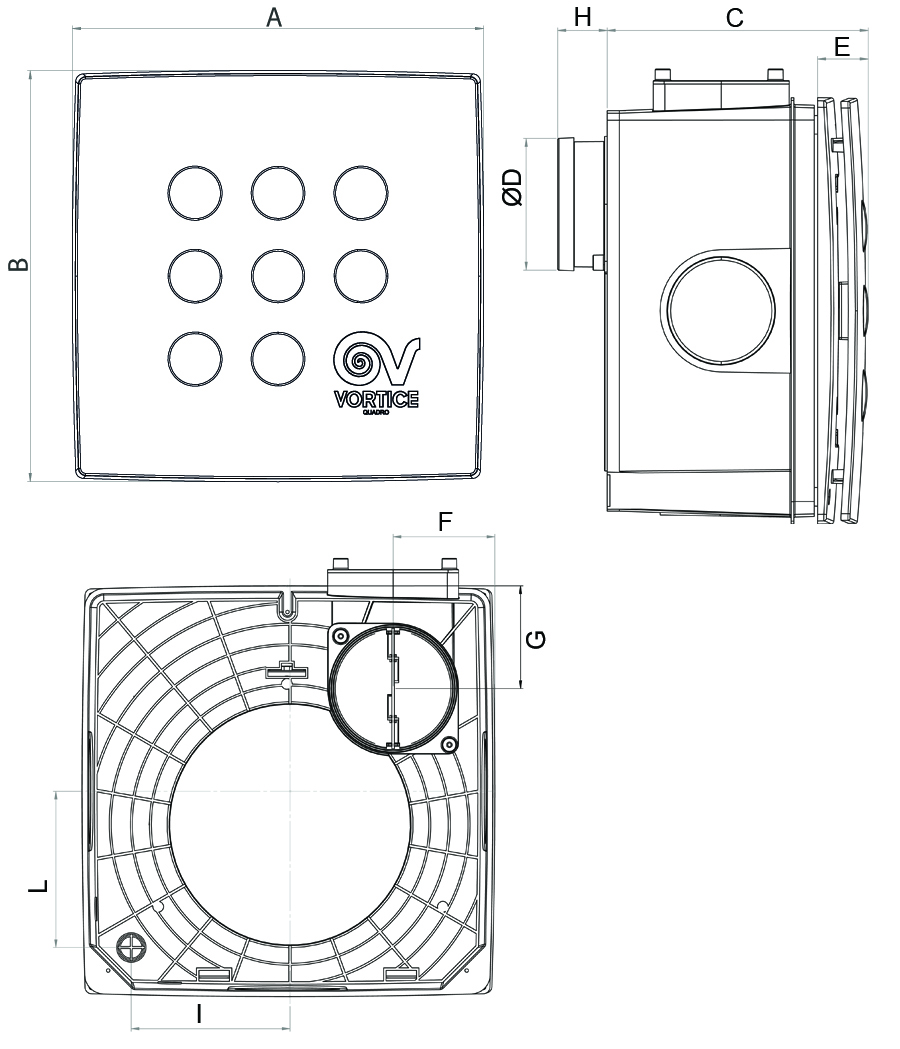

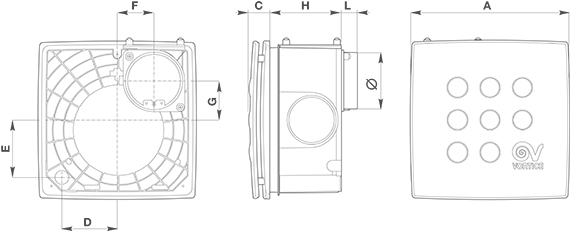

Size A (mm)314
-
Size B (mm)314
-
Size C (mm)190
-
Size D (mm)ø 97
-
Size E (mm)37
-
Size F (mm)76
-
Size G (mm)79
-
Size H (mm)37
-
Size I (mm)120
-
Size L (mm)120
