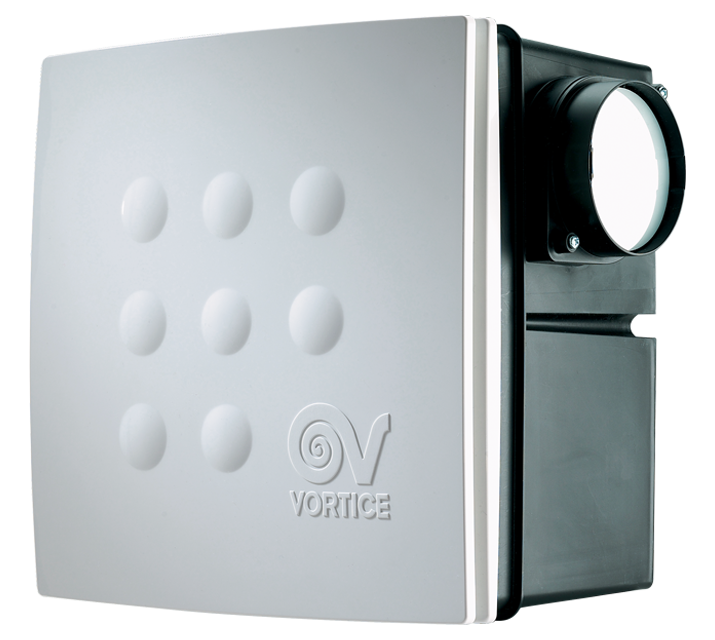

MEDIO I T HCS

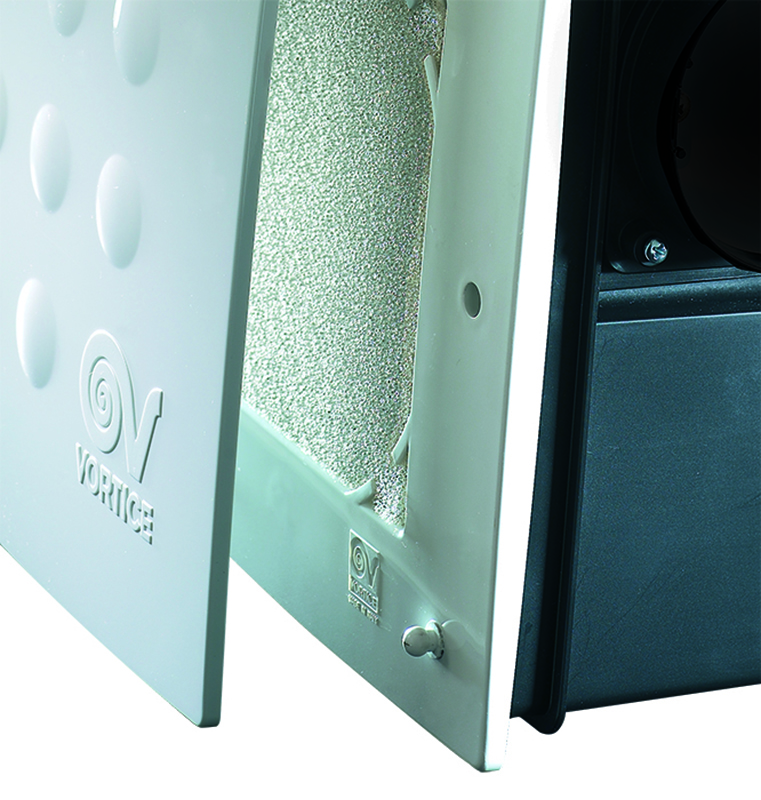

Description

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller, with thermal overload cutout and self-lubricating bushings.
• Minimum air flow 130 m3/h
Maximum air flow 180 m3/h
• Electronic pcb with humidostat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).

Read full descriptionClose description

Certifications

CE
Download
EAC
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,18
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

29
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

25
Voltage (V)

220-240
Weight (Kg)

2,8
Airflow at 1st speed (l/s)

19

Airflow at 1st speed (m³/h)

70
Max airflow at Max speed (l/s)

34
Max airflow at Max speed (m³/h)

122
Max pressure at Max speed (mmH20)

34
Max pressure at Max speed (Pa)

331
Max RPM

1890
Min RPM

1150
Pressure at 1st speed (mmH20)

21
Pressure at 1st speed (Pa)

206
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

41,2
Sound pressure at 3m at Max speed Lp [dB (A)]

35,9
Sound pressure level at 3 m at Max speed on extraction side [dB(A)]

39,6
Sound pressure level at 3 m at Min speed on extraction side [dB(A)]

33,4

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Declared type

UVR-U: unidirezionale
Type of drive

velocità multiple: VM
Type of heat recovery system HRS

assente
Control factor CTRL

1
Control type

manuale
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-1
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-14
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

7
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

106
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

29,6
Sound power LWA [dB(A)]

62
Reference airflow [m3/s]

0,02944
Reference ? pressure [Pa]

196
SPI [W/(m3/h)]

0,384
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

0,06
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

529
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

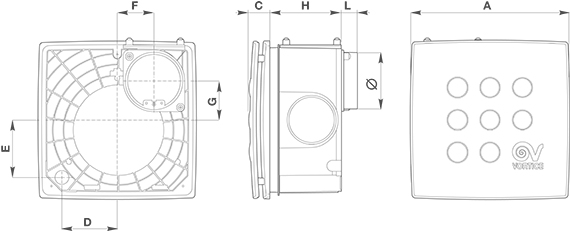

Size A (mm)

287
Size C (mm)

37
Size D (mm)

97
Size E (mm)

103
Size F (mm)

72
Size G (mm)

69
Size H (mm)

130
Size L (mm)

26
