Code 12024

SUPER I T

Centrifugal duct fans for flush mounting

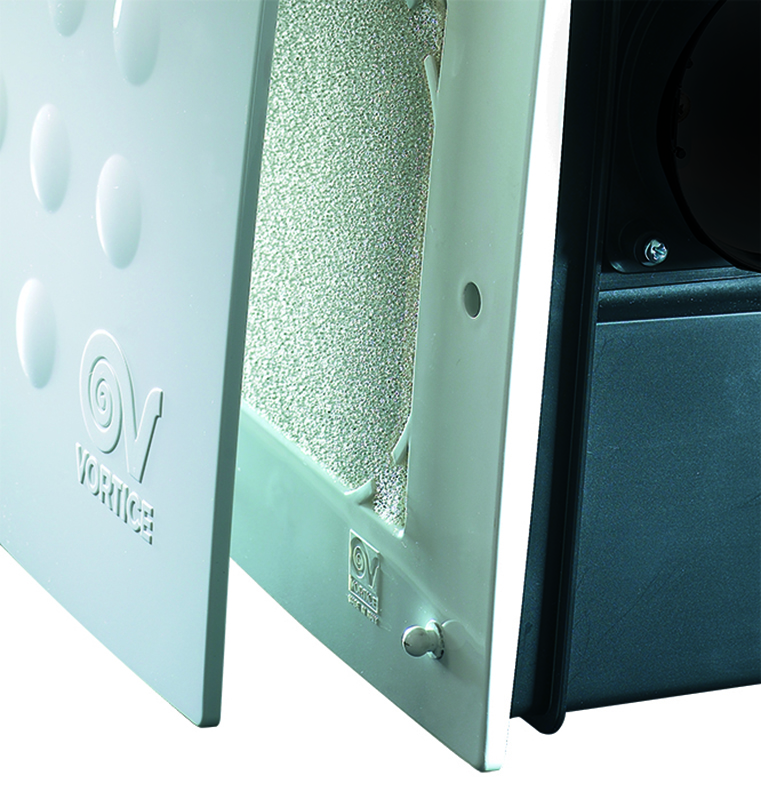

vort_quadro_i_01

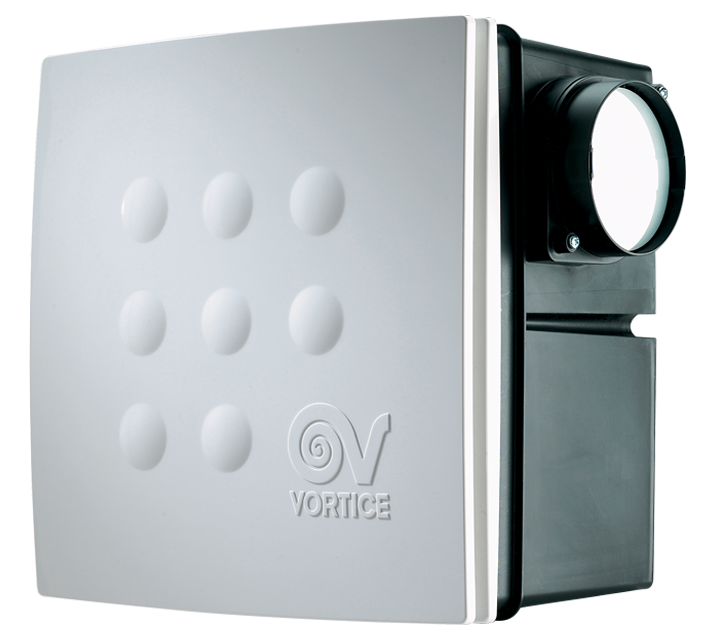

vort_quadro_i_02

Description

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• 3 speed fan through TRIO-S controller (code 12871), consisting of:
• capacitor start induction motor equipped with thermal overload cutout and self-lubricating bushings,
• forward centrifugal impeller.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Read full descriptionClose description

Certifications

  • CB TEST CERTIFICATE CB TEST CERTIFICATE

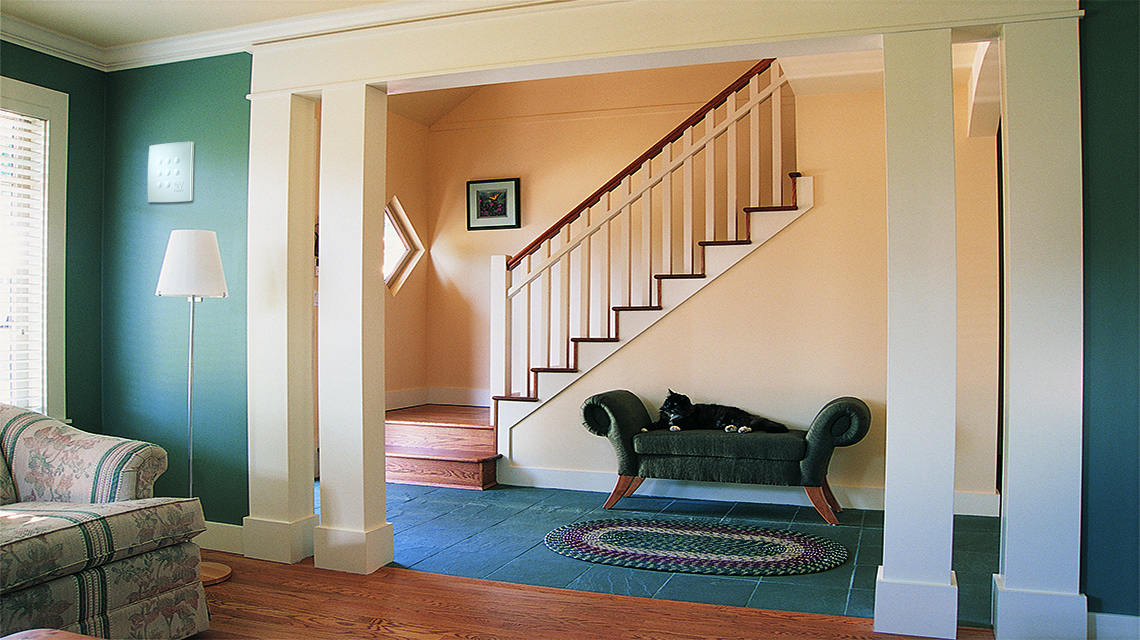

vort_quadro_i_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,5
  • Max absorbed current at Min speed (A)
    0,36
  • Max absorbed power at Max speed (W)
    115
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    50
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,27
  • Airflow at 1st speed (l/s)
    38
  • Airflow at 1st speed (m³/h)
    140
  • Max airflow at Max speed (l/s)
    79
  • Max airflow at Max speed (m³/h)
    285
  • Max pressure at Max speed (mmH20)
    48
  • Max pressure at Max speed (Pa)
    476
  • Max RPM
    2160
  • Min RPM
    1300
  • Pressure at 1st speed (mmH20)
    20
  • Pressure at 1st speed (Pa)
    196
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    33,6
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    46,7
  • Sound pressure level at 3 m at Max speed on extraction side [dB(A)]
    44,6
  • Sound pressure level at 3 m at Min speed on extraction side [dB(A)]
    30
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,05833
  • Effective electic power input [kW]
    0,095
  • Face velocity at nominal flowrate (m/s)
    7,894
  • Nominal external pressure (Pa)
    205
  • Internal pressure drop of ventilation components (Pa)
    245
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    27,6
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]
    67

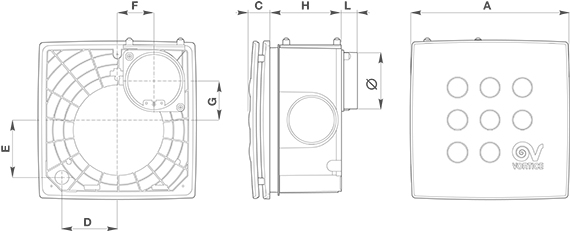

  • Size A (mm)
    314
  • Size B (mm)
    314
  • Size C (mm)
    190
  • Size D (mm)
    ø 97
  • Size E (mm)
    37
  • Size F (mm)
    76
  • Size G (mm)
    79
  • Size H (mm)
    37
  • Size I (mm)
    120
  • Size L (mm)
    120
quota
Curva_JPG_12024-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
Go to data sheet
KIT SOFFITTO SUPER
KIT SOFFITTO SUPER
• Kit for ceiling mounting of Quadro built-in models.
Go to data sheet
TRIO-S
TRIO-S
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
Go to data sheet
