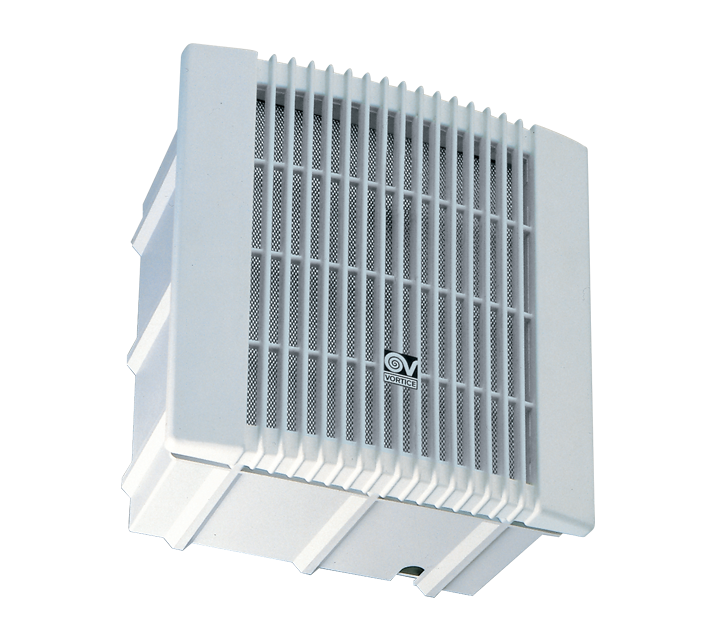

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings.

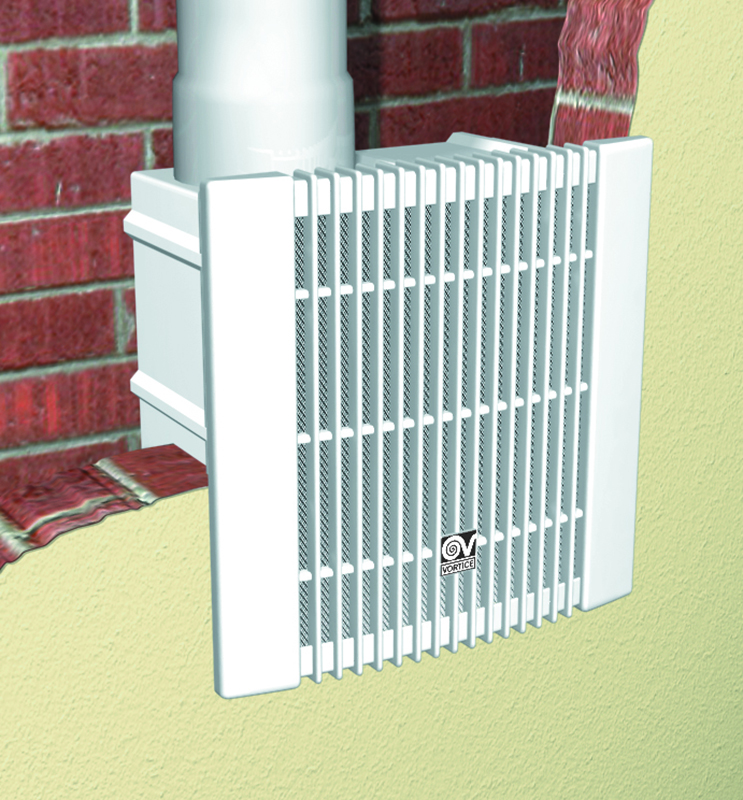

• Minimum air flow, rear outlet: 55 m3/h
Maximum air flow, rear outlet: 118 m3/h

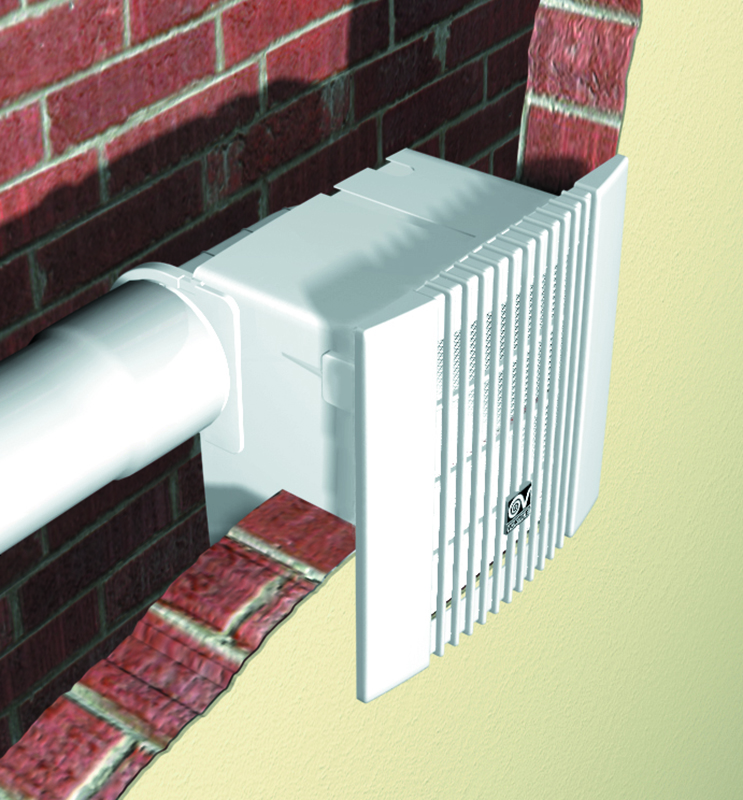

• Minimum air flow, side outlet: 67 m3/h
Maximum air flow, side outlet: 140 m3/h
• Equipped with “smart” timer: when lights are switched on, the fan will start up after 40”approx; when lights are switched off, the fan stays on for between 30” and 30’ (adjustable), running at minimum speed.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.

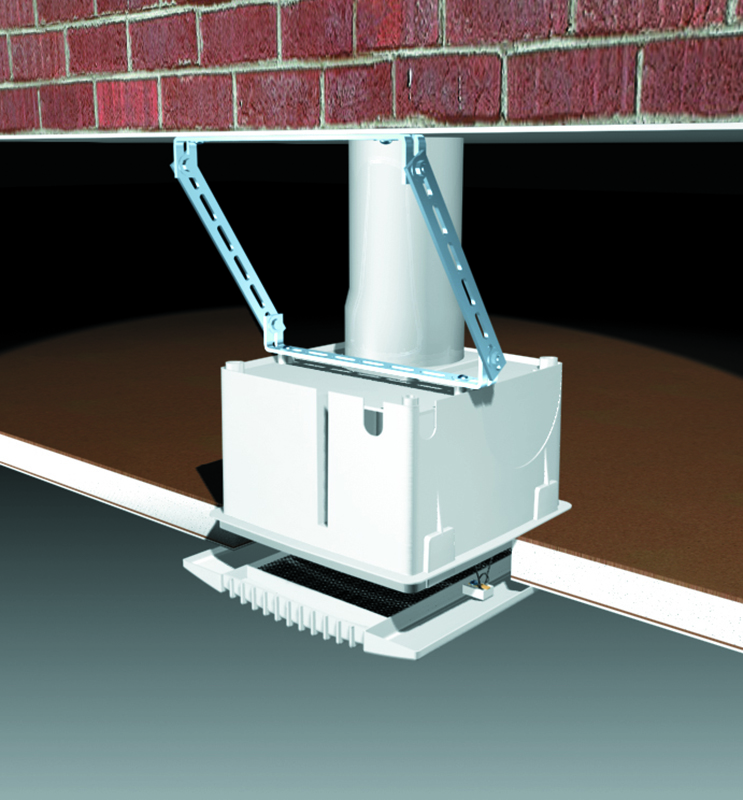

• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.

Read full descriptionClose description

Certifications

CE
Download
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current (A)

0,1
Max absorbed current at Max speed (A)

0,1
Max absorbed current at Min speed (A)

0,05
Max absorbed power (W)

22
Max absorbed power at Max speed (W)

27
Max ambient temperature for continuous operation (°C)

40
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

16
Voltage (V)

220-240
Weight (Kg)

2,9
Airflow at 1st speed (l/s)

15,3
Airflow at 1st speed (m³/h)

55
Max airflow at Max speed (l/s)

32,8
Max airflow at Max speed (m³/h)

118

Max delivery of side outlet at max speed (l/s)

38,9
Max delivery of side outlet at max speed (m³/h)

140
Max delivery of side outlet at min speed (l/s)

18,6
Max delivery of side outlet at min speed (m³/h)

67
Max pressure at Max speed (mmH20)

22
Max pressure at Max speed (Pa)

216
Max pressure at side outlet - max speed (mmH2O)

22
Max pressure at side outlet - min speed (mmH2O)

8
Max pressure at side outlet - min speed (Pa)

78
Max pressure at side outlet (Pa)

216
Max RPM

1130
Min RPM

594
Pressure at 1st speed (mmH20)

8
Pressure at 1st speed (Pa)

78
RPM side air outlet - max speed

829
RPM side air outlet - min speed

450
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

30
Sound pressure at 3m at Max speed Lp [dB (A)]

38

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-5,8
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-19,2
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

1,8
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

133
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

23,5
Sound power LWA [dB(A)]

59
Reference airflow [m3/s]

0,0259
Reference ? pressure [Pa]

88
SPI [W/(m3/h)]

0,23631
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

326
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

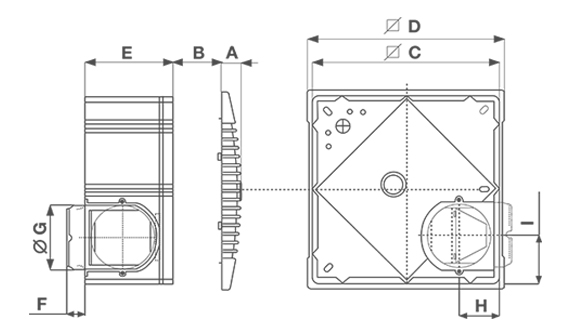

Size A (mm)

28
Size B (mm)

65
Size C (mm)

284
Size D (mm)

300
Size E (mm)

133
Size F (mm)

28,5
Size G (mm)

Ø 97
Size H (mm)

62
Size I (mm)

71,5
