Description

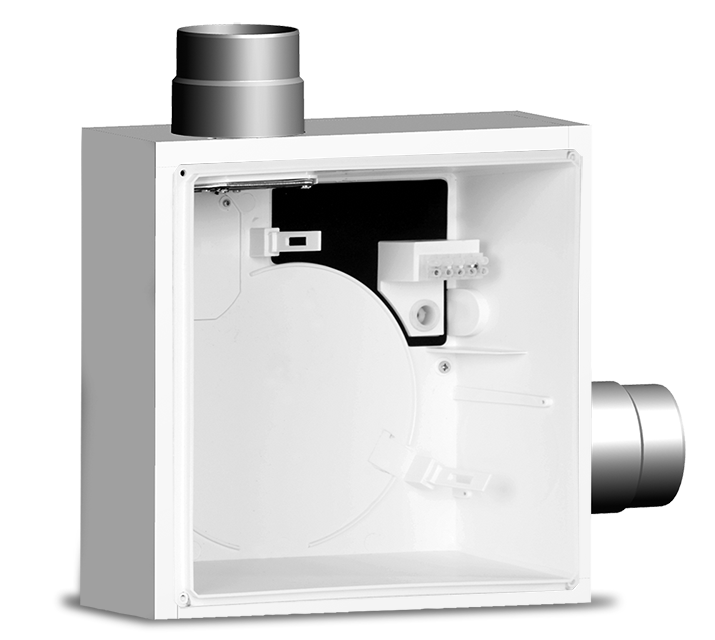

• Refractory fireproof K90 casing for recessed installation and main top side discharge.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
• Square frame to prevent entry of dirt and plaster.
• Stainless steel spigot, on the right side, able to extract air from a second room.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
• Square frame to prevent entry of dirt and plaster.
• Stainless steel spigot, on the right side, able to extract air from a second room.
Certifications
-
DIBt
Technical Data Sheet
-
Nominal diameter (mm)80
-
Weight (Kg)3,07
-

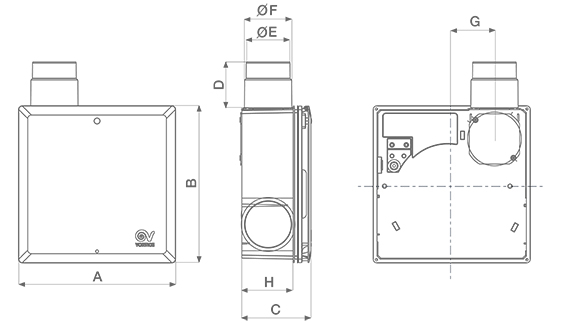

Size A (mm)285
-
Size B (mm)285
-
Size C (mm)131,5
-
Size D (mm)60
-
Size E (mm)Ø 73
-
Size F (mm)Ø 79
-
Size G (mm)71,5
-
Size H (mm)106
-
Size J (mm)52
