MEX 120/5" LL 1S T

Description

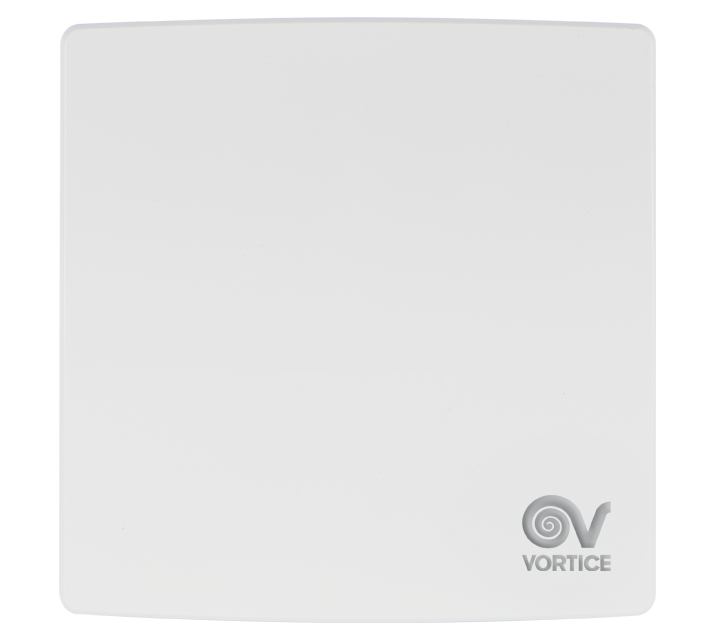

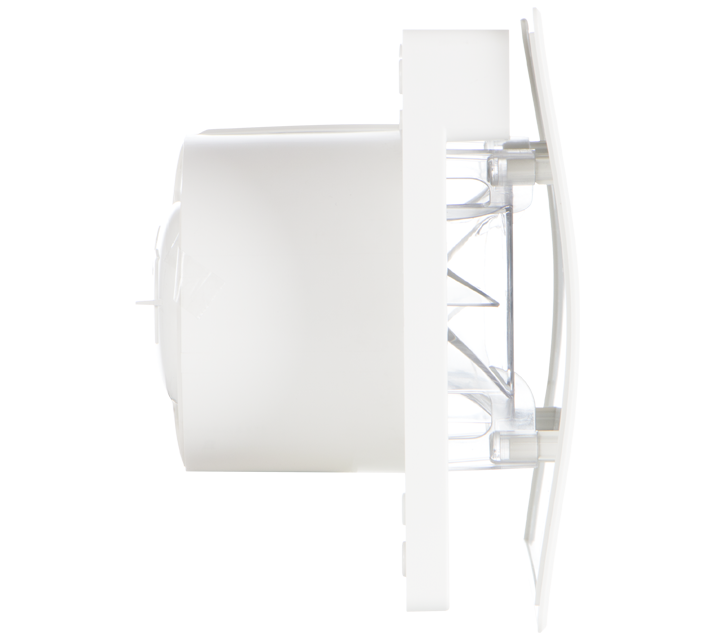

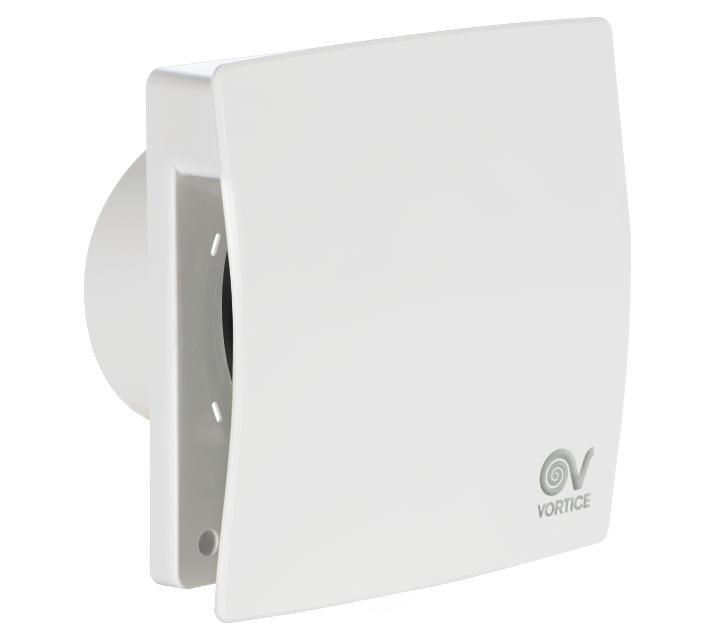

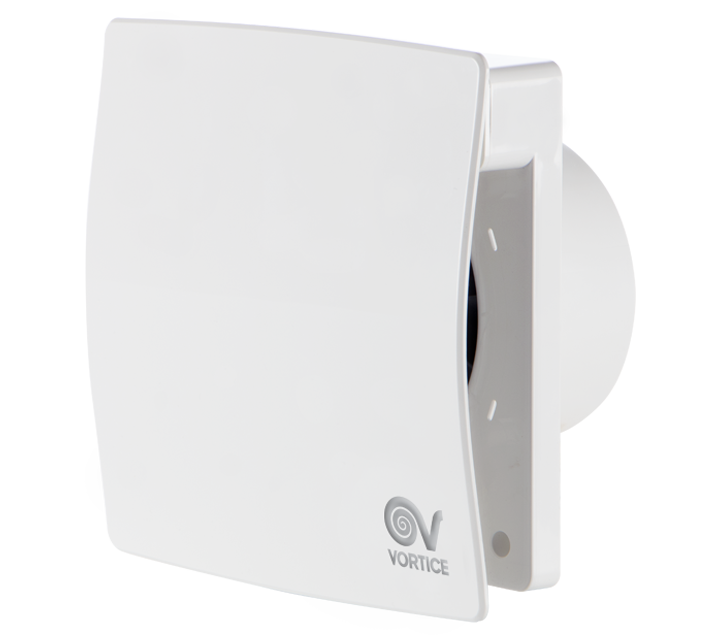

• Housings made of shockproof and UV resistant white ABS.
• Nominal diameter 120 mm.
• AC motor equipped with long-life ball-bearings, mixed-flow impellers made of PP resistant to aggressive substances.
• Maximum air flow 175 m3/h.
• Timer allowing delayed switch-off function; switch-off delay can be set at installation in a range between 3’ and 20’.
• Integrated butterfly back-draught shutter designed to prevent unwanted air inflows when the appliance is switched-off.
• Protection rating IP45, suitable for installation in Zone 1 of bathrooms, as defined by international standard IEC 60364-7.

Read full descriptionClose description

Certifications

CE
Download
EAC
G-Mark
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

45
Max absorbed current at Max speed (A)

0,095
Max absorbed power at Max speed (W)

15
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

120
Voltage (V)

220-240

Weight (Kg)

0,77
Max airflow at Max speed (l/s)

48,6
Max airflow at Max speed (m³/h)

175
Max pressure at Max speed (mmH20)

5
Max pressure at Max speed (Pa)

49,04
Max RPM

2075
Sound power at Min speed LWA [dB(A)]

52,8
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

32,3

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-10,0
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-23,4
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

-2,4
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

168
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

14,1
Sound power LWA [dB(A)]

53
Reference airflow [m3/s]

0,0327
Reference ? pressure [Pa]

19
SPI [W/(m3/h)]

0,11480
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

158
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

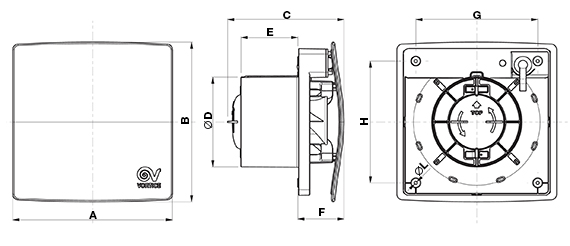

Size A (mm)

193
Size B (mm)

193
Size C (mm)

138
Size D (mm)

Ø 119
Size E (mm)

71
Size F (mm)

53
Size G (mm)

152
Size H (mm)

152
Size L (mm)

Ø 3,5
