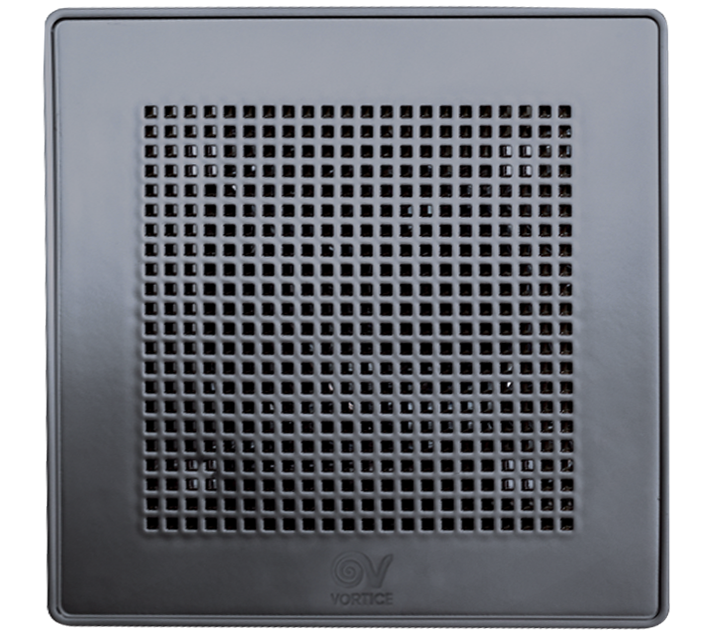

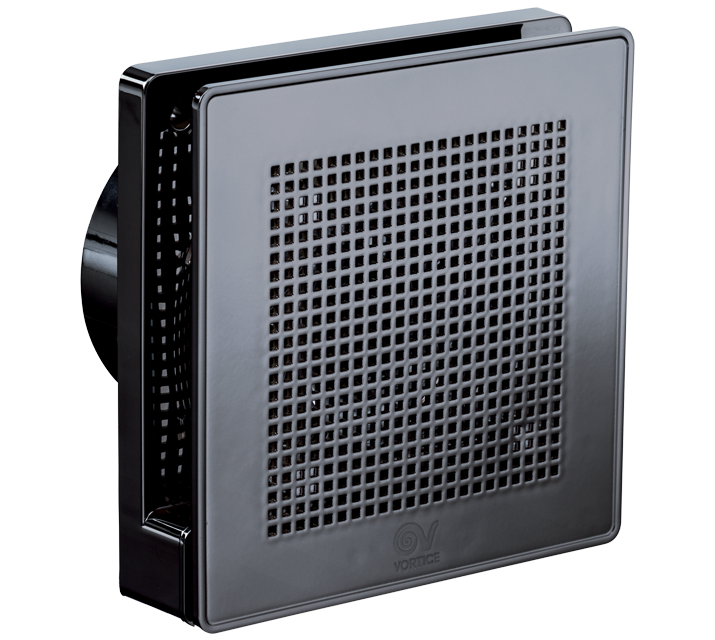

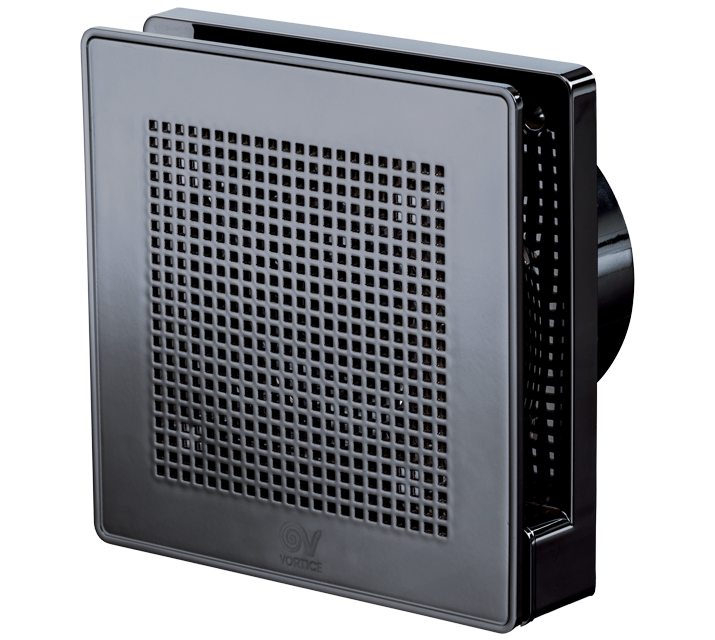

Description
• Material: BLACK GOLD UV resistant plastic (prevents ageing caused by exposure to sunlight), with colouring obtained by way of treatment using nano technologies.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Air flow between 65 m3/h and 95 m3/h.
• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Air flow between 65 m3/h and 95 m3/h.
• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
Certifications
-
Download
CE
-
CCC
-
EAC
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP45
-
Max absorbed current at Max speed (A)0,052
-
Max absorbed current at Min speed (A)0,039
-
Max absorbed power at Max speed (W)9
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)100
-
Power absorbed at 1st speed (W)5
-
Voltage (V)220-240
-
Weight (Kg)0,6
-

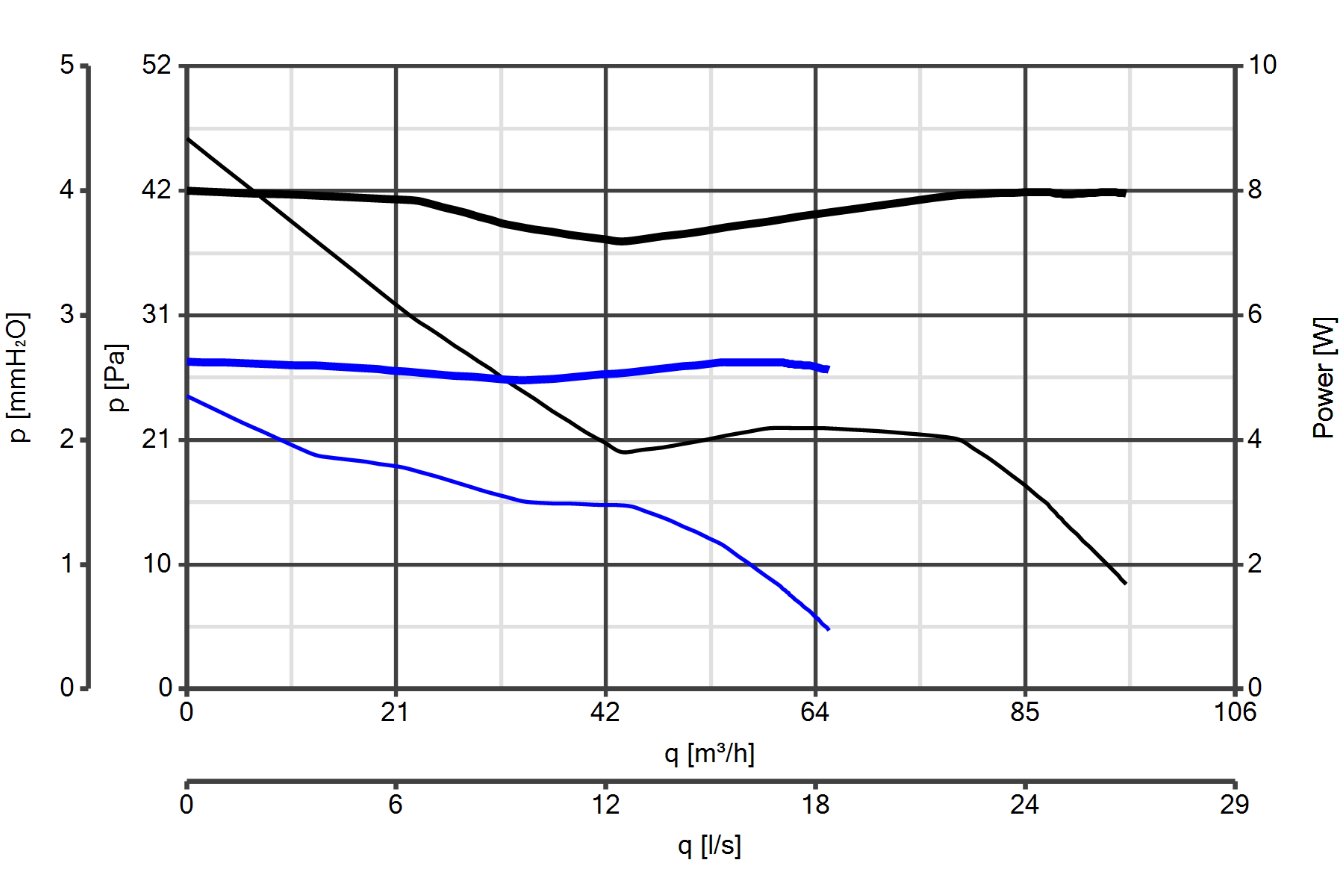

Airflow at 1st speed (l/s)18,1
-
Airflow at 1st speed (m³/h)65
-
Max airflow at Max speed (l/s)26,4
-
Max airflow at Max speed (m³/h)95
-
Max pressure at Max speed (mmH20)4,7
-
Max pressure at Max speed (Pa)46,09
-
Max RPM2240
-
Min RPM1700
-
Pressure at 1st speed (mmH20)2,5
-
Pressure at 1st speed (Pa)24,52
-
Sound power at Min speed LWA [dB(A)]41,3
-
Sound power at Min speed LWA [dB(A)]47,4
-
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]26,9
-
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]20,8
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-9,9
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-23,2
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-2,2
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]93
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]8,1
-
Sound power LWA [dB(A)]68
-
Reference airflow [m3/s]0,0181
-
Reference ? pressure [Pa]22
-
SPI [W/(m3/h)]0,11828
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]163
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

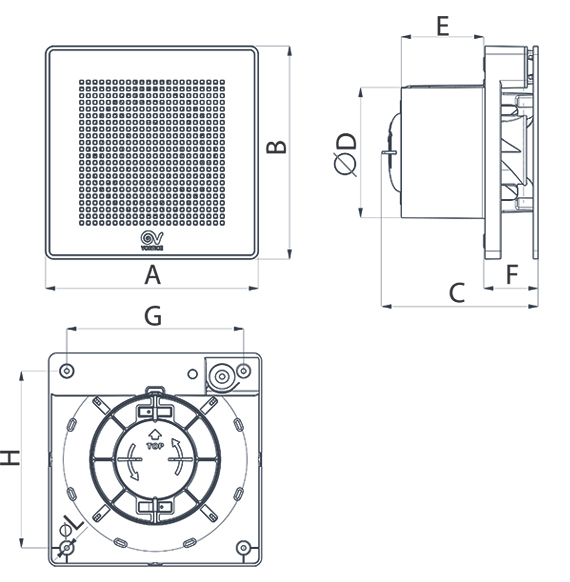

Size A (mm)159
-
Size B (mm)159
-
Size C (mm)116,5
-
Size D (mm)ø 98
-
Size E (mm)61,5
-
Size F (mm)40,5
-
Size G (mm)132
-
Size H (mm)132
-
Size L (mm)ø 3,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
