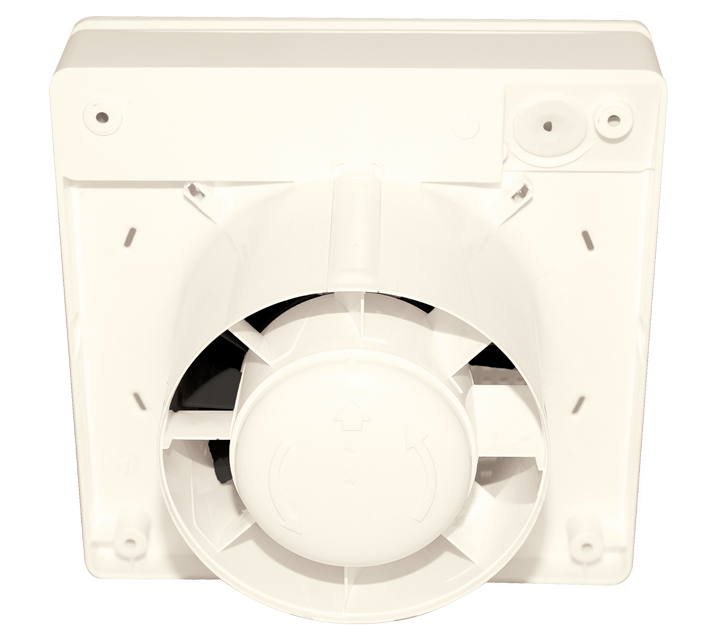

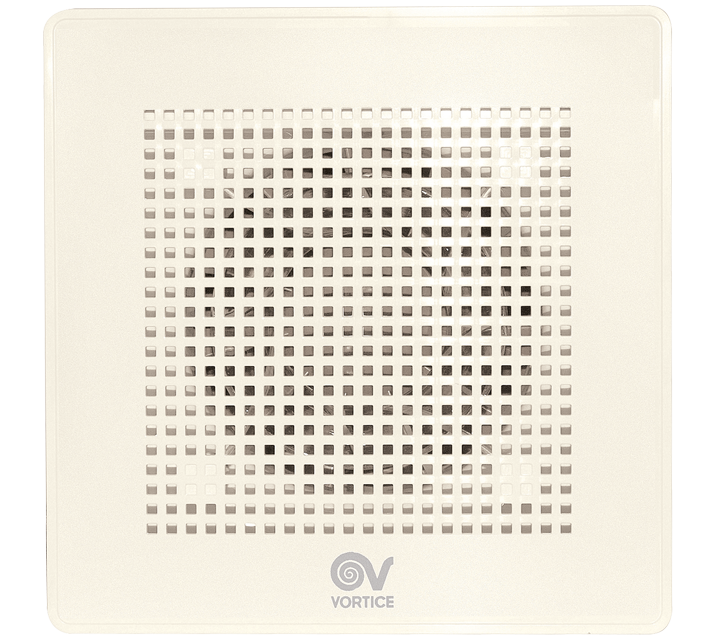

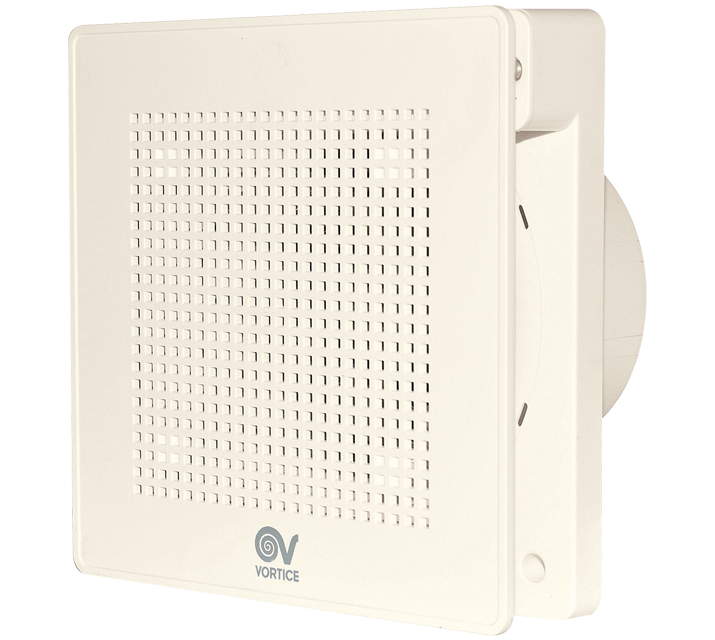

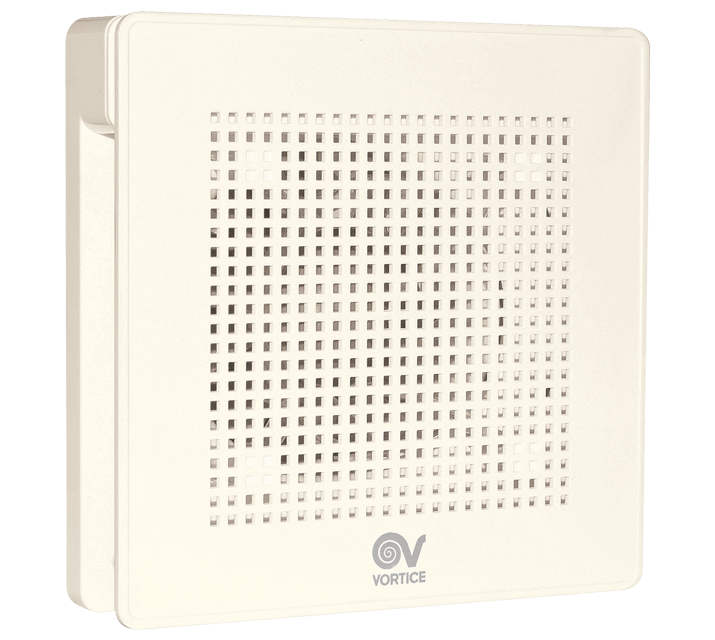

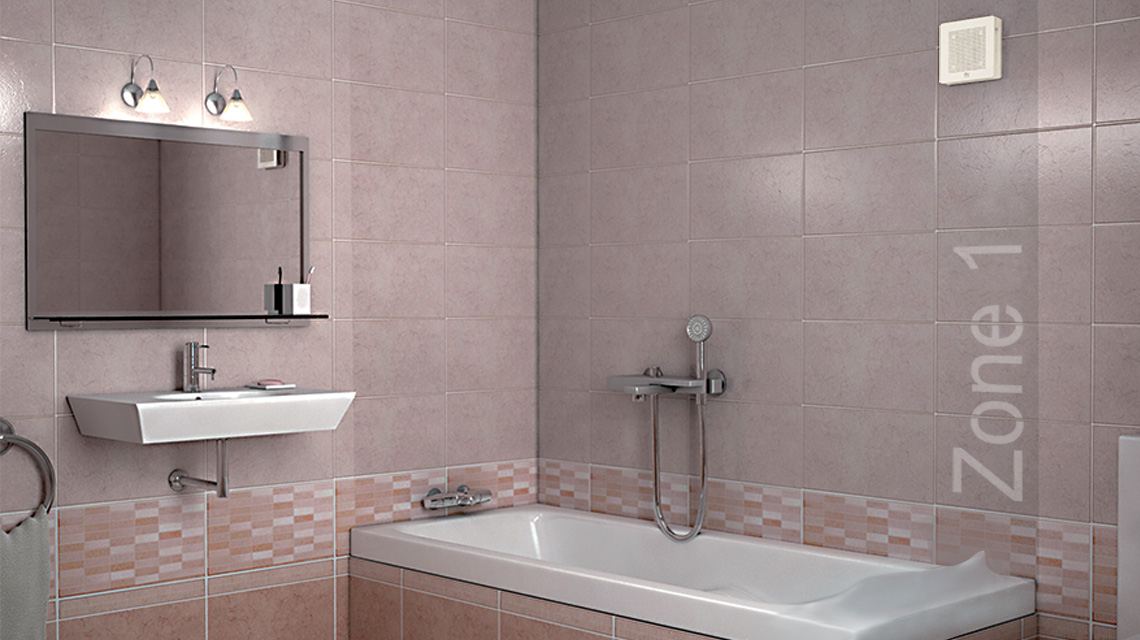

ME 120/5" LL T PIR

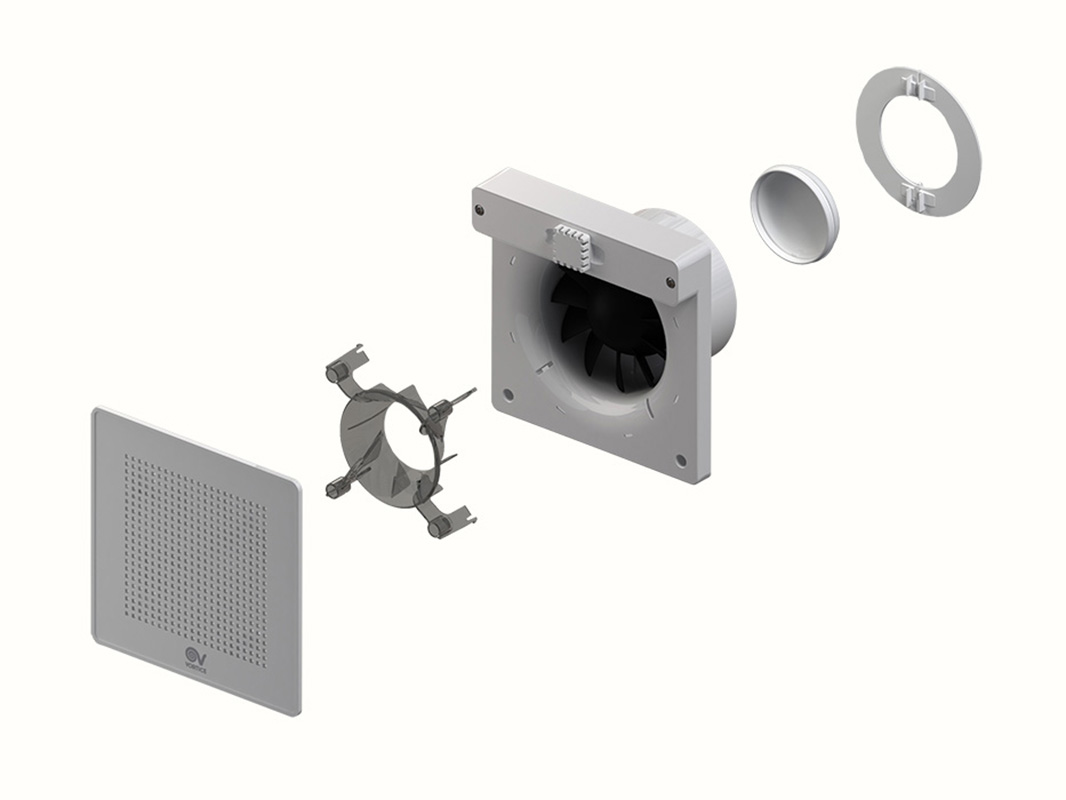

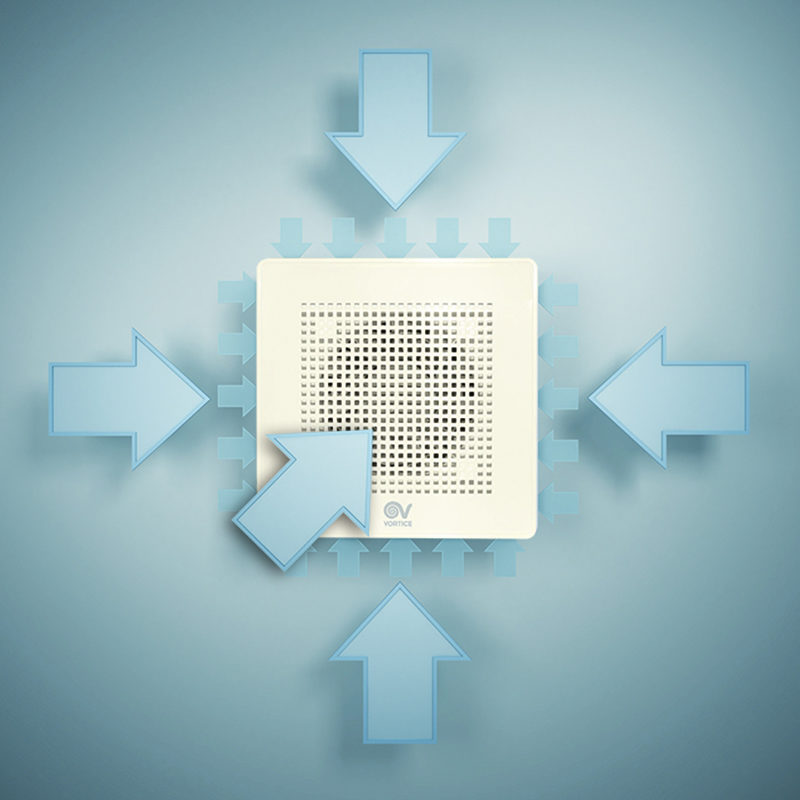

Description

• Material: UV resistant white plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 120 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Air flow between 120 m3/h and 175 m3/h.
• Version with simplified timer, operating at one speed min or max, and PIR presence detector: the appliance is equipped with a pcb incorporating a PIR sensor that will activate the fan automatically on detecting a presence in the room; the pcb also provides a delayed switch-off function. The length of the switch-off delay, as well as the only operating speed, Vmin or Vmax, can be set during installation.

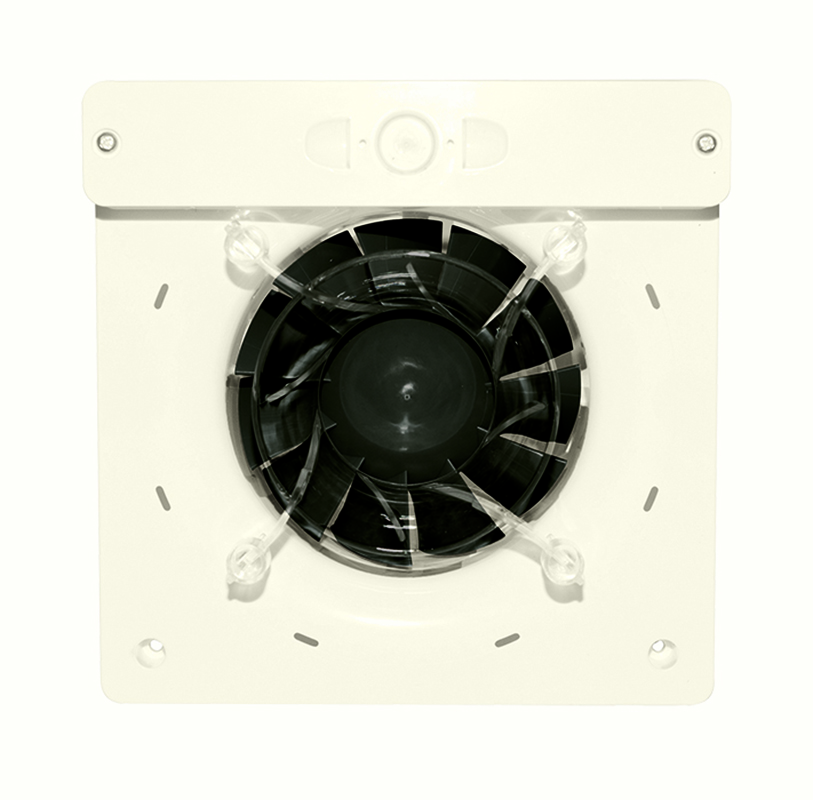

• Equipped with non-return damper preventing unwanted backdraught when the fan is off.

Read full descriptionClose description

Certifications

CE
Download
EAC
G-Mark
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

45
Max absorbed current at Max speed (A)

0,080
Max absorbed current at Min speed (A)

0,060
Max absorbed power at Max speed (W)

15
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

120
Power absorbed at 1st speed (W)

10
Voltage (V)

220-240
Weight (Kg)

0,77
Airflow at 1st speed (l/s)

33,3
Airflow at 1st speed (m³/h)

120

Max airflow at Max speed (l/s)

48,6
Max airflow at Max speed (m³/h)

175
Max pressure at Max speed (mmH20)

5
Max pressure at Max speed (Pa)

49,04
Max RPM

2070
Min RPM

1490
Pressure at 1st speed (mmH20)

2,3
Pressure at 1st speed (Pa)

22,56
Sound power at Min speed LWA [dB(A)]

44,5
Sound power at Min speed LWA [dB(A)]

52,8
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

32,3
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

24,0

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-9,9
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-23,3
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

-2,3
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

168
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

14,5
Sound power LWA [dB(A)]

53
Reference airflow [m3/s]

0,0327
Reference ? pressure [Pa]

18
SPI [W/(m3/h)]

0,11735
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

0,27
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

162
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

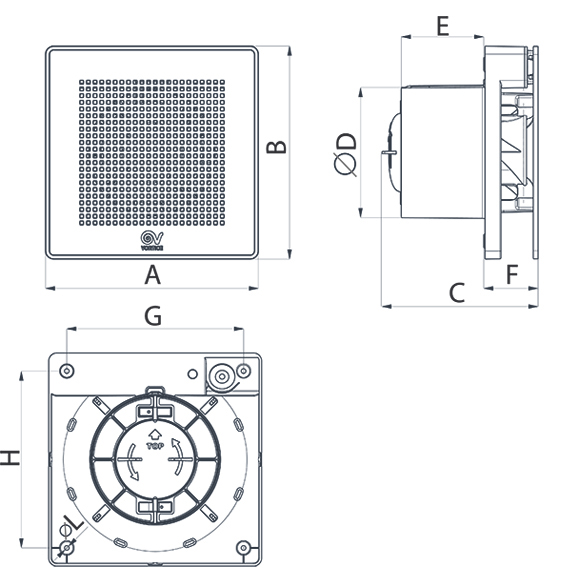

Size A (mm)

179
Size B (mm)

179
Size C (mm)

128,5
Size D (mm)

ø 118
Size E (mm)

71
Size F (mm)

42,5
Size G (mm)

152
Size H (mm)

152
Size L (mm)

ø 3,5
Size M (mm)

44
