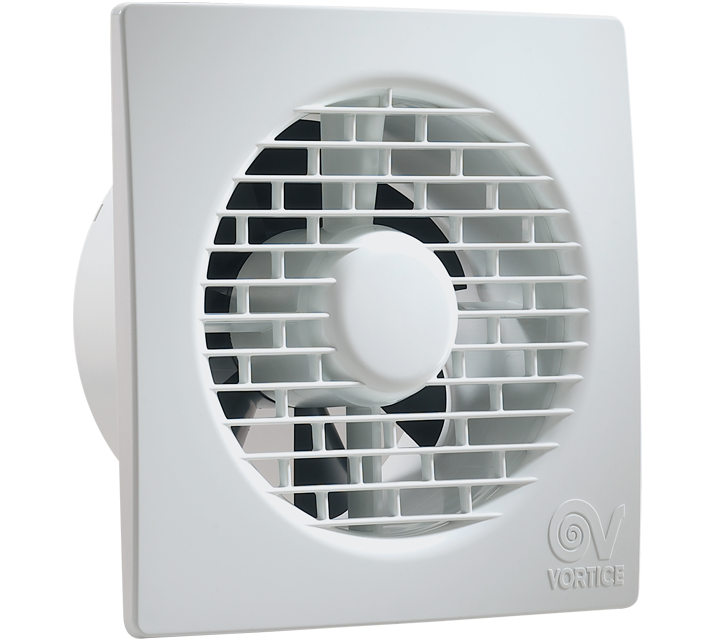

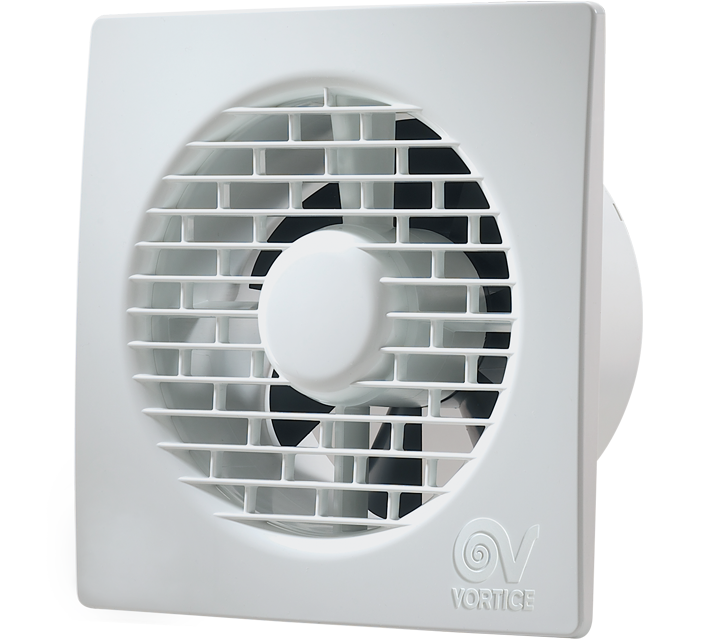

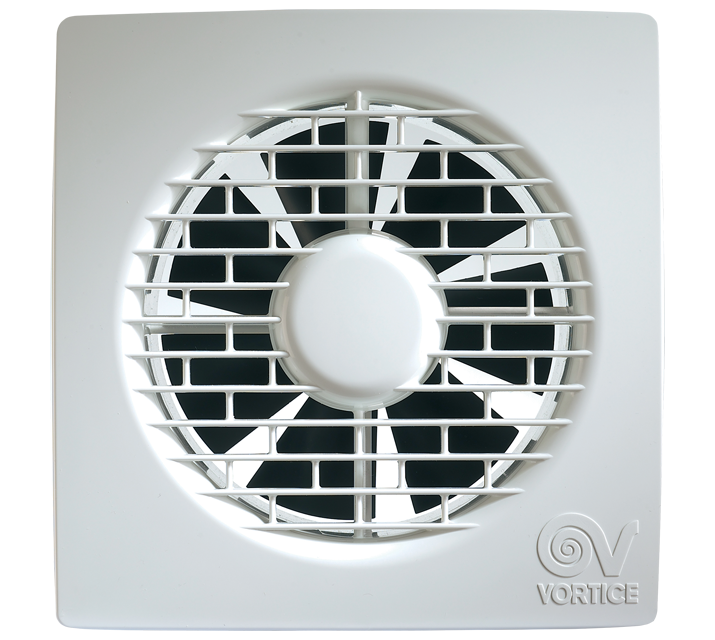

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 85 m3/h.
• Electronic pcb with humidistat function piloted by RH sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).

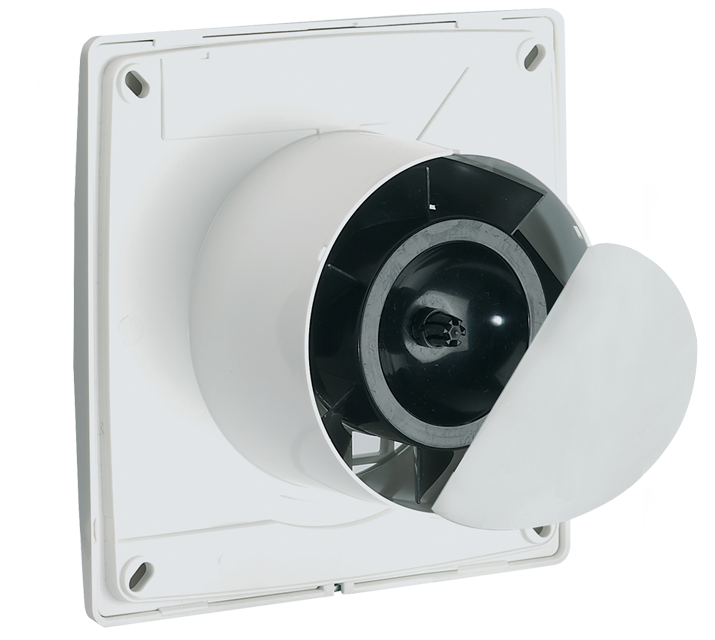

• Non-return damper fitted to outlet port.
• Vortice speed controller.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 85 m3/h.
• Electronic pcb with humidistat function piloted by RH sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
• Non-return damper fitted to outlet port.
• Vortice speed controller.
Certifications
-
Download
CE
-
EAC
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,09
-
Max absorbed power (W)15
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)100
-
Voltage (V)220-240
-
Weight (Kg)0,52
-
Max airflow (l/s)24
-
Max airflow (m³/h)85
-
Max pressure (mmH2O)3
-
Max pressure (Pa)29
-
RPM2400
-
Sound pressure Lp [dB (A)] at 3 m31
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-5,4
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-18,7
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]2,3
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]78
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]14,1
-
Sound power LWA [dB(A)]52
-
Reference airflow [m3/s]0,0152
-
Reference ? pressure [Pa]17
-
SPI [W/(m3/h)]0,24908
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]343
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

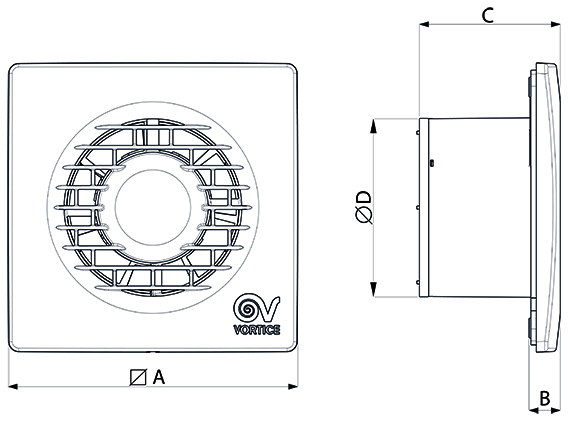

Size A (mm)159
-
Size B (mm)17
-
Size C (mm)77
-
Size D (mm)98
