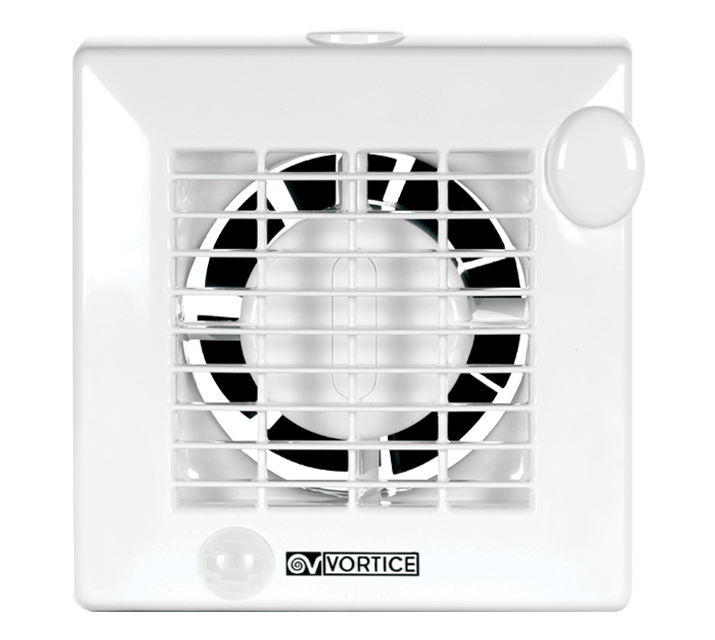

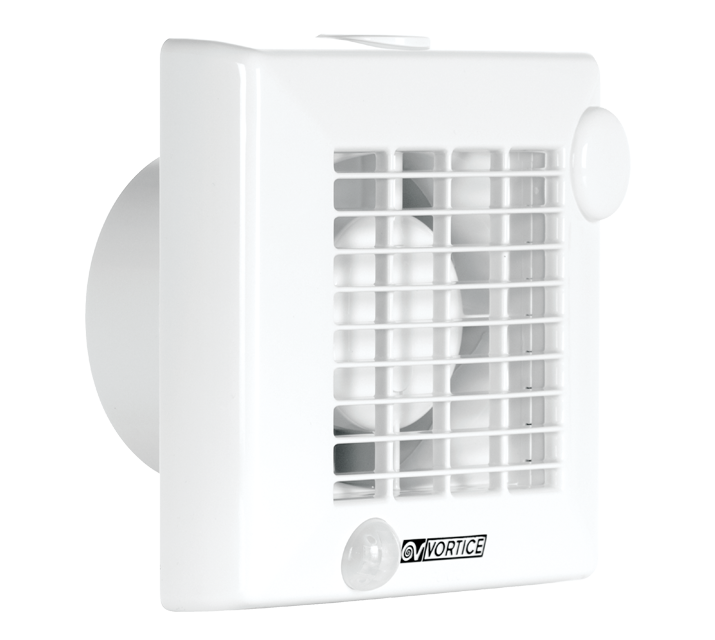

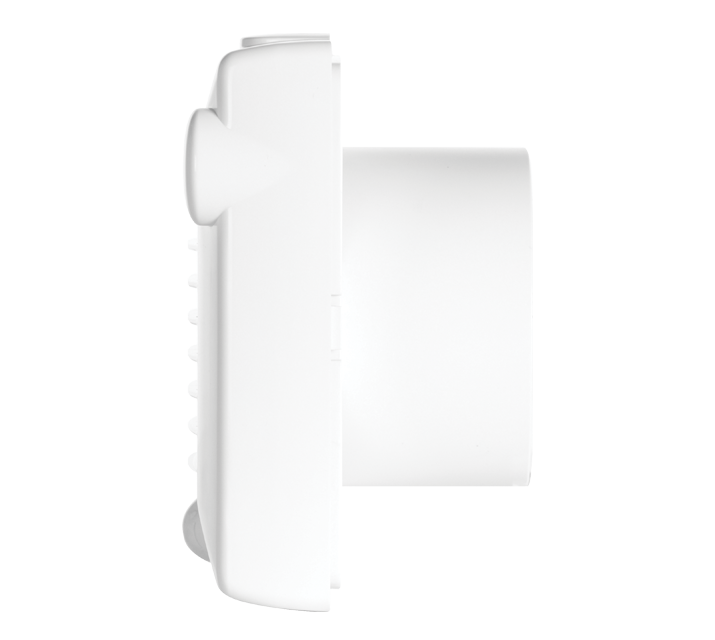

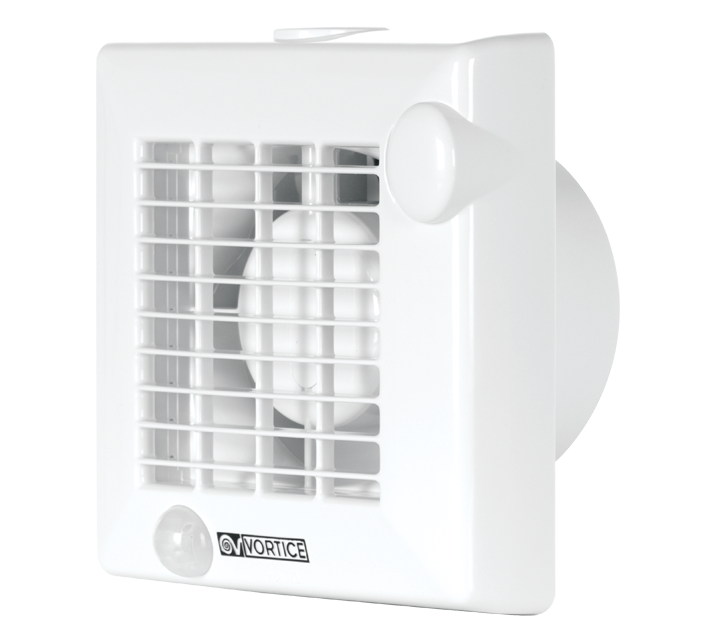

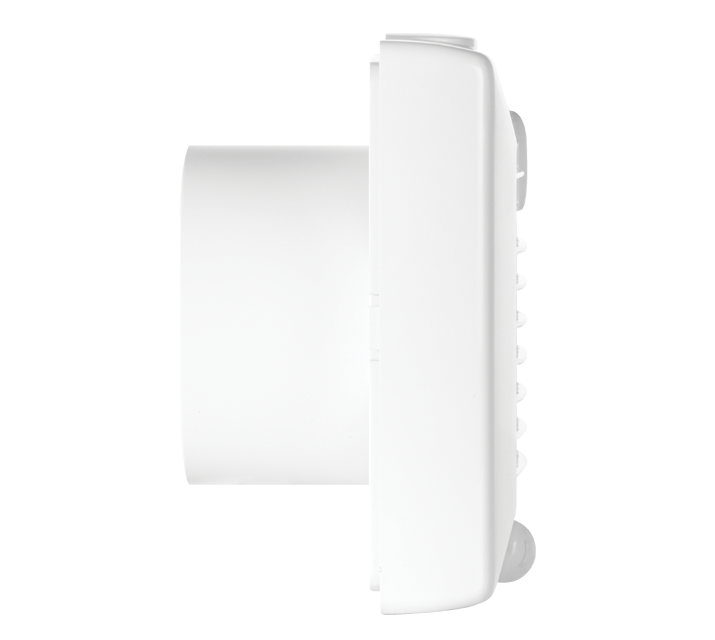

M 150/6" A PIR LL

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.

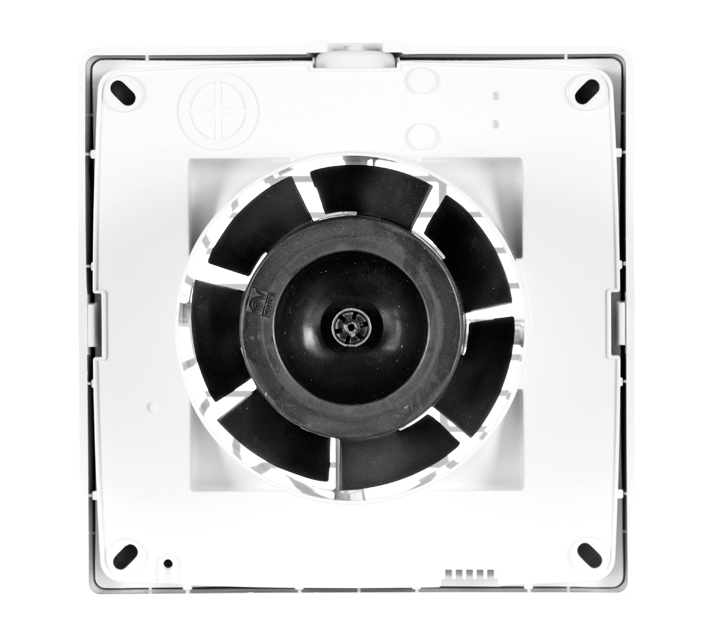

• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Equipped with system by which the louvres of the grille are opened and closed automatically.

Read full descriptionClose description

Certifications

CE
Download
EAC
G-Mark
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current (A)

0,15
Max absorbed power (W)

29
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

160
Ø Discharge hole (mm)

156

Voltage (V)

220-240
Weight (Kg)

1,1
Max airflow (l/s)

93,1
Max airflow (m³/h)

335
Max pressure (mmH2O)

6
Max pressure (Pa)

59
RPM

2100
Sound pressure Lp [dB (A)] at 3 m

46

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-9,7
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-23,0
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

-2,0
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

324
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

27,8
Sound power LWA [dB(A)]

67
Reference airflow [m3/s]

0,0630
Reference ? pressure [Pa]

28
SPI [W/(m3/h)]

0,12434
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

171
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632
